LNA
10.7~12.75GHz, Gain60dB, Noise figure1dB, Waveguide
- DLNA8-10.7-12.75G-2036
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
High gain, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10.7 | ~ | 12.75 | GHz |
| Gain | 60 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 1 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | Waveguide port input, SMA-K output |
| Connector material | Stainless steel |
| Waveguide port | BJ120 |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -40~+85℃ Design assurance |
| Other | Feed interface SMA-K |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | Gain | P-1dB | Noise |
| 10.7 | 1.92 | 1.4 | 62.14 | 14.68 | 0.68 |
| 10.85 | 1.97 | 1.44 | 61.62 | 14.66 | 0.72 |
| 10.99 | 1.98 | 1.51 | 61.5 | 14.64 | 0.86 |
| 11.14 | 1.97 | 1.58 | 61.31 | 14.66 | 0.95 |
| 11.29 | 1.89 | 1.71 | 61.49 | 14.68 | 0.9 |
| 11.43 | 1.78 | 1.81 | 61.97 | 14.8 | 0.87 |
| 11.58 | 1.67 | 1.68 | 61.97 | 15.07 | 0.81 |
| 11.73 | 1.61 | 1.57 | 61.7 | 15 | 0.89 |
| 11.87 | 1.6 | 1.46 | 61.35 | 14.98 | 0.98 |
| 12.02 | 1.59 | 1.39 | 61.17 | 15.2 | 1.02 |
| 12.16 | 1.58 | 1.41 | 60.94 | 15.46 | 1 |
| 12.31 | 1.53 | 1.41 | 60.69 | 15.3 | 0.97 |
| 12.46 | 1.47 | 1.5 | 60.59 | 15.47 | 0.96 |
| 12.6 | 1.39 | 1.65 | 60.84 | 15.5 | 1 |
| 12.75 | 1.29 | 1.75 | 61.25 | 15.46 | 1.05 |

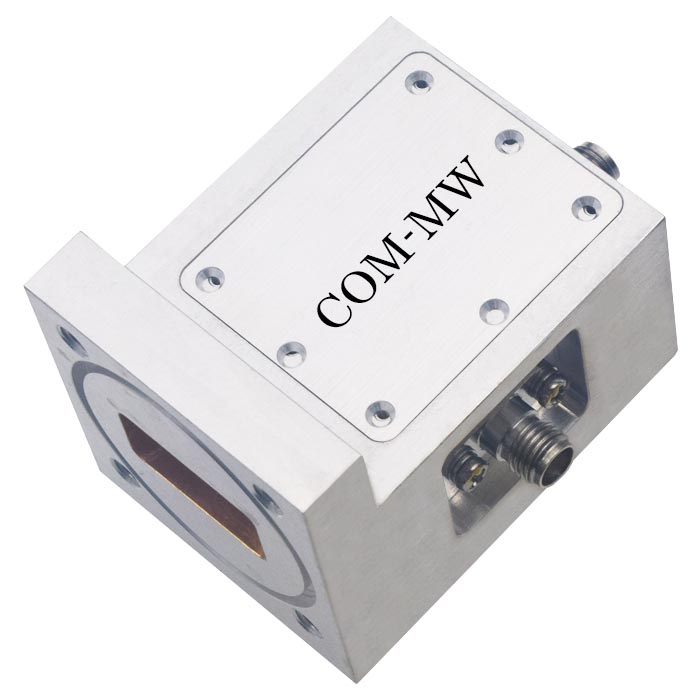

Reference picture

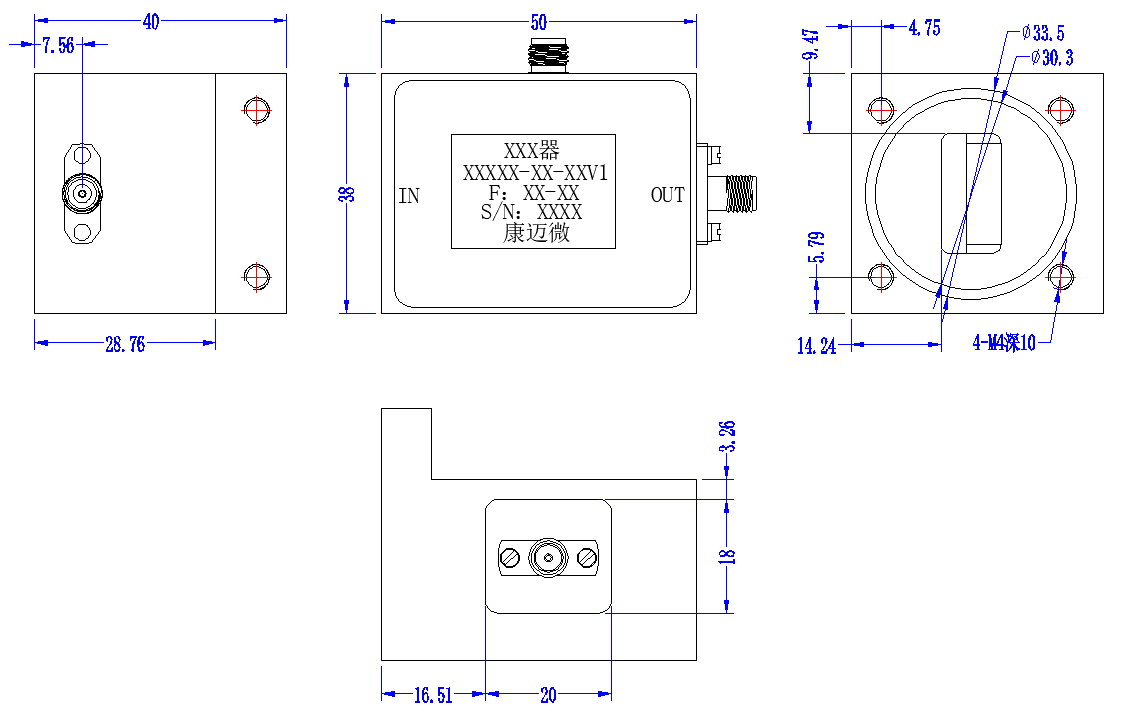

Configuration(mm)

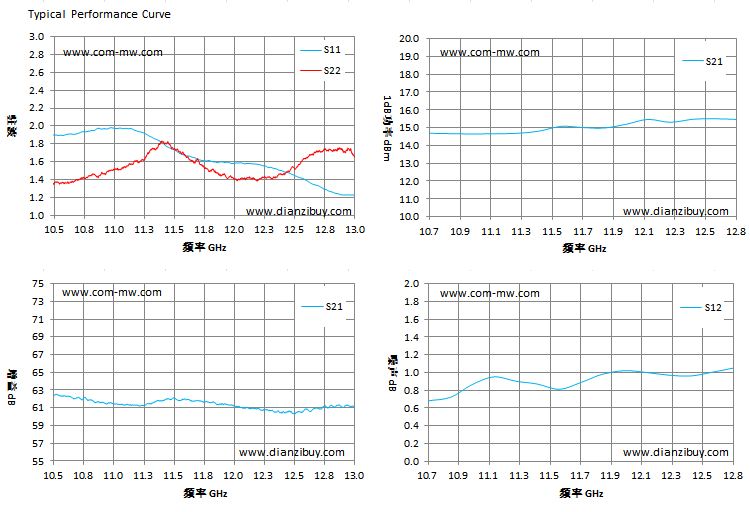

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
