LNA
- DLNA8-30-8000-9203
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 8000 | MHz |
| Gain | 36 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3 | 3.5 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 12 | dBm |
Product Application
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -20~+40℃ Design assurance |
| Other | If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |
Instructions for use
| 1 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
| 2 | Power supply method 2 | 220V power adapter for power supply, DC5.1 * 2.1/2.5mm plug |
| 3 | Surface color | Anodizing treatment (blue) |
| 4 | Shell Material | Shell aluminum material |
| 5 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 6 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
Parts list
| 1 | 220 power cord | 1 |
| 2 | 220V input power adapter | 1 |

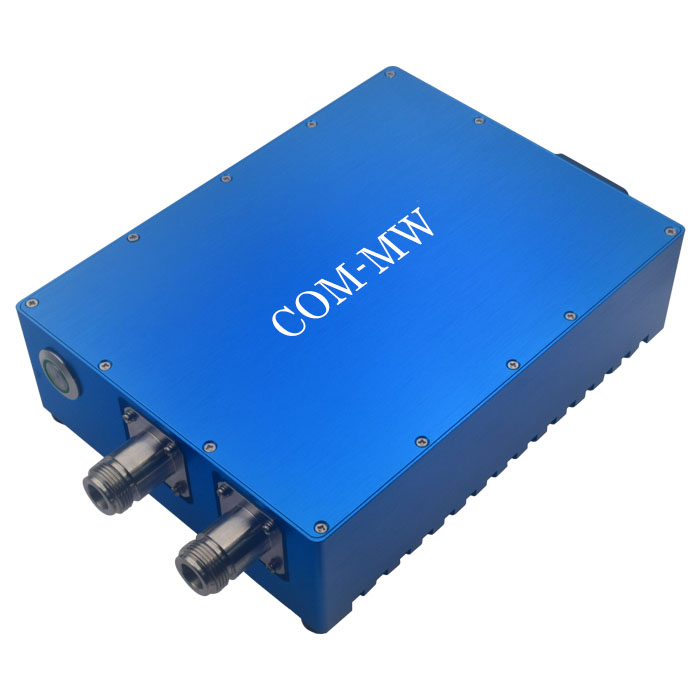

Reference picture

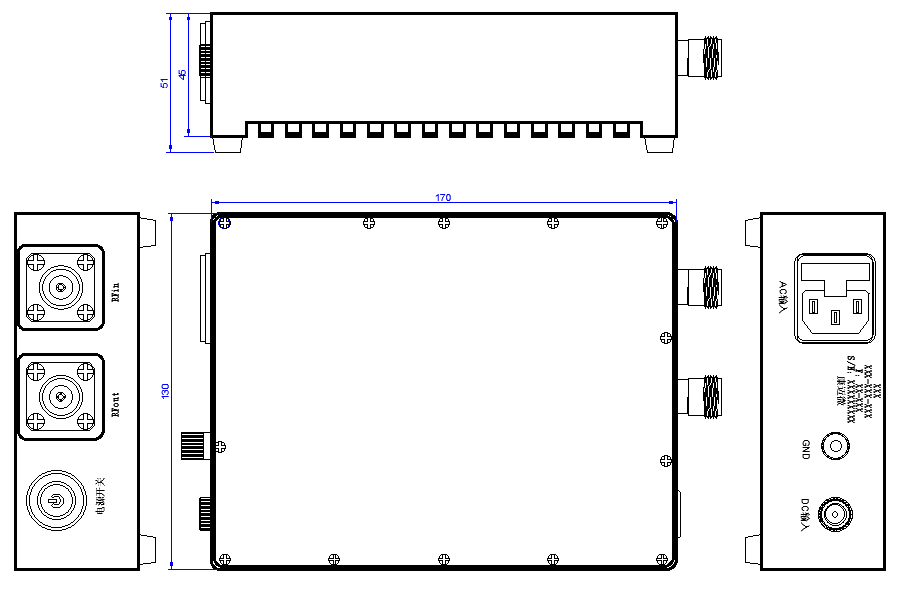

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
