LNA
20~24GHz, Gain30dB, Noise figure3dB, P-1dB8dBm, 2.92
- DLNA8-20-24G-3788
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 24 | GHz |
| Gain | 30 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 8 | dBm |
Other parameters
| Connector | 2.92-F&waveguide port |
| Connector material | Stainless steel |
| Waveguide port | BJ220 |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 250mA |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | 供电接头SMA-50K；防护等级IP65 |

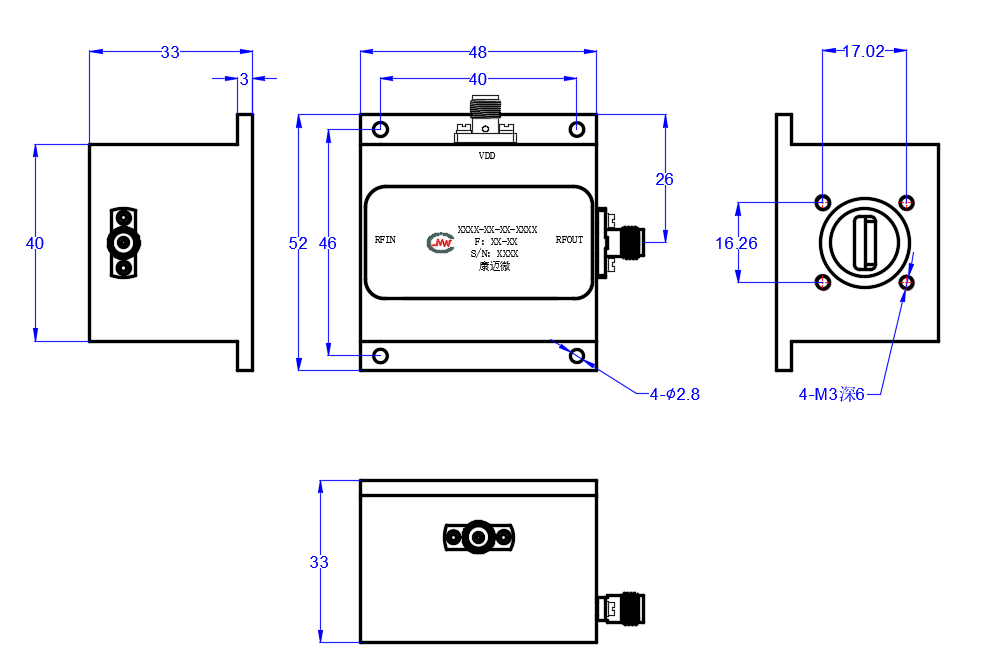

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
