Power amplifier
20~1000MHz, Gain45dB, Psat40dBm, SMA
- DPA8-20-1000-3342
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 1000 | MHz |
| Gain | 45 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| Psat | 40 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 15 | dBc | ||
| Max input power | 10 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 2000mA |
| Operation Temp. | -40~+70℃ Design assurance |
J30J-9ZKP Pin Definition
| No. | definition | Note |
| 1 | TTL level, enable | Low level PA off, high level PA on |
| 2,3,4,5 | +28V | |
| 6,7,8,9 | GND |
Typical test data
| Frequency MHz | S11 VSWR | S21 Gain | S21 output power | Ids saturation current dB |
| 20 | 1.19 | 47.56 | 38.2 | 1.23 |
| 50 | 1.18 | 51.48 | 39.9 | 0.85 |
| 100 | 1.20 | 52.95 | 40.6 | 0.86 |
| 200 | 1.21 | 51.63 | 41.5 | 1.23 |
| 300 | 1.18 | 49.46 | 41.6 | 1.37 |
| 400 | 1.08 | 47.91 | 42.23 | 1.89 |
| 500 | 1.06 | 47.51 | 43.07 | 2.13 |
| 600 | 1.31 | 48.13 | 43.54 | 2.08 |
| 700 | 1.63 | 48.9 | 44.3 | 1.94 |
| 800 | 1.84 | 50.48 | 43.11 | 1.6 |
| 900 | 1.60 | 51.12 | 42.3 | 1.14 |
| 1000 | 1.40 | 48.45 | 39.8 | 1.43 |

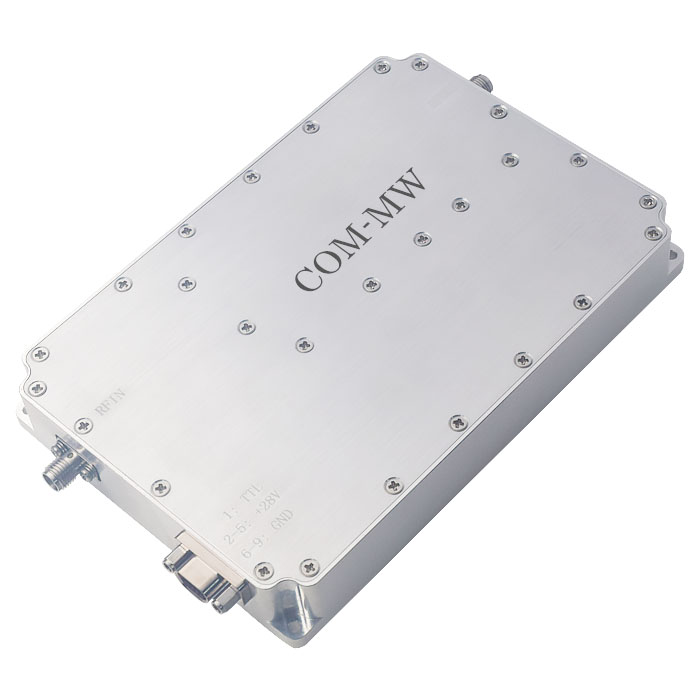

Reference picture

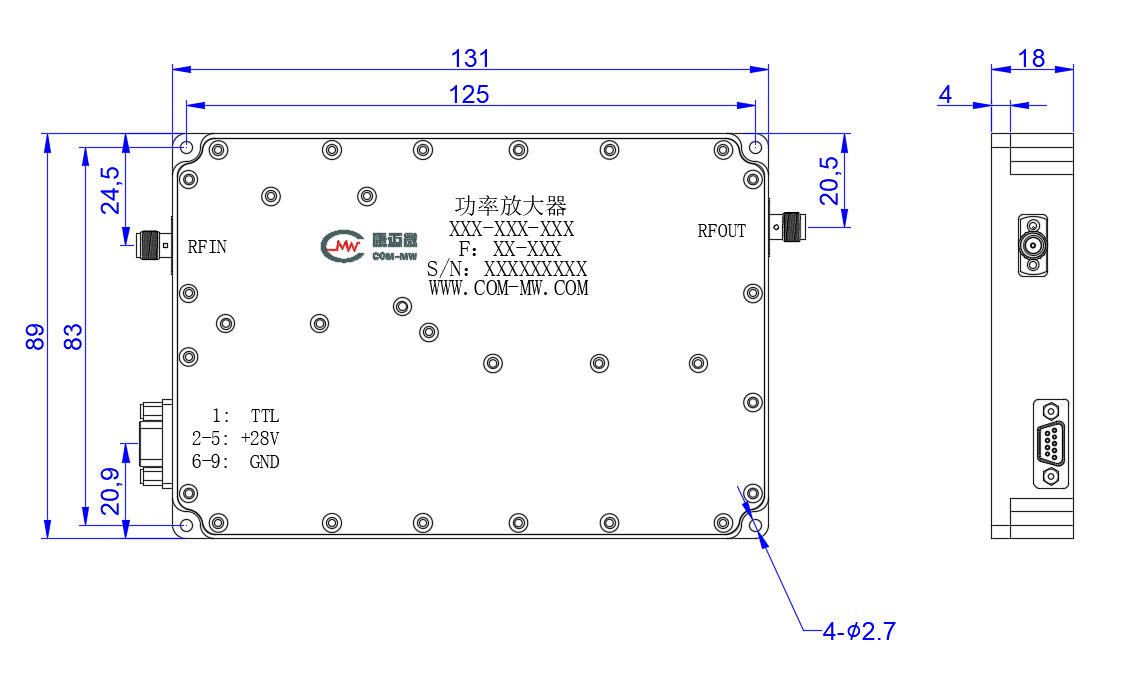

Outline structure diagram

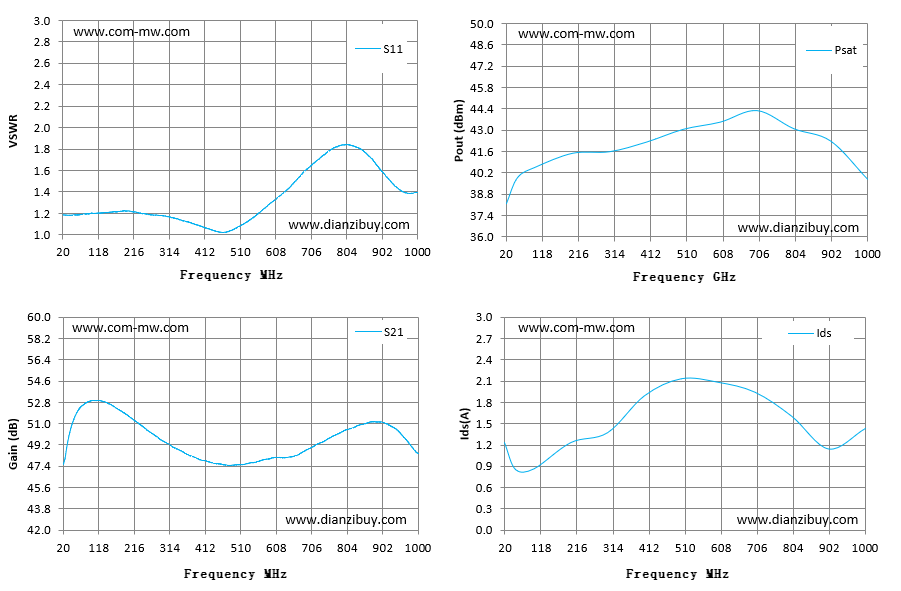

Typical test curve
