Switch

DC~18000MHz, SP8T, programmed switch, SMA, RJ-45, RS-232, GPIB control

  • DSW9-8R0-18G-2035
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, high-power.

The switching life of the switch is greater than 1 million cycles.

Touch screen display, supporting /uploads/kmw-media/dsw9-8r0-18g-2035/manual/DSW9-8R0-18G-2035@2025-07-20-10-21-19.pdf channel switching.

Standard 19 inch chassis.

Tech specifications

ParametersMinTypicalMaxUnits
FrequencyDC~18000MHz
IL0.81.5dB
Isolation6070dB
VSWR1.5

Other parameters

Switch waySP8T
Switching characteristicMechanical reflective programmable switch
Switch time15ms
ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
Power Capacity80W@3GHz；60W@6GHz；20W@18GHz
Working voltage+220V
Operation Temp.-30~+70℃ Design assurance
Storage Temp.-40~+85℃ Design assurance
Quality GradeIndustrial grade
OtherRJ-45, RS-232, GPIB control

Port Definition

Common portCOM
Branching port1，2，3，4，5，6，7，8

Typical test data

Frequency(GHz)S00 VSWRS11 VSWRS01 IL dBS12 ISO dBS04 Phase
0.011.011.01-0.01-73.160.01
3.291.081.07-0.33-81.720.12
6.571.151.11-0.46-81.690.3
9.861.21.21-0.54-81.430.38
13.141.091.06-0.76-81.720.5
16.431.231.57-0.96-75.730.44
18.071.171.2-1.23-72.360.66
21.361.61.88-1.89-68.280.76
22.42.582.89-2.45-67.390.96

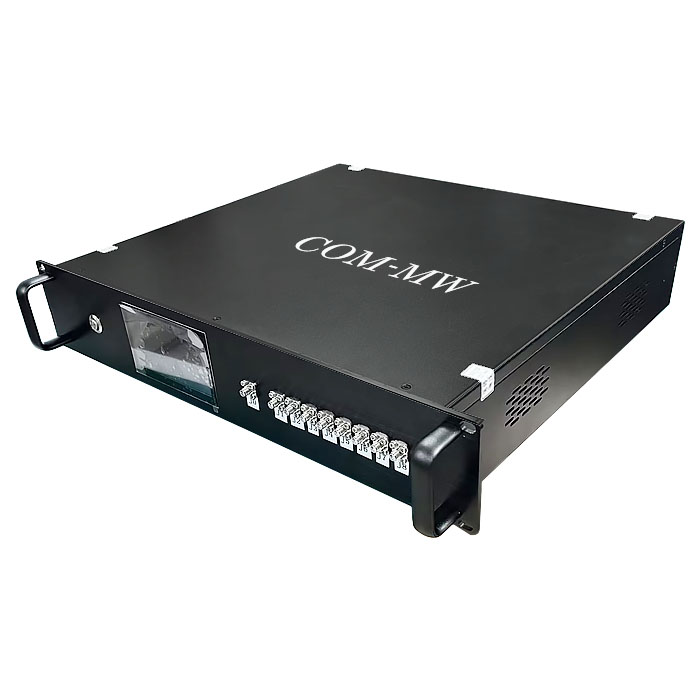

Reference picture

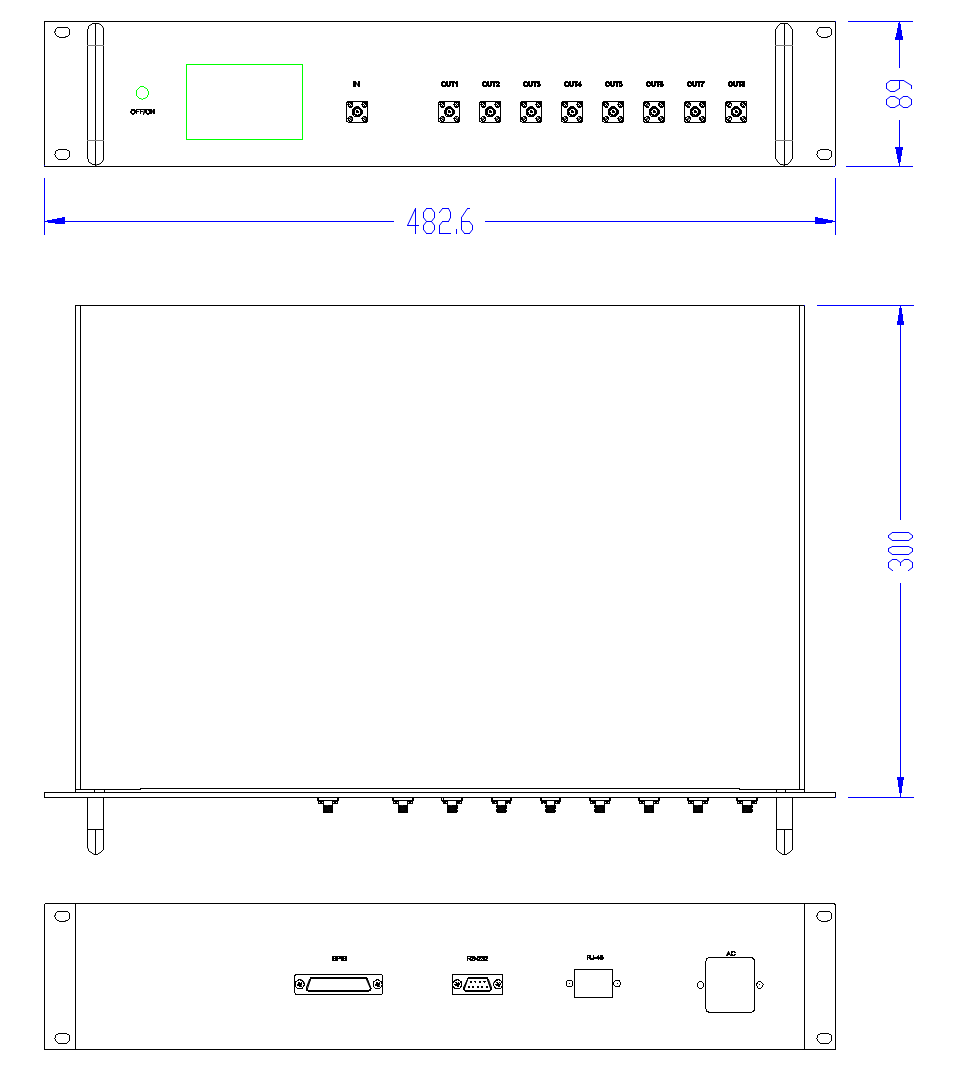

Configuration(mm)

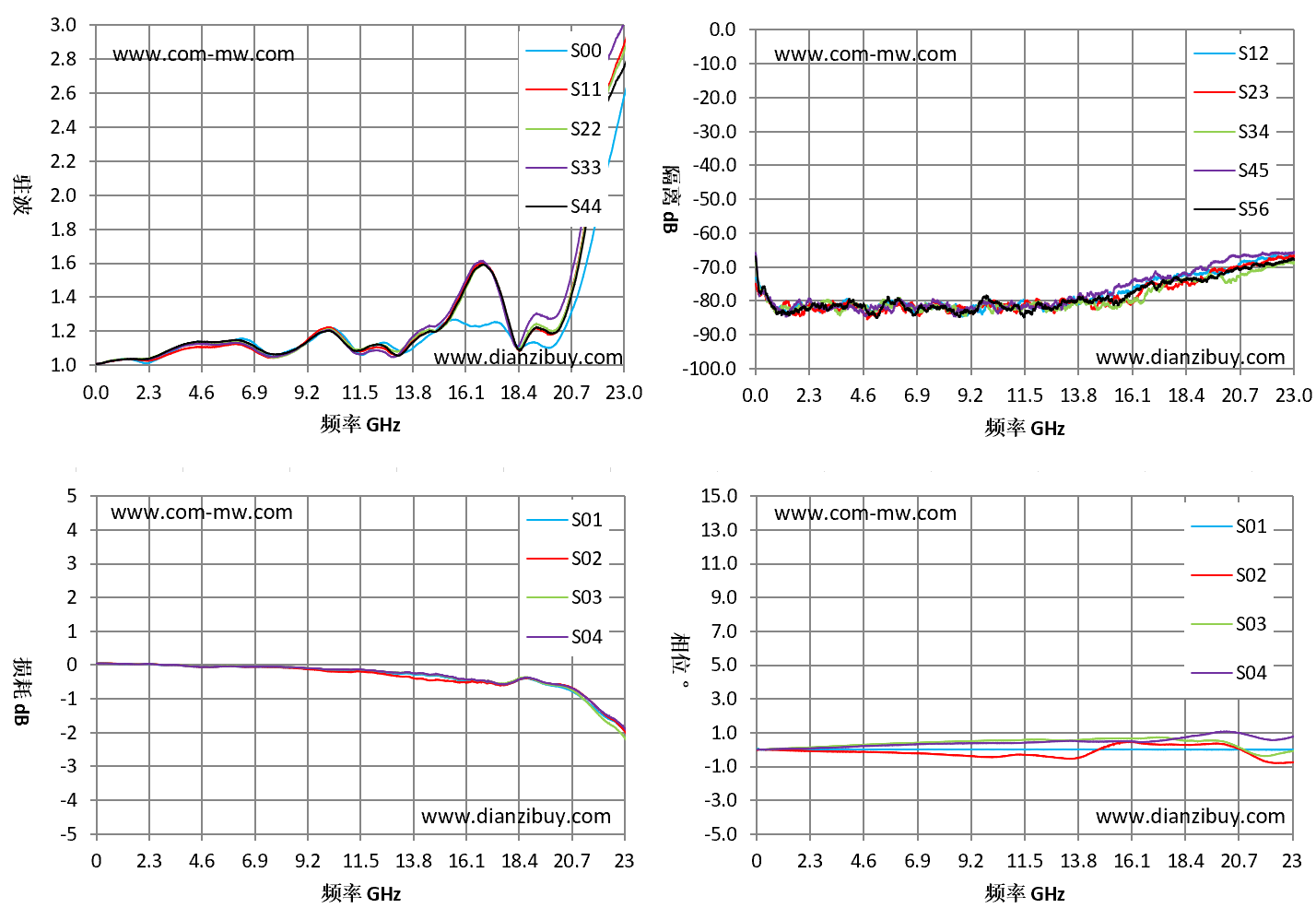

Typical test curve

Note

1Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2If the temperature is higher than 125℃, consult with us before ordering.
