LNA

0.009~3000MHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA

Model:DLNA8-0.009-3000-3403
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.009	~	3000	MHz
Gain		30		dB
Gain flatness		3	5	dB
Noise figure			3	dB
VSWR			2
P-1dB		15		dBm
Psat		17		dBm
IP3		26		dBm

Other parameters

Connector	SMA-F Detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+12V
Working current	300mA
Reverse isolation	43dB
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency（ GHz）	S11 VSWR	S22 VSWR	Noise dB	Gain dB	P-1dB
0.001	1.35	1.59	2.43	33.7	15.86
0.1	1.29	1.56	2.2	33.51	15.83
0.2	1.27	1.54	2.23	33.4	16.05
0.4	1.25	1.51	2.32	33.21	16.26
0.6	1.29	1.49	2.3	33.08	16.54
0.8	1.4	1.5	2.29	33.09	16.77
1	1.52	1.5	2.51	33.23	16.84
1.2	1.64	1.43	2.61	33.35	16.9
1.4	1.69	1.34	2.57	33.35	16.95
1.6	1.66	1.3	2.44	33.26	16.89
1.8	1.54	1.33	2.52	33.15	16.55
2	1.34	1.39	2.71	32.98	16.48
2.2	1.12	1.43	2.82	32.78	16.1
2.4	1.1	1.44	2.75	32.55	16.1
2.6	1.34	1.46	2.81	32.21	15.39
2.8	1.6	1.48	2.93	31.85	14.58
3	1.75	1.49	2.97	31.4	13.69

Reference picture

Configuration(mm)

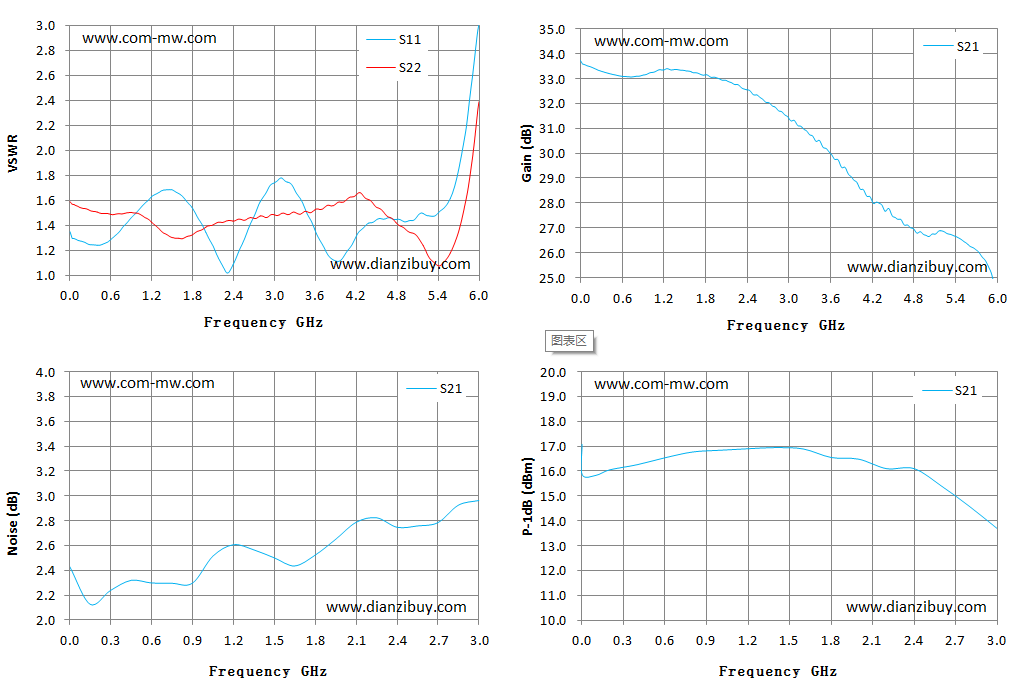

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.
