LNA
2200~2400MHz, Gain30dB, SMA, Automatic gain control
- DLNA8-2200-2400-3501
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
/
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2200 | ~ | 2400 | MHz |
| Gain | 30 | dB | ||
| AGC Control Range | 30 | dB | ||
| AGC stable amplitude output power | 3 | 5 | 7 | dBm |
| Input VSWR | 1.8 | |||
| Output VSWR | 1.5 |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 700mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Power supply interface | J30J-9ZKP |
| Other | Automatic gain control |

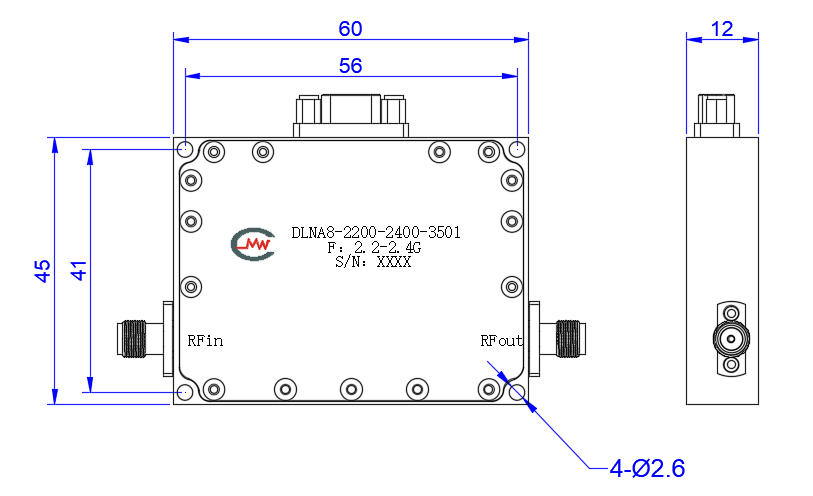

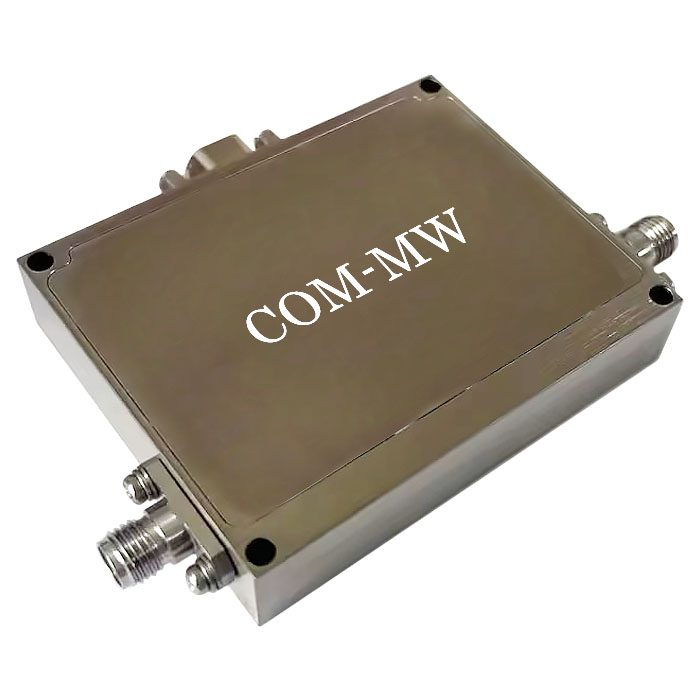

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
