LNA
30~1000MHz, Gain30dB, Noise figure1dB, P-1dB18dBm, SMA
- DLNA8-30-1000-3902
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 1000 | MHz |
| Gain | 30 | 32 | dB | |
| Gain flatness | ±0.4 | dB | ||
| Noise figure | 1 | 1.2 | dB | |
| VSWR | 2 | |||
| P-1dB | 18 | dBm | ||
| Spur reduction | 80 | dBc | ||
| Harmonic Rejection | 30 | dBc | ||
| OIP3 | 30 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency MHz | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | 1db功率 功率 dBm | Psat dBm |
| 10 | 1.76 | 1.91 | 33.39 | 3.46 | 20.7 | 21.7 |
| 152 | 1.16 | 1.92 | 33.58 | 0.86 | 22.4 | 22.9 |
| 294 | 1.25 | 1.88 | 33.57 | 0.98 | 21.8 | 22.7 |
| 436 | 1.34 | 1.81 | 33.63 | 0.99 | 20.9 | 22.6 |
| 579 | 1.43 | 1.73 | 33.68 | 0.91 | 20.4 | 22.4 |
| 721 | 1.54 | 1.64 | 33.71 | 0.82 | 20 | 22.1 |
| 863 | 1.63 | 1.55 | 33.66 | 0.84 | 19.7 | 22 |
| 1005 | 1.72 | 1.45 | 33.63 | 0.96 | 19.6 | 22.1 |
| 1147 | 1.84 | 1.35 | 33.56 | 1.19 | 19.5 | 22.1 |
| 1289 | 1.93 | 1.27 | 33.42 | 1.41 | 19.2 | 22 |
| 1431 | 2.02 | 1.19 | 33.25 | 1.48 | 18.9 | 22 |
| 1574 | 2.13 | 1.13 | 33.09 | 1.38 | 19.1 | 21.9 |
| 1716 | 2.22 | 1.09 | 32.89 | 1.21 | 18.8 | 21.8 |
| 1858 | 2.26 | 1.09 | 32.69 | 1.09 | 18.8 | 21.7 |
| 2000 | 2.32 | 1.13 | 32.52 | 1.02 | 19 | 21.6 |
Reference picture
Configuration(mm)

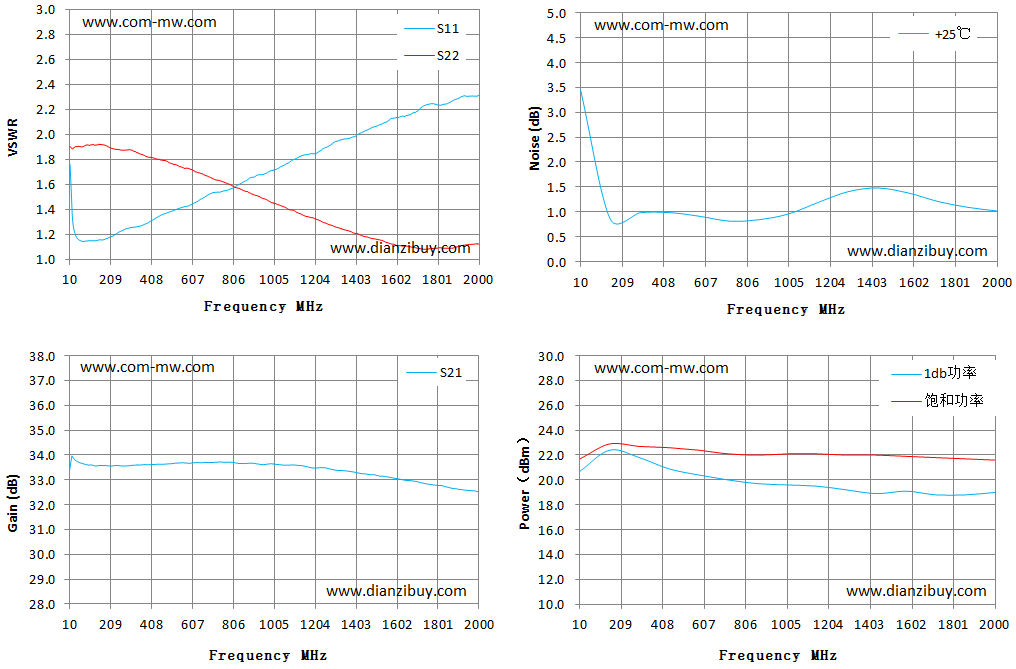

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
