Power amplifier
3~11GHz, Gain34dB, Psat26dBm, SMA
- DPA8-3-11G-3511
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 3 | ~ | 11 | GHz |
| Gain | 34 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 25 | dBm | ||
| Psat | 26 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 35 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | P-1 dBm | Psat dBm |
| 1 | 2.69 | 1.41 | 28.66 | 4.25 | 16.8 | 19.4 |
| 1.86 | 1.39 | 1.59 | 37.02 | 1.83 | 26.5 | 27.5 |
| 2.71 | 1.74 | 1.63 | 35.77 | 1.58 | 26.7 | 27.9 |
| 3.57 | 1.69 | 1.59 | 35.58 | 1.89 | 27.2 | 28.5 |
| 4.43 | 1.46 | 1.53 | 35.73 | 1.86 | 27 | 28.5 |
| 5.29 | 1.46 | 1.37 | 35.64 | 2.11 | 27 | 28.2 |
| 6.14 | 1.53 | 1.3 | 35.07 | 2.14 | 26.7 | 28 |
| 7 | 1.48 | 1.18 | 34.97 | 2.26 | 26.5 | 28 |
| 7.86 | 1.32 | 1.11 | 35.13 | 2.31 | 26.3 | 27.5 |
| 8.71 | 1.17 | 1.12 | 35.17 | 2.29 | 26.3 | 27.7 |
| 9.57 | 1.14 | 1.12 | 35.19 | 2.23 | 26.3 | 28 |
| 10.43 | 1.13 | 1.09 | 35.09 | 2.37 | 26.3 | 27.6 |
| 11.29 | 1.15 | 1.06 | 34.99 | 2.47 | 25.8 | 27.4 |
| 12.14 | 1.29 | 1.03 | 34.9 | 2.52 | 25.7 | 27.5 |
| 13 | 1.4 | 1.01 | 34.79 | 2.62 | 25.5 | 27.4 |

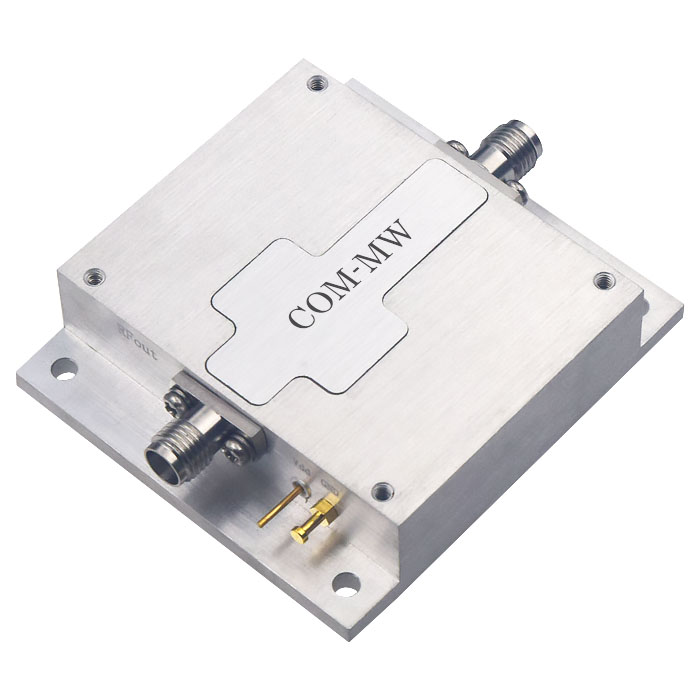

Reference picture

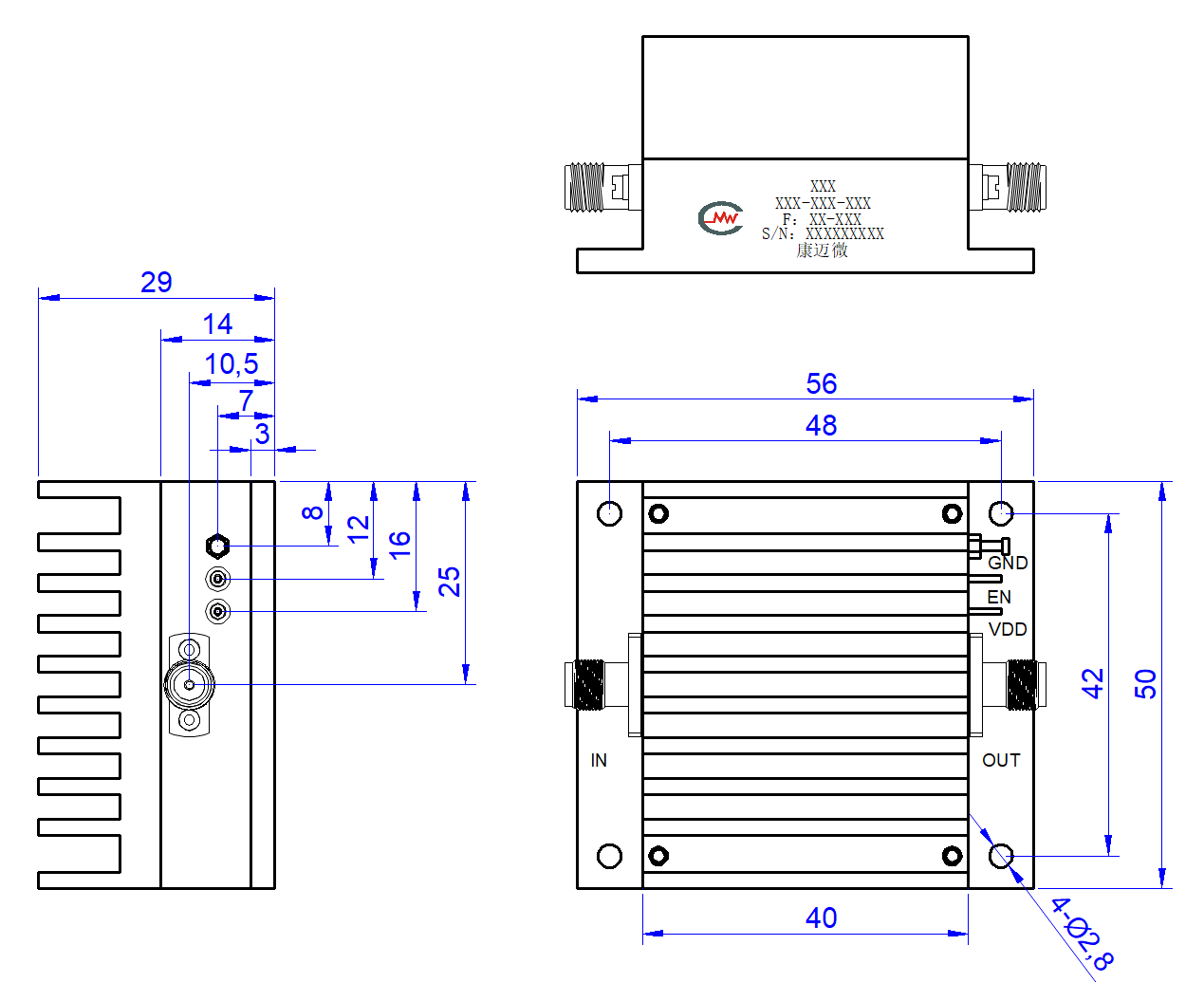

Outline structure diagram

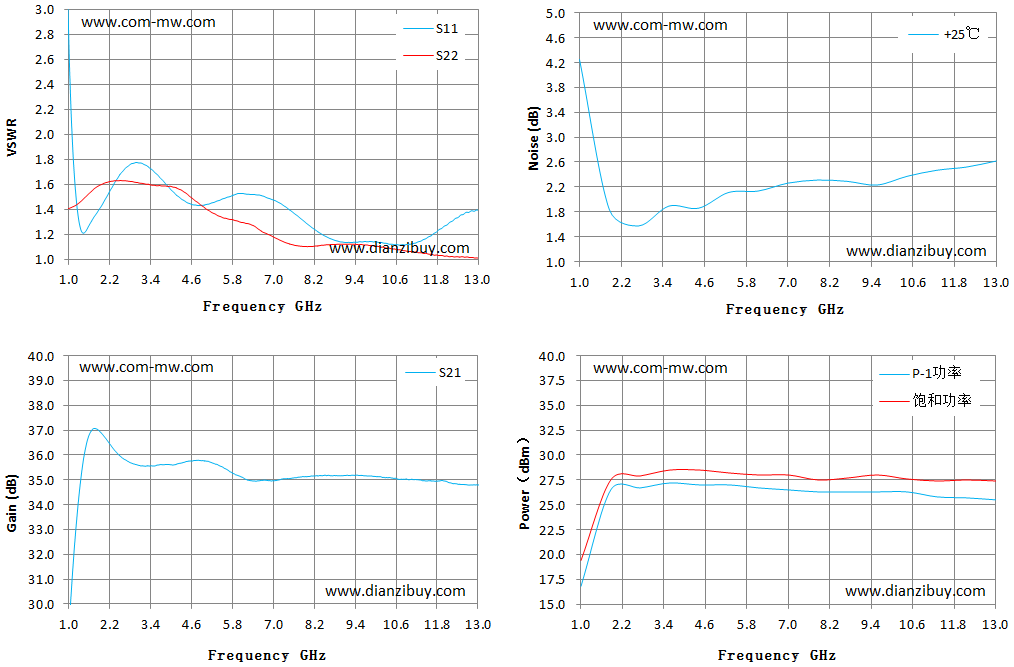

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
