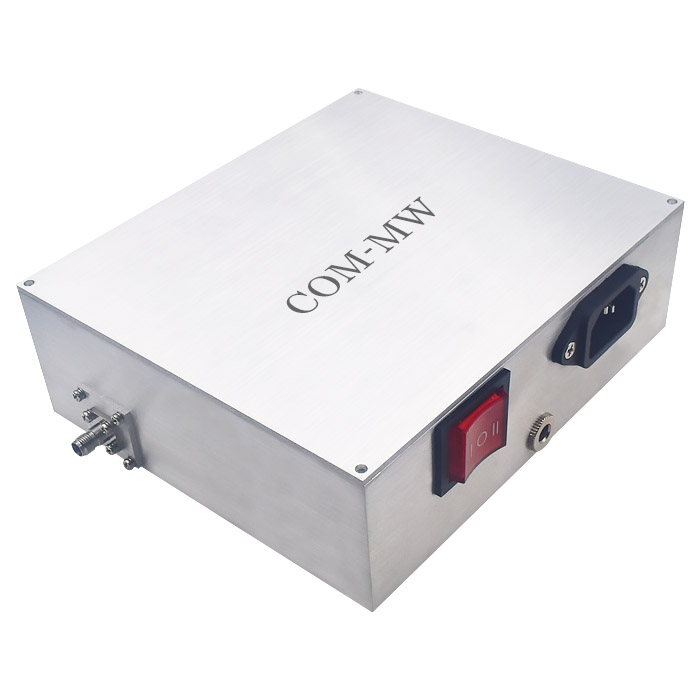

LNA

Frequency18~40GHz, Gain40dB

Model:DLNA8-18-40G-3623
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Connector	2.92-K
Impedance	50Ω
Surface	Conductive oxidation
Operation Temp.	-10~+40℃ Design assurance
Characteristic	Supports 220V power supply, DC power supply, and battery power supply

1	Power supply method 1	110-220V power input, standard AC interface, 12-15V/5W output.
2	Power supply method 2	10 units, powered by No. 5 battery, with a 12-15V output.
3	Power supply method 3	DC power supply, interface DC 5.5mm (outer diameter) * 2.1mm (inner aperture) 220V power adapter for power supply
4	Shell Material	Shell aluminum material
5	Battery operating time	The battery powered working time is approximately 6-10 hours, depending on the battery capacity and internal module power consumption.
6	DC output	The DC power supply voltage is determined by the internal template input voltage.
7	Instructions for using the power switch	The power switch can only control 220V and the battery box, and there is no switch for DC power supply.
8	Replacing the battery	Replace the battery and remove the screws from the battery cover.

1	Standard configuration	One 220V AC power cord (2m)
2	Optional	220V input, 12V output, power adapter

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.
