Spiral antenna
Frequency1.1~1.7GHz, Gain8dBi, Right-handed circular polarization, N-K
- ZLX7-1.1-1.7G-601
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
The planar spiral antenna has the characteristics of ultra bandwidth, low voltage standing wave ratio, stable performance, compact structure, and light weight. Customized right or left circularly polarized planar spiral antennas according to customer requirements.

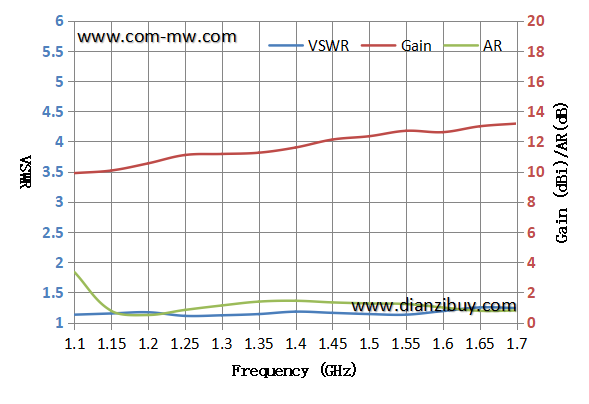

Main specifications

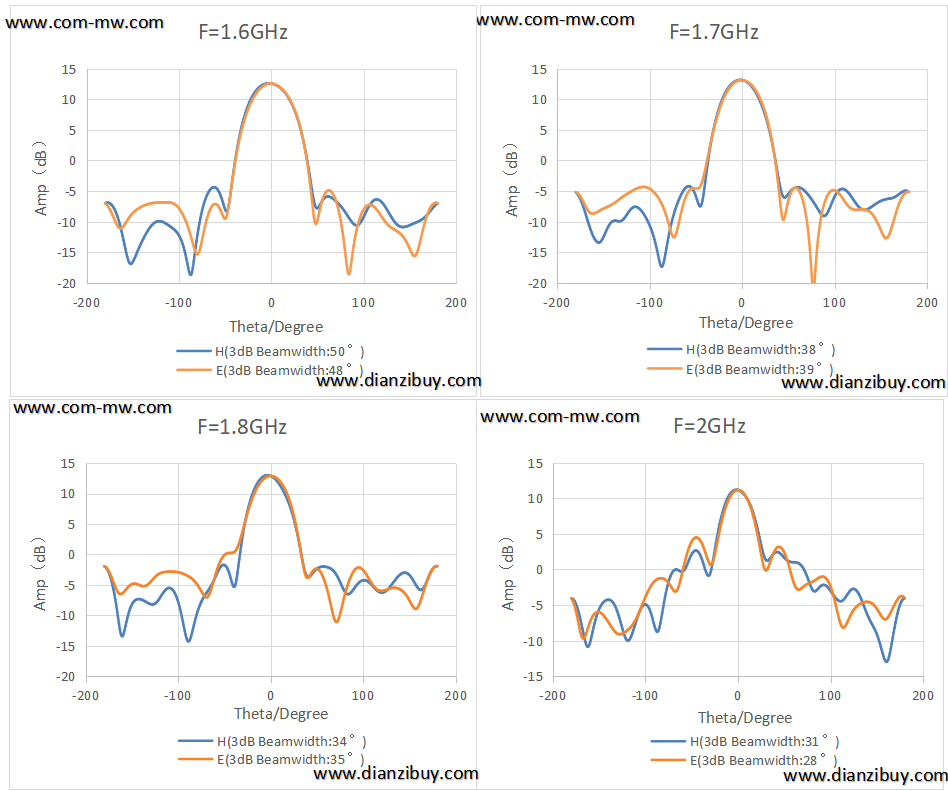

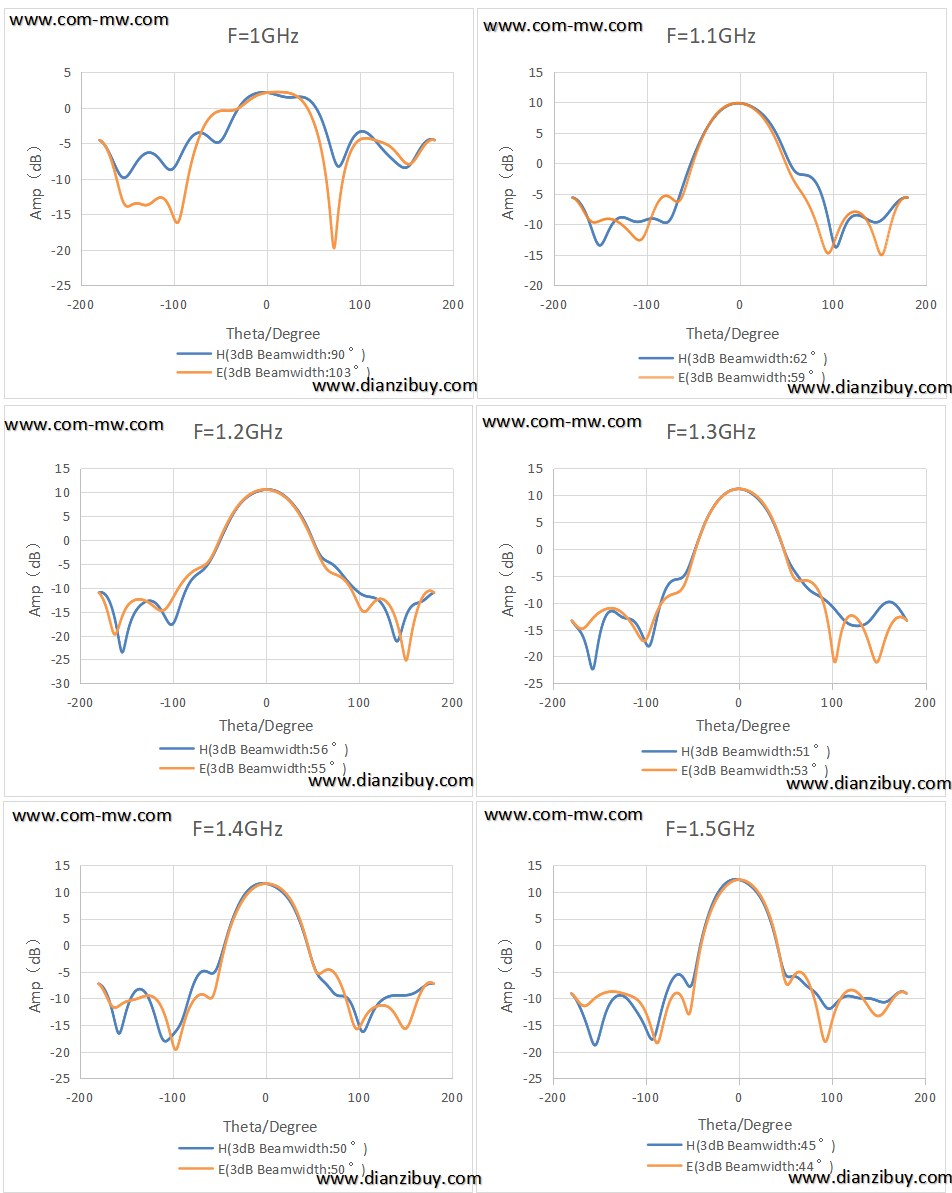

| Parameters | Min | Typical | Max | Units |
| Frequency | 1.1 | ~ | 1.7 | GHz |
| Gain | 8 | dBi | ||
| VSWR | 2.0 | |||
| 3dB Beamwidth | 60 | ° |
Other parameters
| Polarization | Right-handed circular polarization |
| Power | 30W Design assurance |
| Connector | N-K |
| Outline size | φ200*349mm |
| Estimated weight | 1.3Kg |
| Surface | Black |

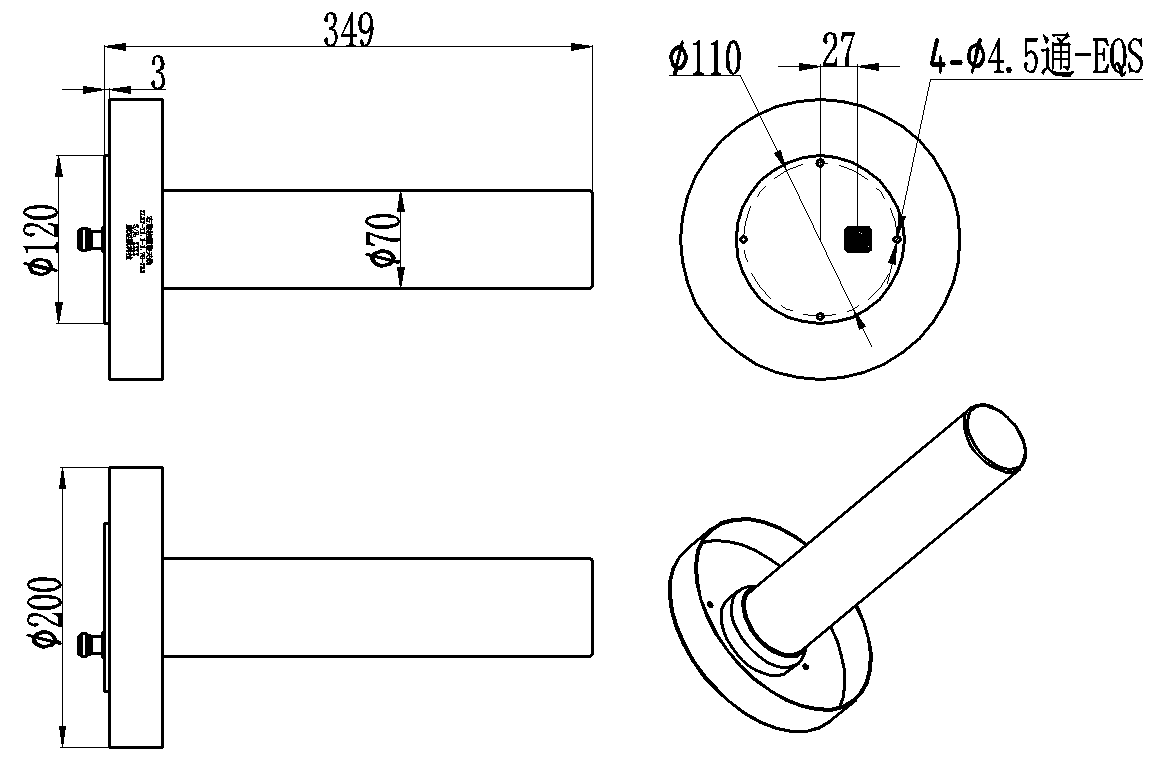

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

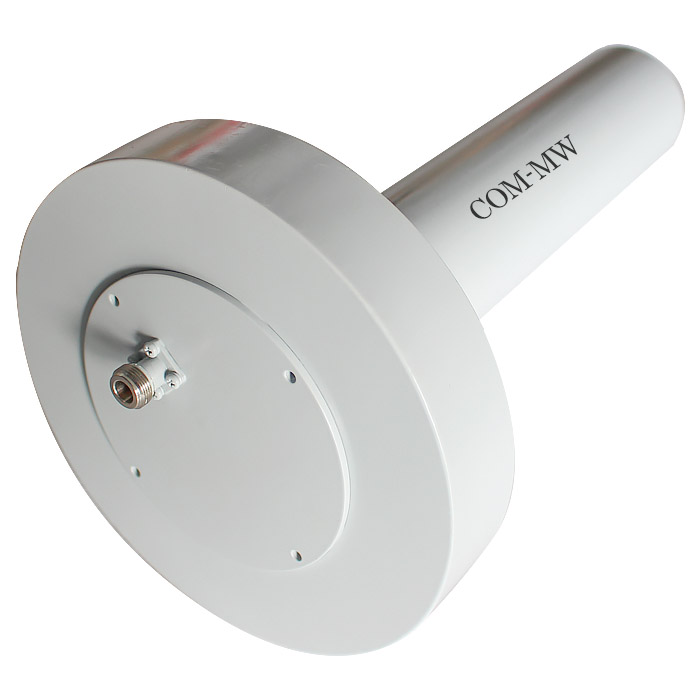

Reference picture
