Power amplifier
1000~18000MHz, Gain50dB, Noise figure2.6dB, P-1dB15dBm, SMA
- DPA8-1000-18000-1012
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 18000 | MHz |
| Gain | 50 | dB | ||
| Gain flatness | 5 | dB | ||
| Noise figure | 2.6 | 3 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 1 | 15.2 | 1.82 | 1.64 | 1.09 | 54.7 |
| 2 | 15.7 | 1.74 | 1.14 | 1.22 | 55.2 |
| 4 | 16.5 | 2.01 | 1.47 | 1.23 | 55.1 |
| 6 | 16.1 | 2.14 | 1.98 | 1.26 | 53.6 |
| 8 | 16.9 | 2.16 | 1.52 | 1.18 | 53.5 |
| 10 | 15.9 | 2.18 | 1.39 | 1.63 | 53.2 |
| 12 | 15.5 | 2.46 | 1.41 | 1.52 | 53.1 |
| 14 | 15.8 | 2.51 | 1.18 | 1.27 | 52.9 |
| 16 | 15.6 | 2.68 | 1.52 | 1.69 | 52.3 |
| 18 | 15.2 | 2.75 | 1.95 | 1.12 | 52.7 |
| 20 | 13.1 | 2.99 | 1.69 | 1.71 | 51 |
Reference picture
Configuration(mm)

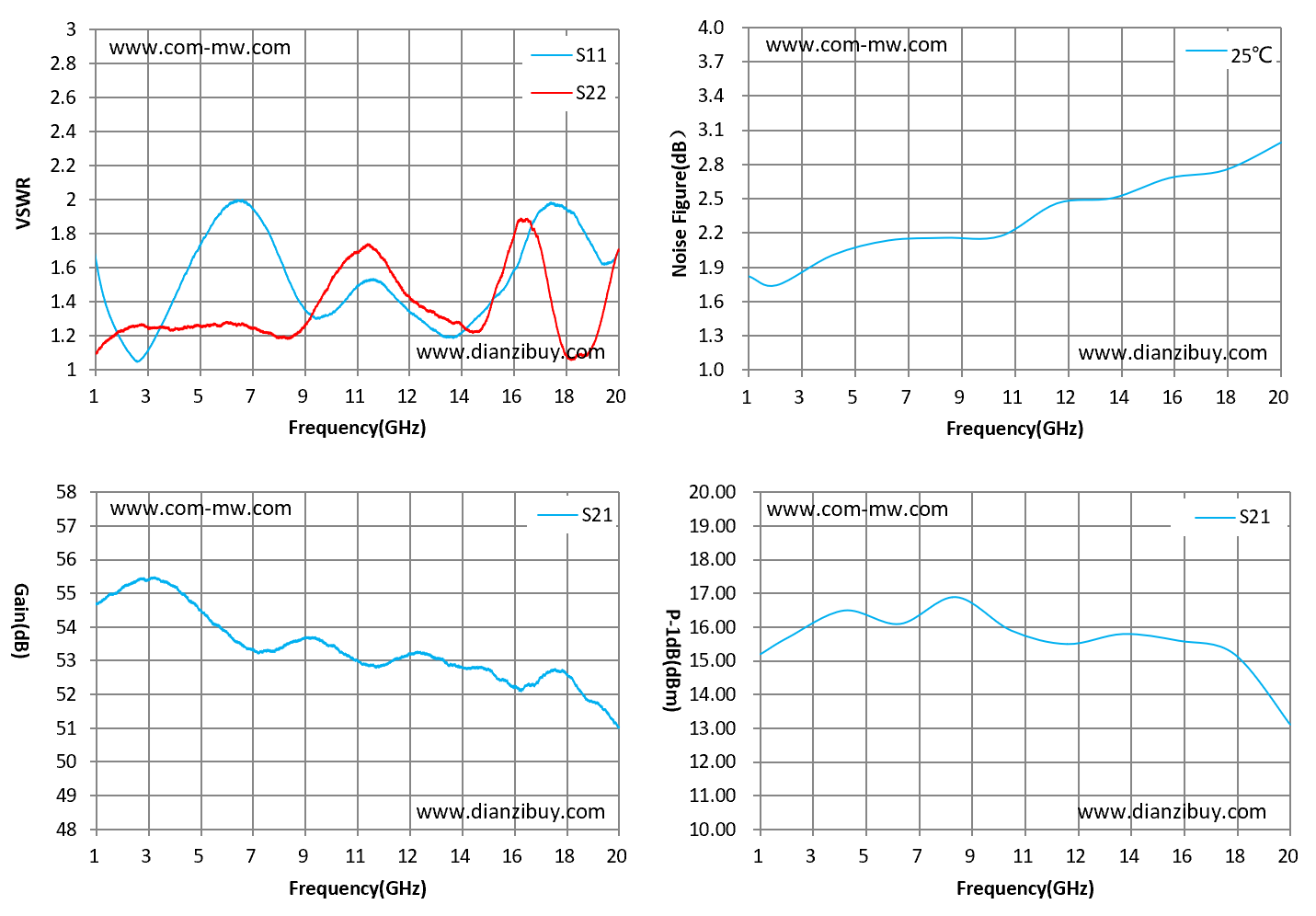

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
