LNA

3~6GHz, Gain50dB, Noise figure1dB, P-1dB10dBm, SMA

Model:DLNA8-3000-6000-1644
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

3D Outline Drawing

Product features

High gain, low noise

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	3	~	6	GHz
Gain	50			dB
Gain flatness			5	dB
Noise figure			1	dB
VSWR			2.2
P-1dB	10			dBm

Other parameters

Connector	SMA-K detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	300mA
Operation Temp.	-40~+70℃ Design assurance
Other	Installed on the radiator.

Typical test data

Frequency(GHz)	S11 VSWR	S22 VSWR	S21 gain	S21 Noise	S21 P-1dB
2	2	1.16	57.08	1.25	13.44
2.36	2.25	1.3	56.95	0.85	13.1
2.71	2.04	1.35	57.16	0.98	13.16
3.07	1.52	1.34	57.37	1.02	13.22
3.43	1.17	1.31	57.61	0.86	13.36
3.79	1.46	1.32	57.98	0.76	13.4
4.14	1.82	1.35	58.44	0.89	12.87
4.5	1.82	1.36	58.82	1.03	12.69
4.86	1.53	1.32	59.09	1.03	12.88
5.21	1.38	1.29	58.88	0.95	12.84
5.57	1.38	1.31	58.64	1.08	12.6
5.93	1.4	1.35	58.84	1.06	12.36
6.29	1.34	1.32	59.47	1.07	12.02
6.64	1.35	1.22	59.73	1.02	11.8
7	1.63	1.3	58.72	1.06	11.73

Reference picture

Configuration(mm)

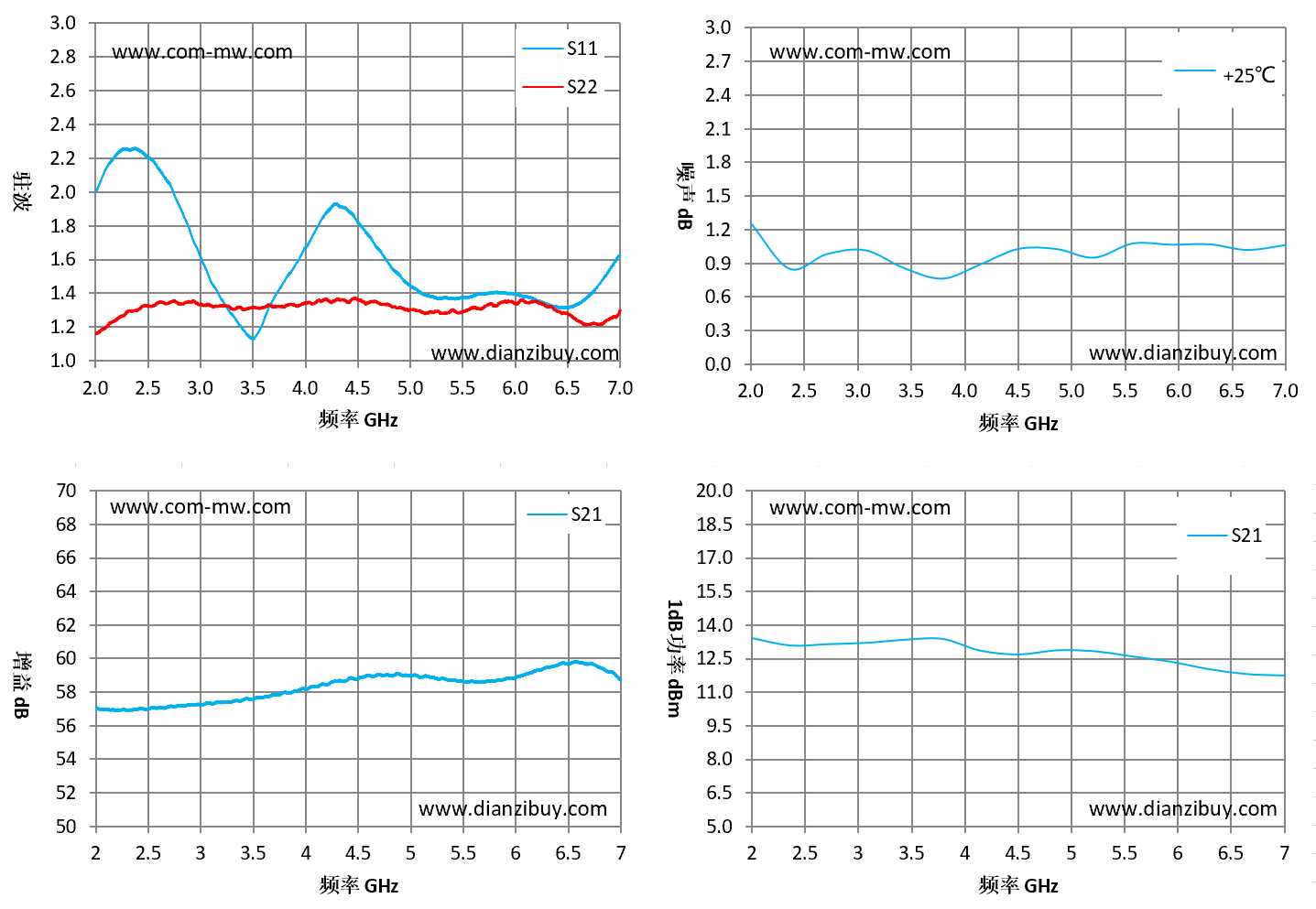

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
