LNA

2~6GHz, Gain37dB, Noise figure0.9dB, P-1dB12dBm, SMA-K

  • DLNA8-2-6G-2556
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency2~6GHz
Gain3740dB
Gain flatness±1.25dB
Noise figure0.91.1dB
VSWR1.52
P-1dB1214dBm
Maximum Input Power10dBm
Spur reduction60dBc

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current200mA
Reverse isolation55dB, TYP: 60dB
Operation Temp.-40~+75℃ Design assurance
Storage Temp.-55~+125℃ Design assurance
Power supply portSSMA connector power supply, port detachable.

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainP-1dBNoise
10001.532.3834.9714.672.04
14291.61.0942.1916.781.29
18571.71.8541.9816.820.98
22861.831.6141.416.340.68
27141.741.1341.3416.050.89
31431.771.4141.9216.10.91
35711.761.4542.51160.66
40001.661.3442.9316.180.63
44291.571.242.8515.550.87
48571.591.5942.4315.050.99
52861.671.942.0814.860.85
57141.461.3241.9914.420.85
61431.281.3841.0313.850.94
65711.241.9740.1712.981.05
70002.22.1141.1211.351.08

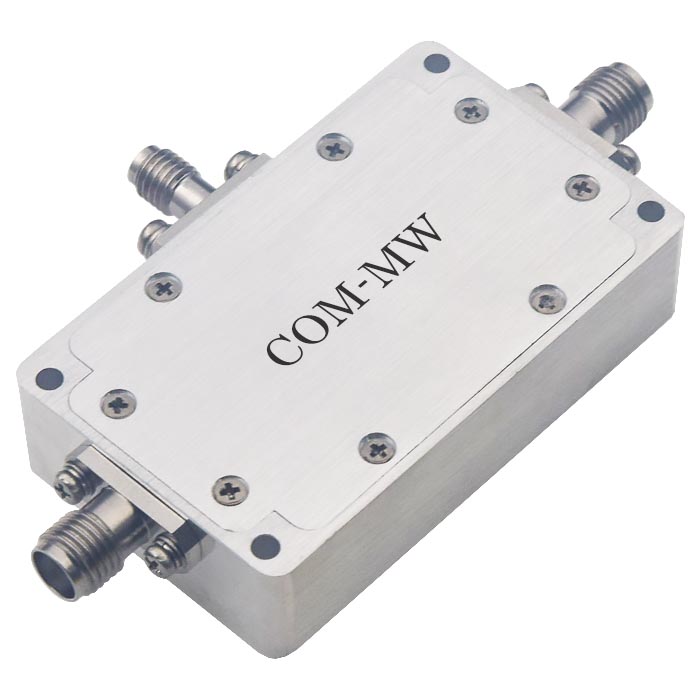

Reference picture

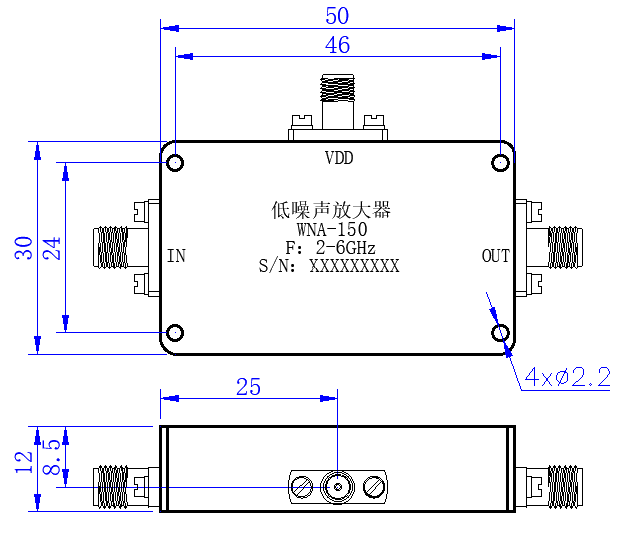

Configuration(mm)

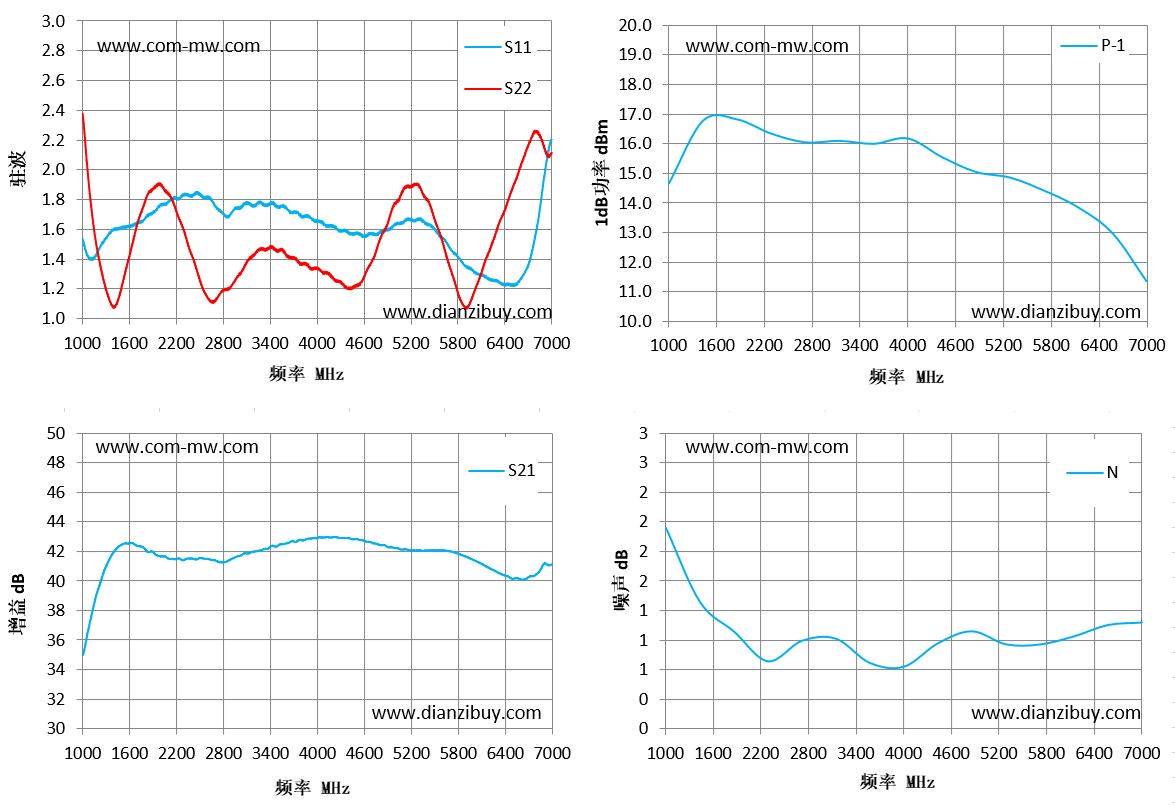

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
