Power amplifier
30~3000MHz, Gain30dB, Psat30dBm, SMA
- DPA8-30-3000-2338
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high reliability.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1.2 | dB | ||
| Input VSWR | 1.8 | |||
| Output VSWR | 2.5 | 30~500MHz | ||
| Output VSWR | 1.9 | 500~3000MHz | ||
| P-1dB | 29 | dBm | ||
| Psat | 30 | dBm | ||
| NF | 4.4 | 5 | dB | |
| Harmonic Rejection | 15 | dBc | ||
| Spurious suppression | 75 | dBc | ||
| OIP3 | 30 | dBm | ||
| Maximum input RF power | 10 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 600mA |
| Operation Temp. | -45~+80℃ Design assurance |
Typical test data
| Frequency(MHz) | 30 | 100 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
| S11 VSWR | 1.4 | 1.42 | 1.27 | 1.28 | 1.4 | 1.43 | 1.55 | 1.12 |
| S22 VSWR | 2.4 | 2.14 | 1.78 | 1.49 | 1.56 | 1.51 | 1.8 | 1.57 |
| Gain （dB） | 32.95 | 31.75 | 32.61 | 32.56 | 32.41 | 32 | 31.82 | 31.65 |
| P-1dB Out （dBm） | 30.4 | 30.6 | 31.13 | 31.03 | 30.74 | 30.26 | 29.45 | 29 |
| POut sat （dBm） | 30.43 | 30.65 | 31.33 | 31.47 | 31.03 | 30.53 | 29.83 | 29.48 |
| harmonic rejection (2nd) | 23.69 | 22.98 | 21.11 | 22.48 | 23.3 | 18.27 | 18.97 | 19.9 |
| harmonic rejection (3rd) | 15.55 | 21.86 | 20.77 | 17.22 | 18.82 | 18.96 | 22.35 | 31.75 |
| Spurious suppression | 80 | 81.3 | 81.2 | 80.3 | 80.5 | 80.5 | 80.5 | 80.6 |
| OIP3（dBm） | 44 | 40.5 | 38.6 | 36.8 | 33 | 32 | 30.6 | 30 |
Reference picture
Configuration

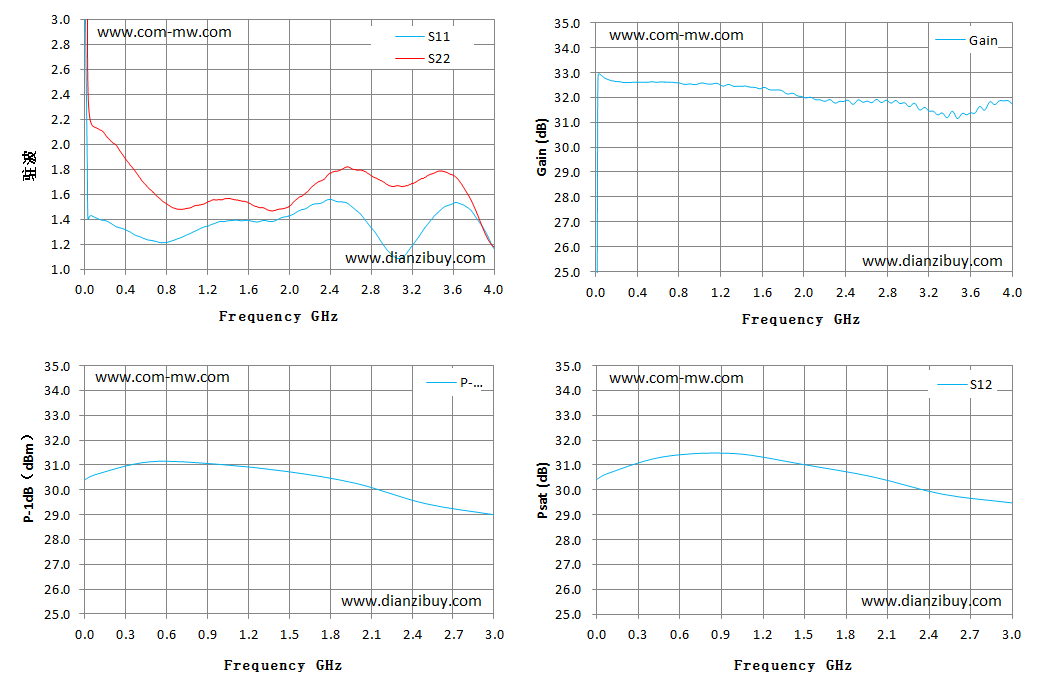

Typical test curve
