LNA
0.01~43GHz, Gain45dB, Noise figure6dB, P-1dB18dBm, 2.92
- DLNA8-0.01-43G-9195
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 43 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 6 | dB | ||
| VSWR | 2 | |||
| P-1dB | 18 | dBm |
Other parameters
| Connector | 2.92-F or K可拆 |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +10V |
| Working current | 550mA |
| Reverse isolation | 60dB |
| Operation Temp. | -40~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | Gain dB | Noise dB | P-1 dBm | Psat dBm |
| 0.01 | 1.15 | 1.70 | 49.4 | 13.6 | 21.1 | 26.5 |
| 3.22 | 1.16 | 1.35 | 49.6 | 4.5 | 23.1 | 27.3 |
| 6.44 | 1.18 | 1.13 | 50.5 | 3.7 | 24 | 27.6 |
| 9.65 | 1.11 | 1.18 | 50.2 | 3.3 | 23.7 | 27.7 |
| 12.86 | 1.05 | 1.28 | 51.8 | 3.2 | 23.6 | 27.4 |
| 16.08 | 1.22 | 1.38 | 51.6 | 3 | 22.6 | 26.4 |
| 19.29 | 1.18 | 1.40 | 50.7 | 3.5 | 22.2 | 26.1 |
| 22.51 | 1.51 | 1.98 | 48.6 | 3.9 | 20.7 | 25.2 |
| 25.72 | 1.54 | 1.62 | 49.2 | 4 | 21 | 25.3 |
| 28.93 | 1.35 | 1.40 | 49.1 | 4.6 | 21.2 | 25.4 |
| 32.15 | 1.38 | 1.38 | 49 | 4.7 | 20.9 | 25 |
| 35.36 | 1.29 | 1.33 | 50.7 | 5 | 18.7 | 23.8 |
| 38.57 | 1.26 | 1.27 | 51.1 | 5.4 | 18.8 | 23.5 |
| 41.79 | 1.35 | 1.48 | 50.1 | 5.8 | 16.5 | 21.9 |
| 43.50 | 1.25 | 1.54 | 49.5 | 6.2 | 15.3 | 21.1 |

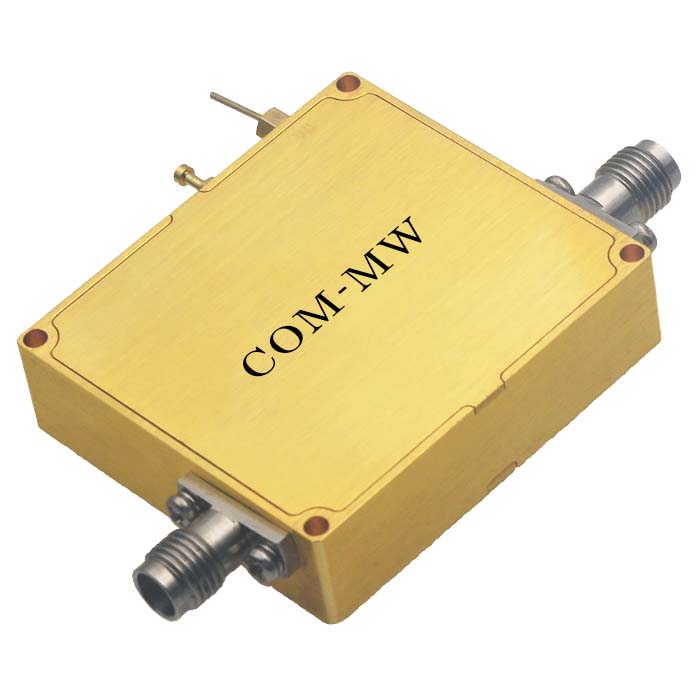

Reference picture

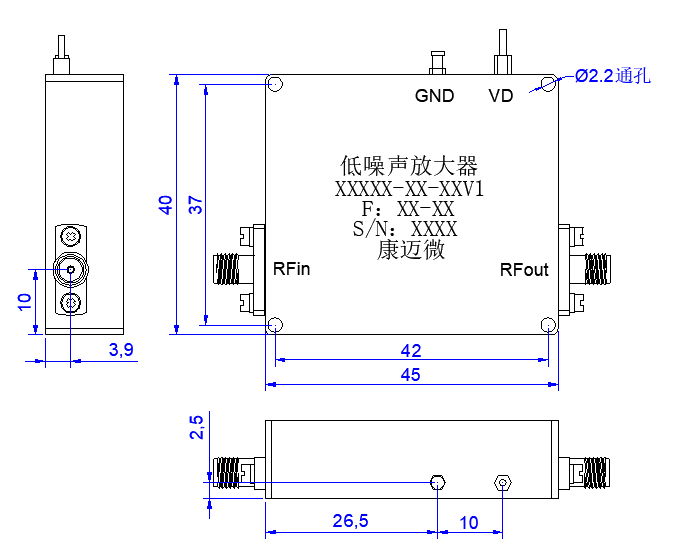

Configuration(mm)

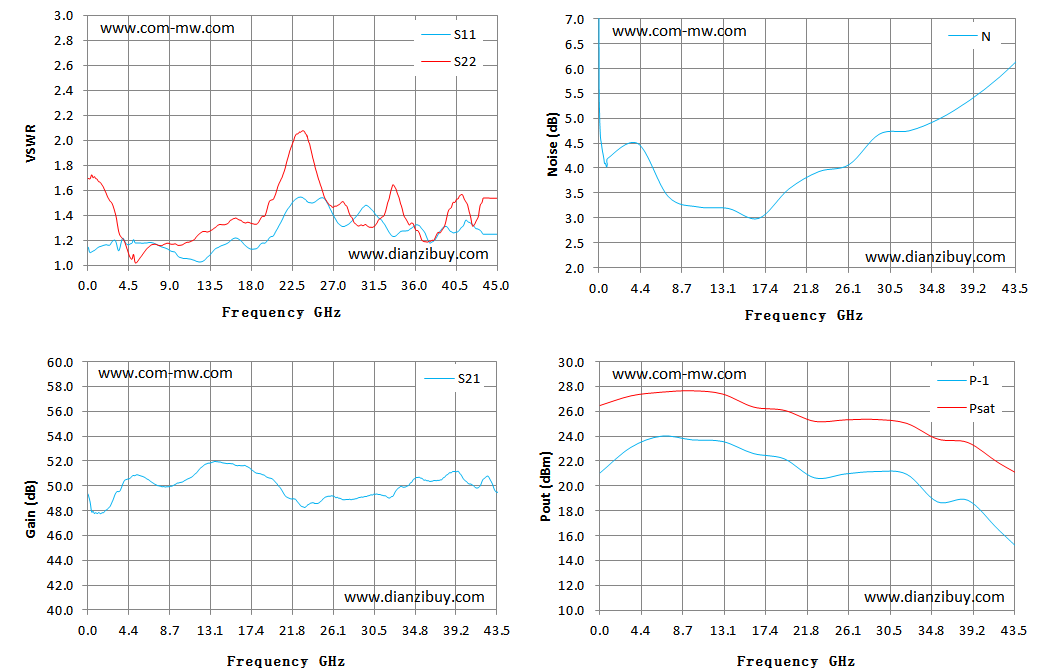

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
