Power amplifier
20000~50000MHz, Gain30dB, Psat23dBm, 2.4
- DPA8-20-50G-3767
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20000 | ~ | 50000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±3 | dB | ||
| VSWR | 2.5 | |||
| Psat | 23 | dBm |
Other parameters
| Connector | 2.4-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 1A |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm |
| 20 | 1.57 | 1.71 | 33.51 | 26 | 26.4 |
| 22.14 | 1.43 | 1.69 | 34.16 | 26 | 26.5 |
| 24.29 | 1.19 | 1.65 | 33.94 | 26 | 26.1 |
| 24.43 | 1.4 | 1.49 | 34.73 | 25.5 | 25.5 |
| 28.57 | 1.63 | 1.54 | 35.95 | 24.3 | 25.1 |
| 30.71 | 1.89 | 1.65 | 38.81 | 24.5 | 25.2 |
| 32.86 | 1.7 | 2.09 | 37.18 | 25.6 | 25.8 |
| 35 | 1.85 | 2.21 | 35.15 | 25.2 | 25.7 |
| 37.14 | 2.3 | 2.06 | 36.55 | 24.6 | 25.4 |
| 39.29 | 1.9 | 1.85 | 35.45 | 24.9 | 25.4 |
| 41.43 | 1.09 | 1.68 | 37.4 | 24.7 | 25.3 |
| 43.57 | 1.78 | 1.41 | 35.94 | 24.3 | 24.8 |
| 45.71 | 2.24 | 2.11 | 35.21 | 24 | 24.2 |
| 47.86 | 1.66 | 1.76 | 38.27 | 23.7 | 23.9 |
| 50 | 1.84 | 1.86 | 37.88 | 22.3 | 22.5 |

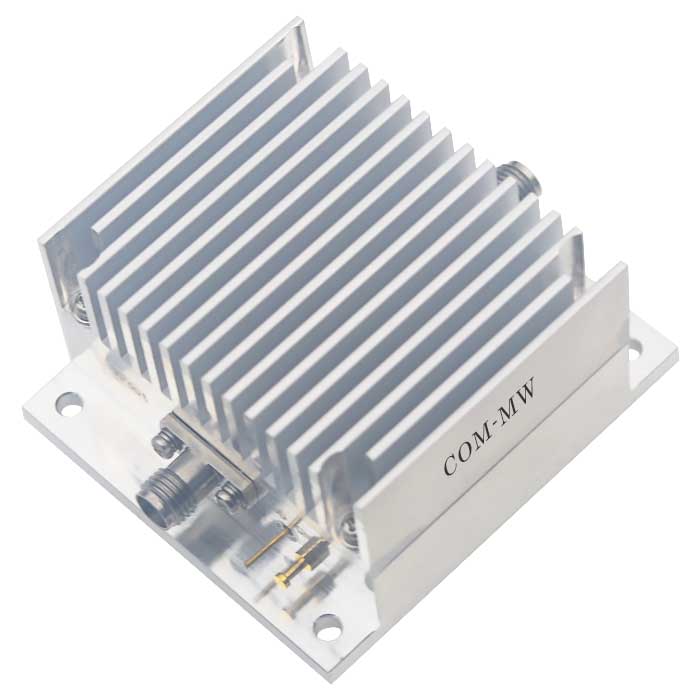

Reference picture

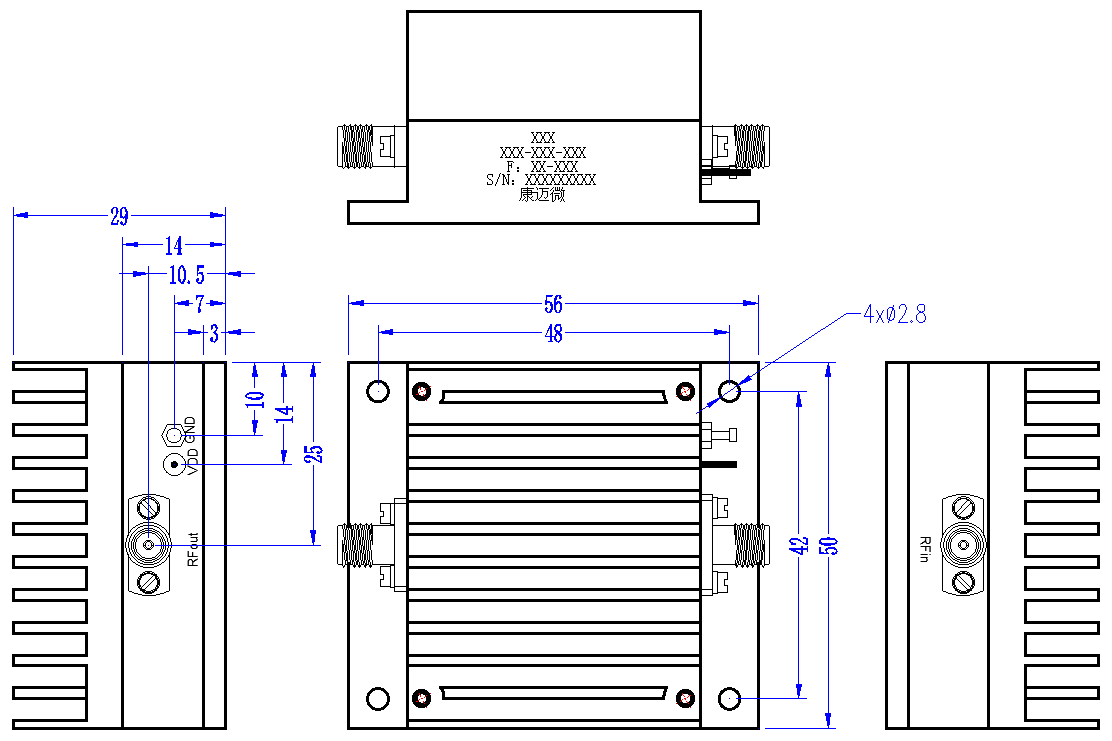

Configuration

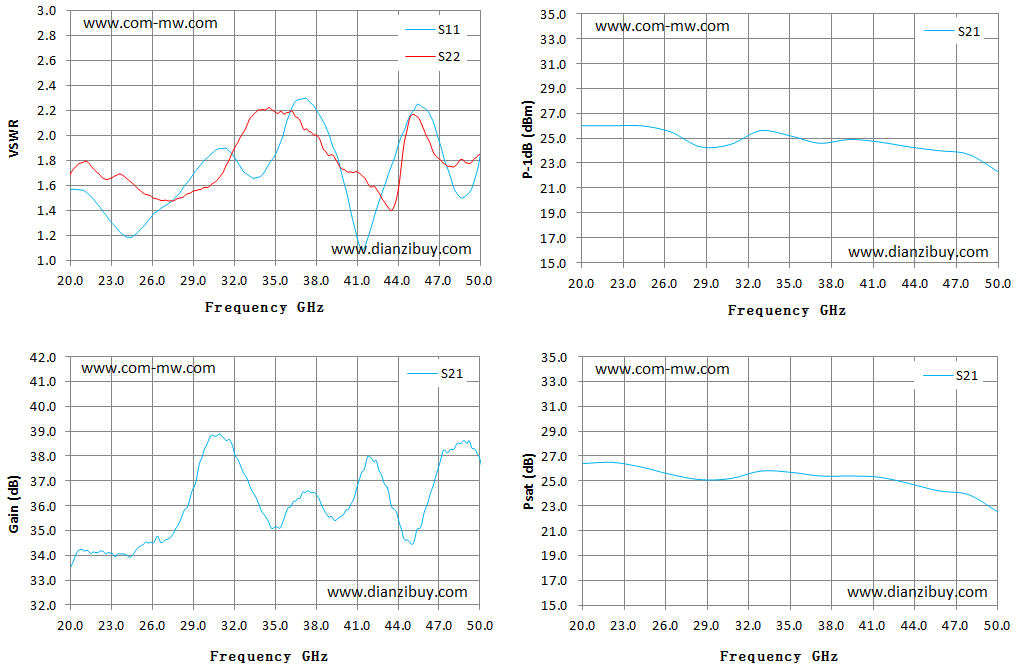

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
