LNA
1~6GHz, Gain45dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA8-1-6G-3941
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 6 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 1.5 | 3 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Working current | 300mA |
| Operation Temp. | -20~+℃设计保证 |
| Other | Supports 220V AC and DC power supply |
Instructions for use
| 1 | Power supply method 1 | 230V power input, standard AC interface |
| 2 | Power supply method 2 | DC power supply, interface DC 5.5mm (outer diameter) * 2.5mm (inner aperture) 220V power adapter( 12V@2A )Power supply |
| 3 | Instructions for using the power switch | The switch is equipped with a power on indicator, and the light will turn on when powered on. Either 220V or DC power supply can be used after being turned on, and cannot be used when powered on at the same time |
Parts list
| 1 | 配件 | 英规电源线1条 |

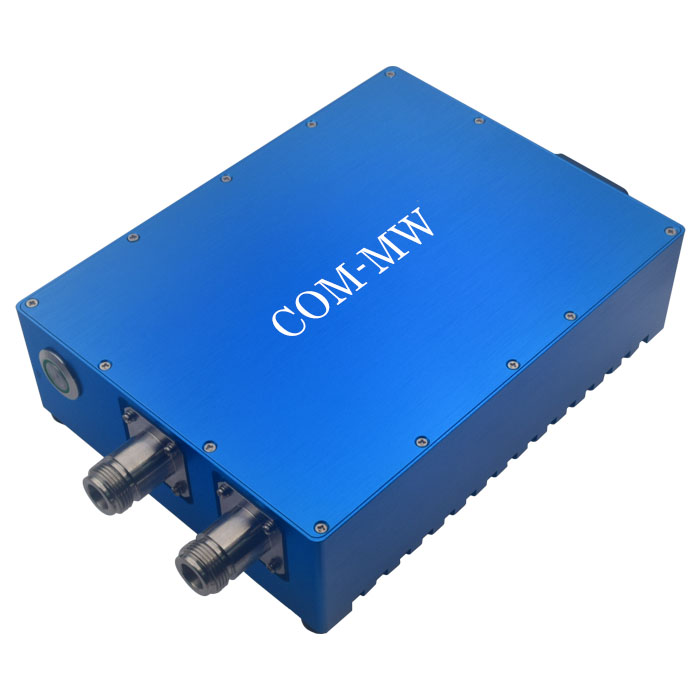

Reference picture

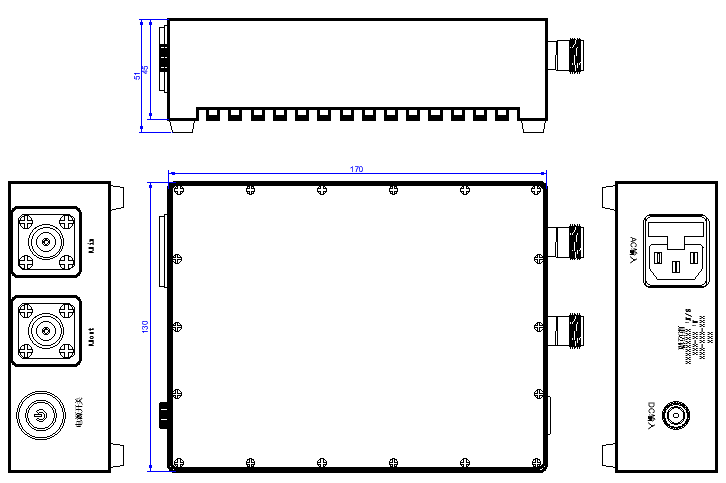

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
