LNA

18~40GHz, Gain30dB, Noise figure4.5dB, P-1dB15dBm, 2.92-JK

  • DLNA8-18000-40000-966
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

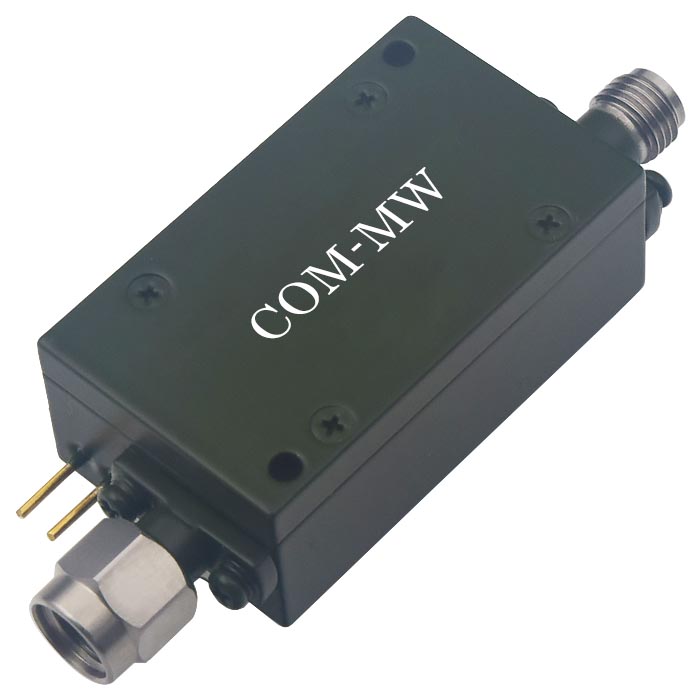

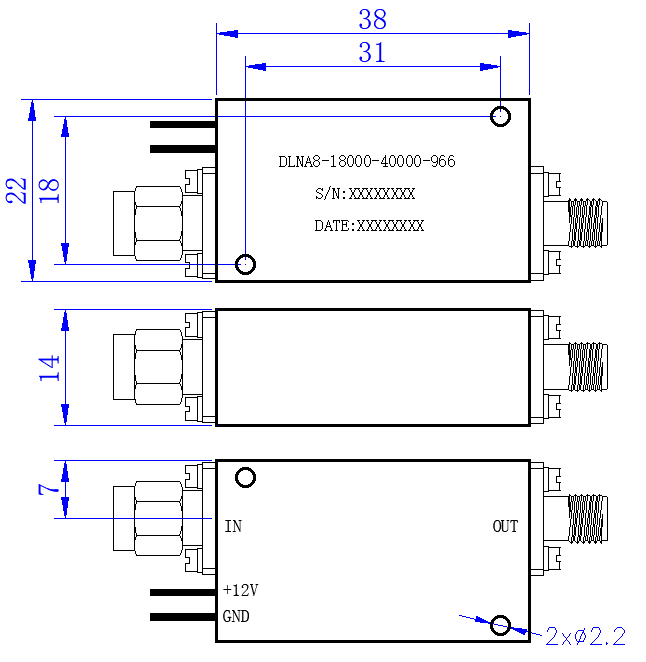

3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~40GHz
Gain30dB
Gain flatness±2.75dB
Noise figure4.5dB
VSWR2.5
P-1dB15dBm
Max input power10dBm

Other parameters

Connector2.92-JK
Connector materialStainless steel
Impedance50Ω
SurfaceArmy green
Working voltage+12V
Working current200mA
Relative humidity1%~95% Design assurance
Operation Temp.-40~+70℃
OtherInput limiter
The power input has lightning protection measures.
The equipment should have the ability to prevent moisture, salt spray, corrosion, and dust.

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainNoiseP-1dB dBm
161.32.7231.533.7715.17
17.861.122.0532.813.3916.15
19.711.281.3632.923.2416.2
21.571.351.1832.723.3115.87
23.431.91.3231.793.7415.8
25.291.61.331.353.9216.48
27.141.91.2631.63.816.56
292.051.3631.883.5316.72
30.861.721.4132.733.6517
32.711.931.6133.13.6516.72
34.571.41.635.83.517.22
36.431.811.1836.62417.39
38.292.161.7536.373.9816.52
40.142.192.1235.913.9217.05
421.371.8434.274.4216.78

Reference picture

Configuration(mm)

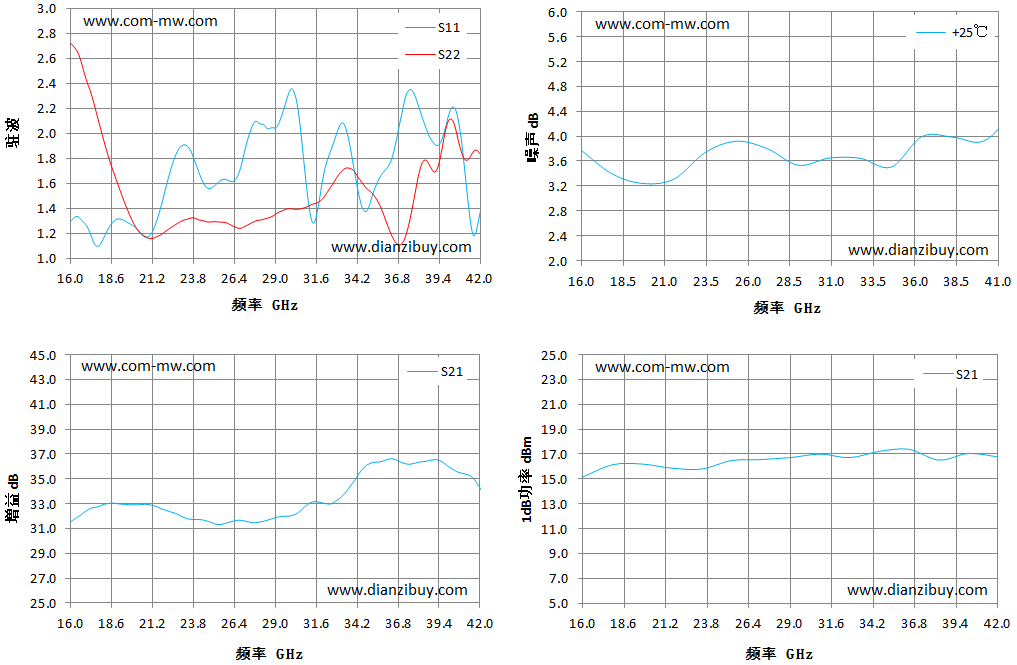

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
