LNA

18~40GHz, Gain16dB, Noise figure3.5dB, P-1dB5dBm, 2.92

  • DLNA8-18-40G-3521
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~40GHz
Gain16dB
Gain flatness±2.5dB
Noise figure3.5dB
VSWR2.5
P-1dB5dBm

Other parameters

Connector2.92-K
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+15V
Working current150mA
Operation Temp.-40~+70℃

Typical test curve

FrequencyS11S22GainP-1PSATNoise
GHzVSWRVSWTdBdBmdBmdB
151.491.2219.3614.0615.272.44
171.261.1120.6114.2415.292.58
191.351.3321.0614.2915.242.83
211.181.3620.8915.3816.382.76
231.211.2320.3115.116.62.94
251.541.1819.1415.5216.782.82
271.61.417.9614.8115.962.96
291.351.5417.5315.0916.743.12
311.241.5317.4414.9716.553.15
331.431.4217.4114.8216.93.1
351.521.3517.715.0217.023.31
391.651.5219.2115.9117.452.97
411.961.2820.0616.4518.0143.06
432.452.119.5916.7918.233.29

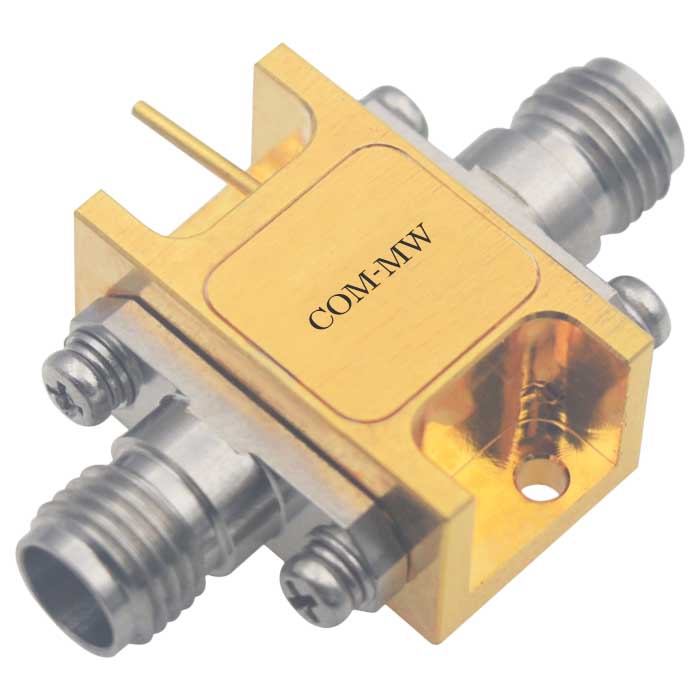

Reference picture

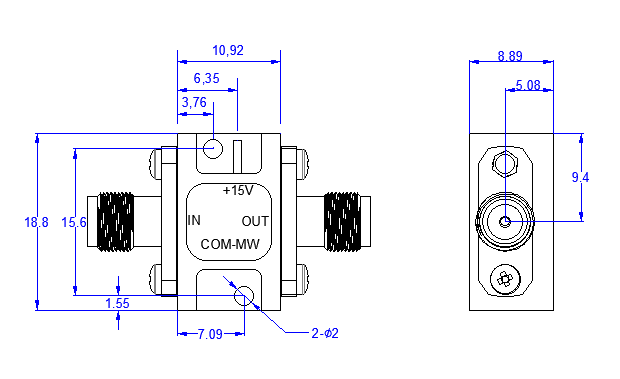

Configuration(mm)

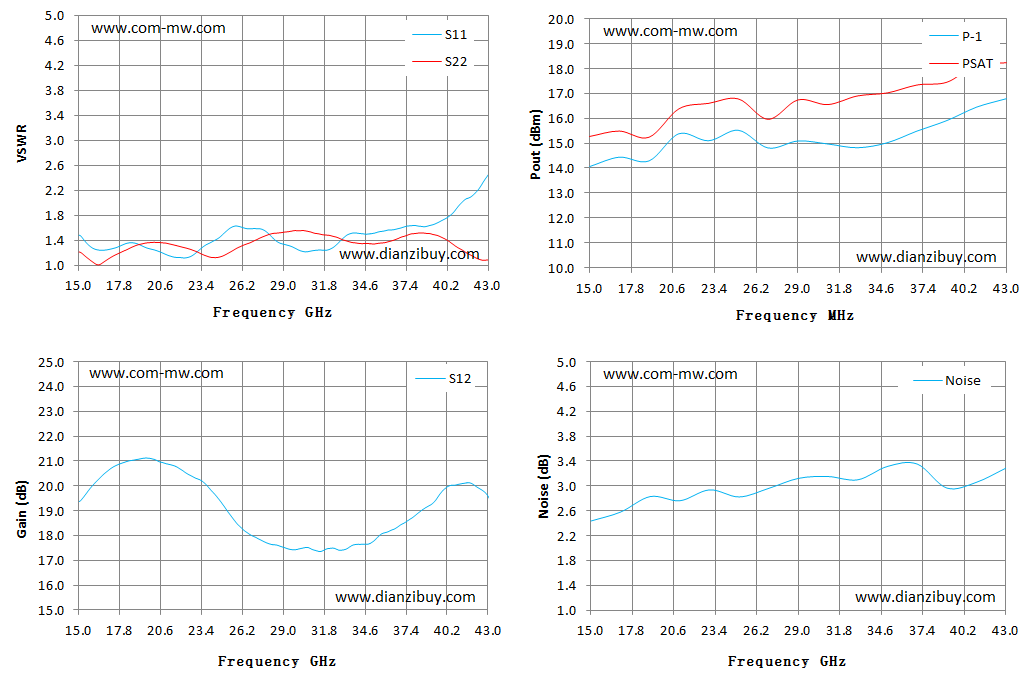

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
