LNA

20~3000MHz, Gain12dB, Noise figure2.2dB, P-1dB13dBm, SMA

  • DLNA8-10-3000-2585
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency20~3000MHz
Gain12dB
Gain flatness±2dB
Noise figure2.22.5dB
VSWR22.5
P-1dB13dBm
Max input power15dBm
IP355dBc

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current200mA
Reverse isolation20dB
Operation Temp.-40~+70℃ Design assurance
OtherPower supply interface: SMA-K detachable

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainS21 NoiseP-1dB
1015.831.3311.371.5714.5
2951.821.416.470.9915.37
5801.551.5116.491.2715.18
8651.291.6816.291.2314.46
11501.31.8315.81.4213.96
14351.431.9315.081.5413.19
17201.481.9814.291.5713.27
20051.411.9813.751.7313.51
22901.261.9413.411.8213.11
25751.091.8813.231.9214.16
28601.311.813.032.1413.82
31451.891.6812.842.3214.97
34302.951.5412.472.4615.24
37154.81.4111.342.5515.58
40007.491.379.93.2516.19

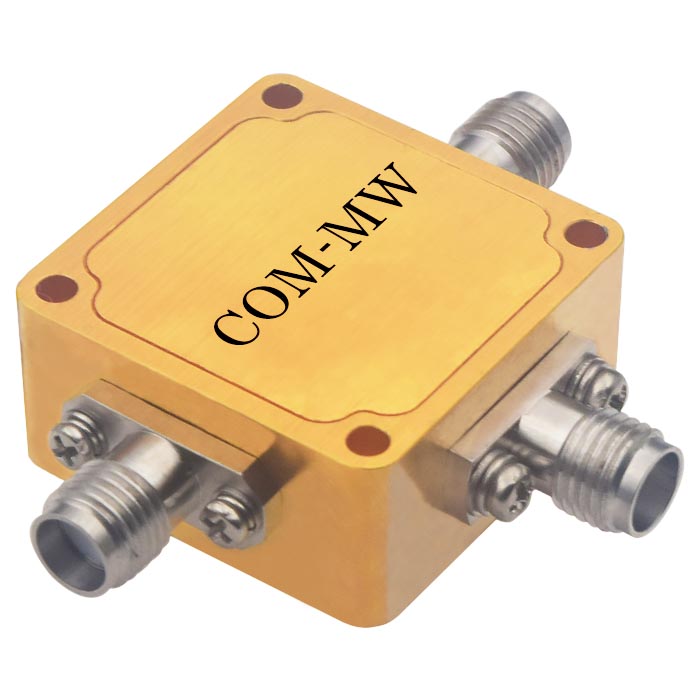

Reference picture

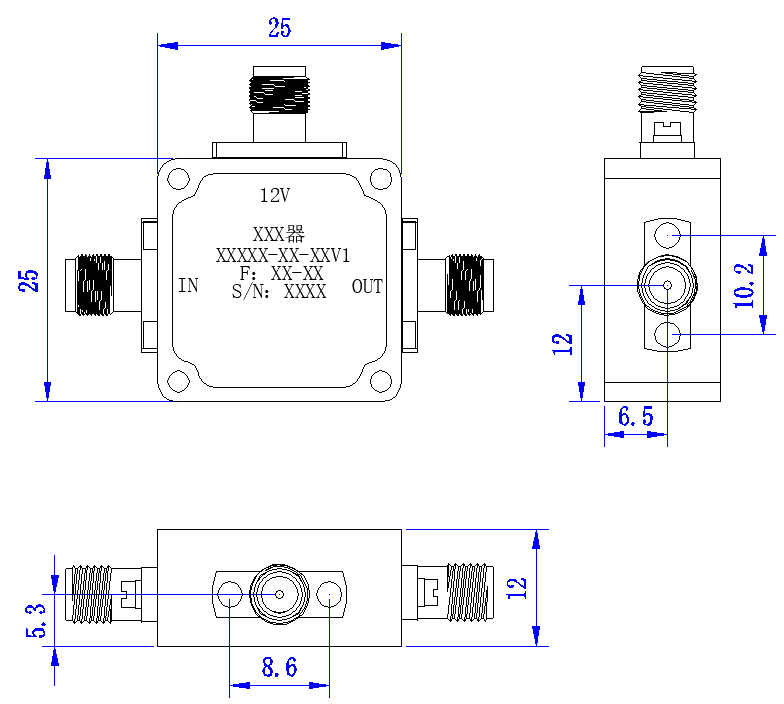

Configuration(mm)

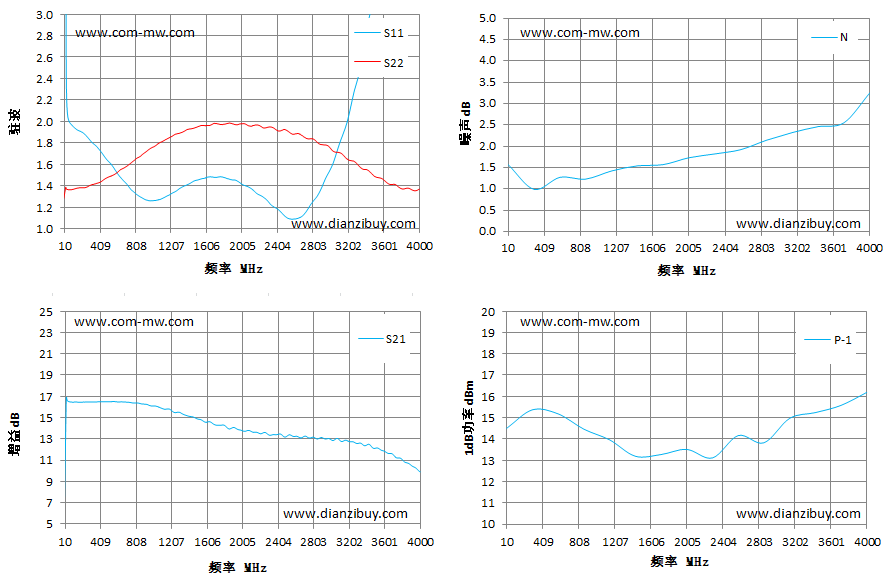

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
