LNA
30~6000MHz, Gain35dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA8-30-6000-026
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 6000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 1.5 | 2.5 | dB | |
| VSWR | 1.8 | 2 | ||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-F Detachable Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |

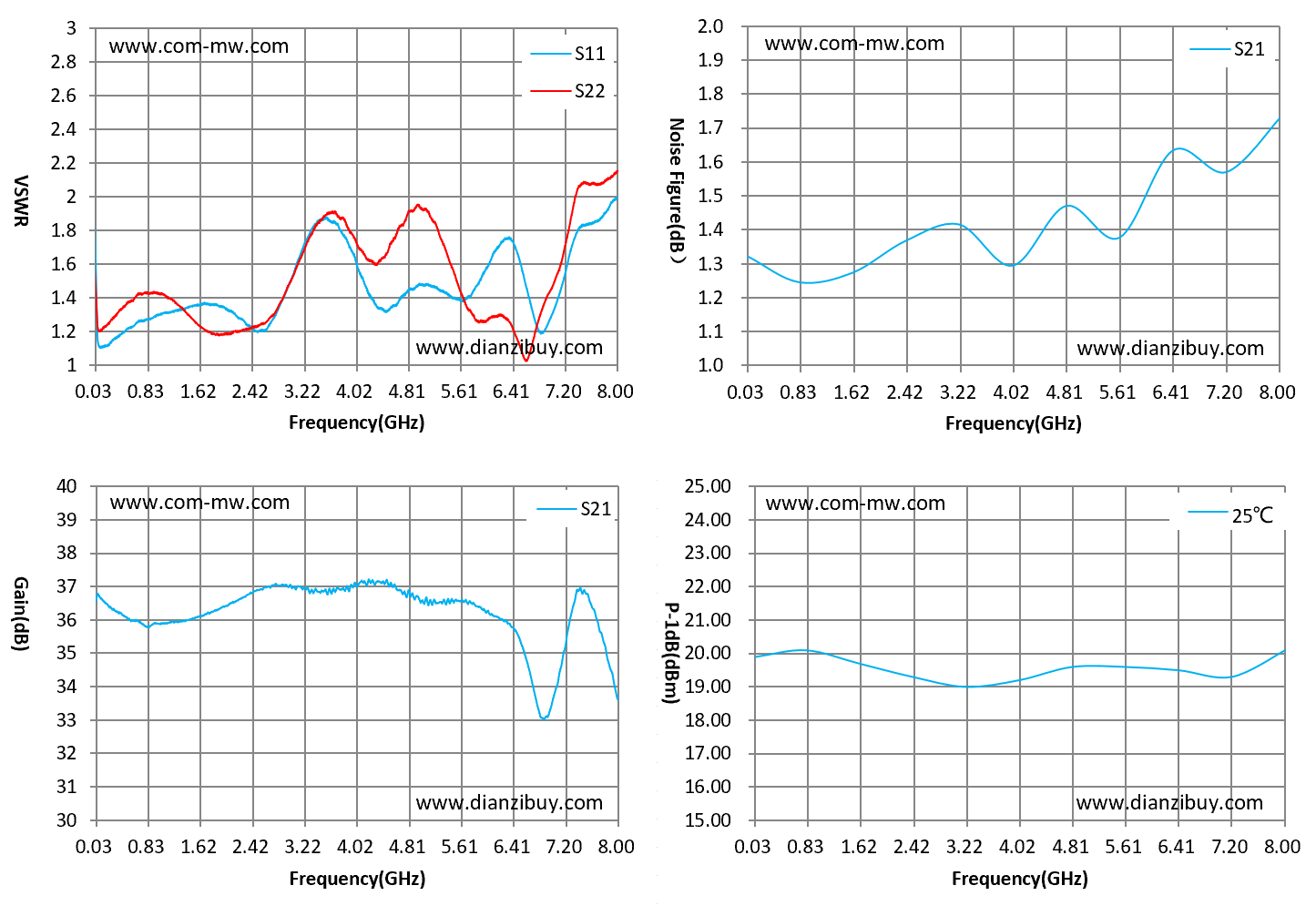

Typical test curve
Typical test data
| F（GHz） | S11 VSWR | S22 VSWR | Gain（dB） | P-1（dBm） | NF（dB） |
| 0.03 | 1.54 | 1.42 | 36.59 | 19.90 | 1.32 |
| 0.80 | 1.27 | 1.43 | 35.79 | 20.10 | 1.24 |
| 1.60 | 1.36 | 1.23 | 36.10 | 19.70 | 1.27 |
| 2.40 | 1.23 | 1.22 | 36.81 | 19.30 | 1.37 |
| 3.20 | 1.71 | 1.67 | 36.94 | 19.00 | 1.41 |
| 4.00 | 1.61 | 1.73 | 37.02 | 19.20 | 1.29 |
| 4.80 | 1.44 | 1.91 | 36.87 | 19.60 | 1.47 |
| 5.60 | 1.38 | 1.43 | 36.56 | 19.60 | 1.38 |
| 6.40 | 1.73 | 1.21 | 35.74 | 19.50 | 1.63 |
| 7.20 | 1.55 | 1.71 | 35.32 | 19.30 | 1.57 |
| 8.00 | 1.99 | 2.15 | 33.61 | 20.10 | 1.73 |
Reference picture

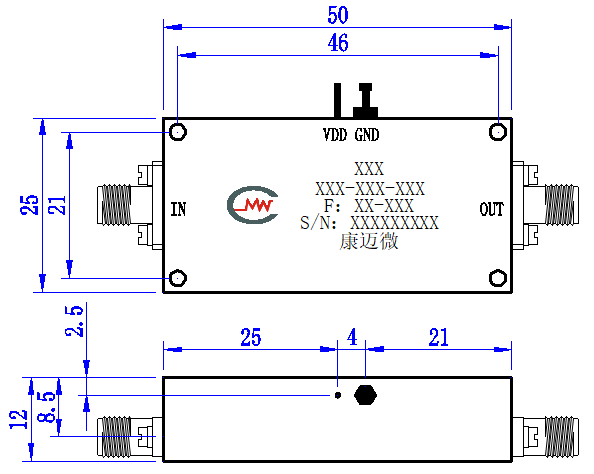

Configuration(mm)
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
