LNA
100~3000MHz, Gain20dB, Noise figure1.2dB, P-1dB15dBm, SMA
- DLNA8-100-3000-3622
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 3000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 1.2 | 1.5 | dB | |
| VSWR | 1.6 | 2 | ||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | / |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | P-1dB |
| 100 | 1.8 | 1.42 | 23.52 | 1.2 | 20.42 |
| 307 | 1.36 | 1.25 | 23.8 | 0.92 | 21.2 |
| 514 | 1.25 | 1.23 | 23.8 | 0.83 | 21.75 |
| 721 | 1.21 | 1.23 | 23.74 | 0.89 | 21.65 |
| 929 | 1.19 | 1.25 | 23.67 | 0.86 | 21.4 |
| 1136 | 1.18 | 1.27 | 23.55 | 1 | 21.3 |
| 1343 | 1.17 | 1.29 | 23.46 | 1.14 | 21.28 |
| 1550 | 1.17 | 1.32 | 23.33 | 1.19 | 21.36 |
| 1757 | 1.18 | 1.34 | 23.12 | 1.22 | 21.43 |
| 1964 | 1.2 | 1.38 | 22.98 | 1.19 | 21.5 |
| 2171 | 1.22 | 1.41 | 22.8 | 1.18 | 21.42 |
| 2379 | 1.26 | 1.45 | 22.54 | 1.29 | 21.27 |
| 2586 | 1.31 | 1.49 | 22.33 | 1.31 | 21.18 |
| 2793 | 1.37 | 1.55 | 22.06 | 1.3 | 21.1 |
| 3000 | 1.43 | 1.6 | 21.76 | 1.38 | 20.98 |

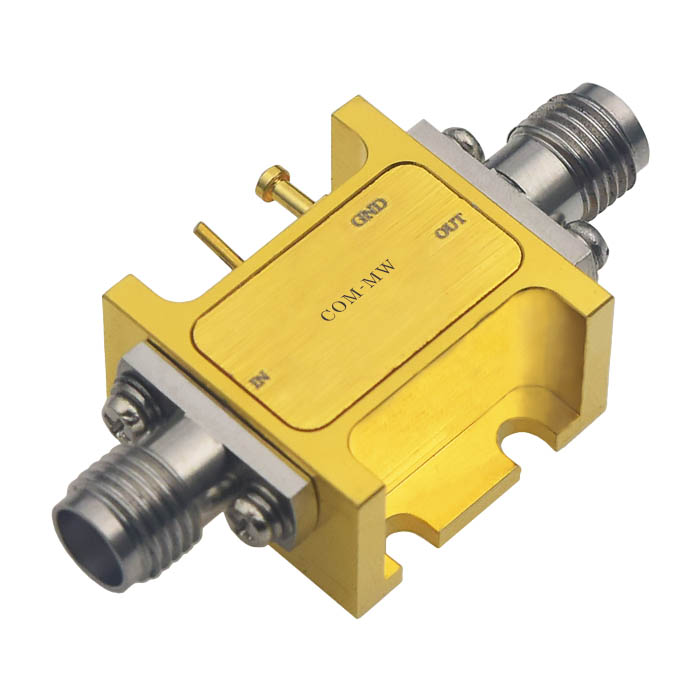

Reference picture

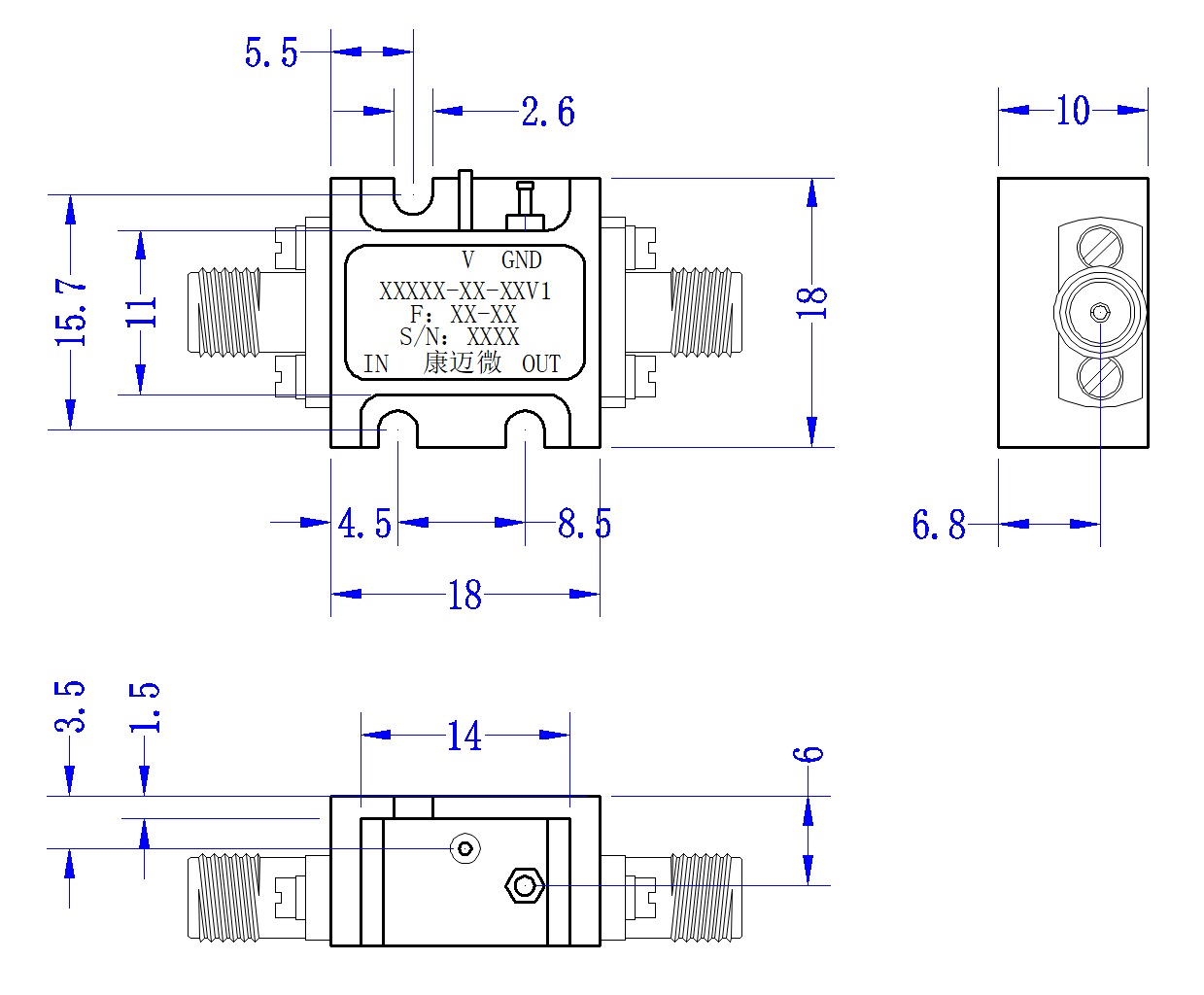

Configuration(mm)

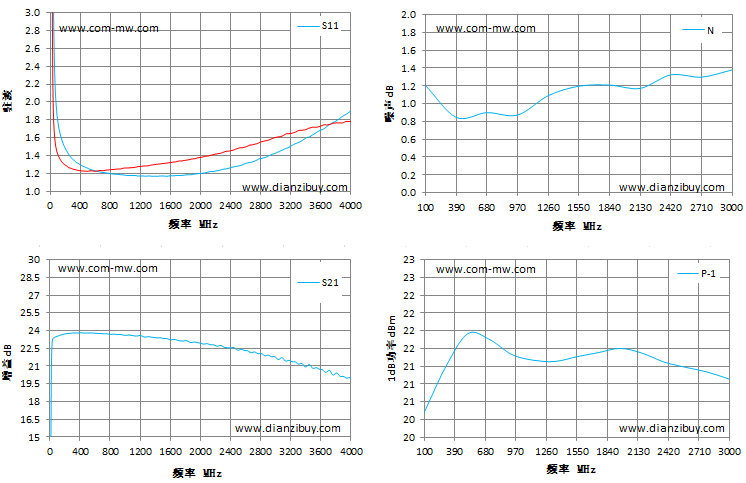

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
