Power amplifier

2~18GHz, Gain43dB, Psat43dBm, SMA

  • DPA9-2-18G-3350
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Tech specifications

ParametersMinTypicalMaxUnits
Frequency2~18GHz
Gain4345dB
Gain flatness3dB
Input VSWR2
Psat4345dBm
Max input power10dBm
Spur reduction60dBc
Harmonic Rejection10dBc

Other parameters

ConnectorSMA-F
Impedance50Ω
Working voltage+28V
Working current6000mA
Operation Temp.-40~+60℃ Design assurance

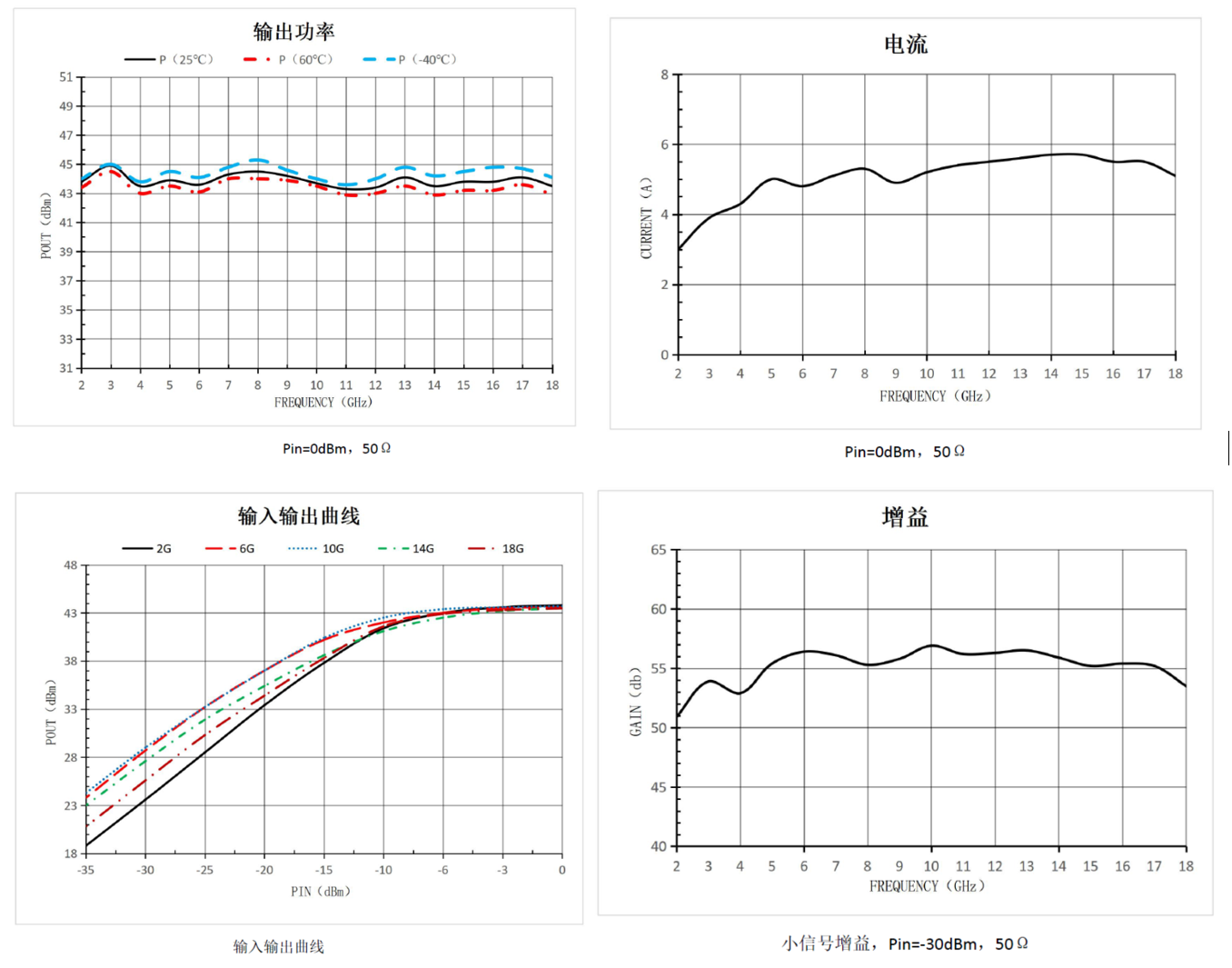

Typical test curve

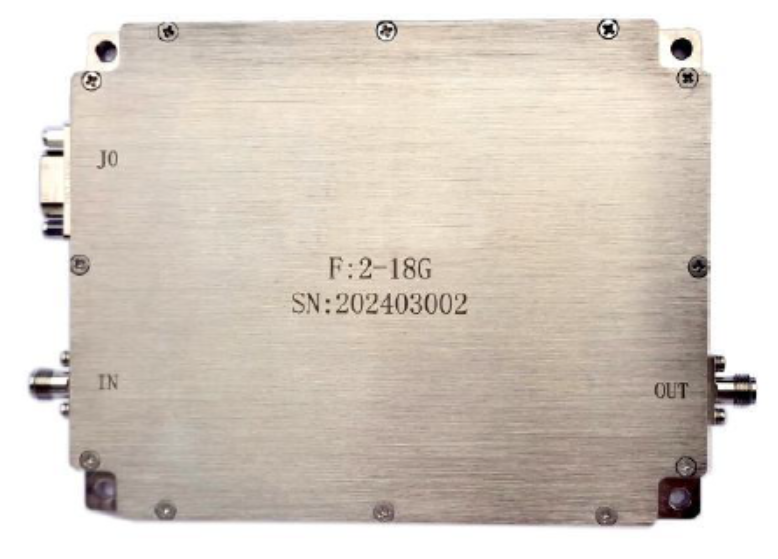

Reference picture

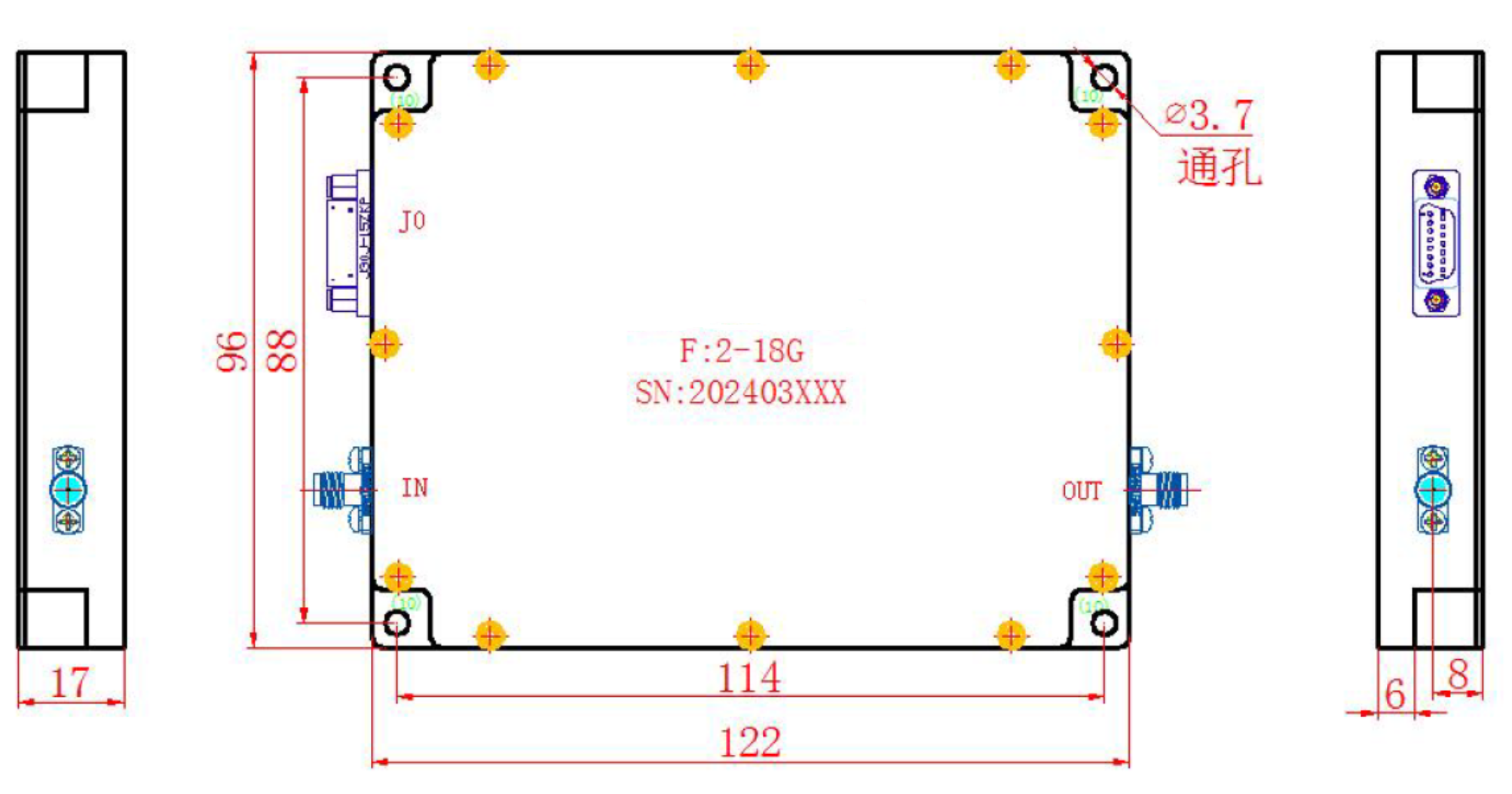

Configuration

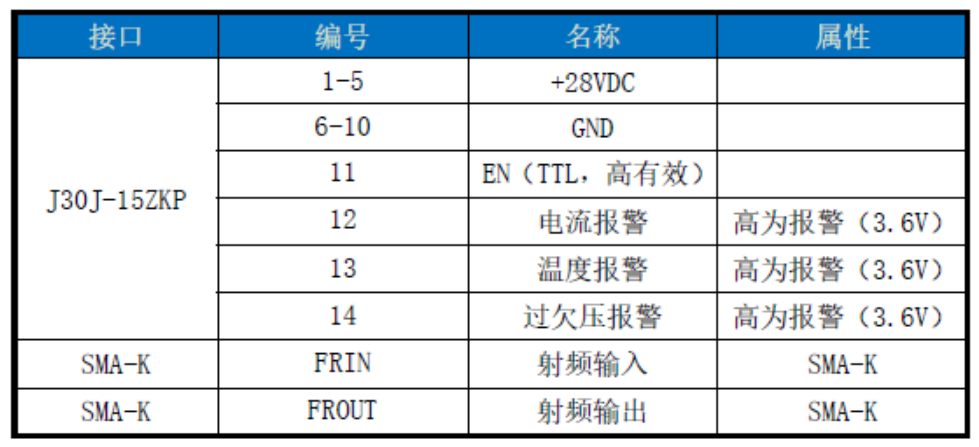

Port Definition
