Power amplifier

1~18GHz, Gain32dB, Psat30dBm, SMA

  • DPA8-1-18G-9667
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Main specifications

ParametersMinTypicalMaxUnits
Frequency1~18GHz
Gain32dB
Gain flatness±2±2.5dB
Input VSWR2
Psat30dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
Working voltage+24V
Working current1200mA
Operation Temp.-40~+60℃ Design assurance
Quality GradeIndustrial grade

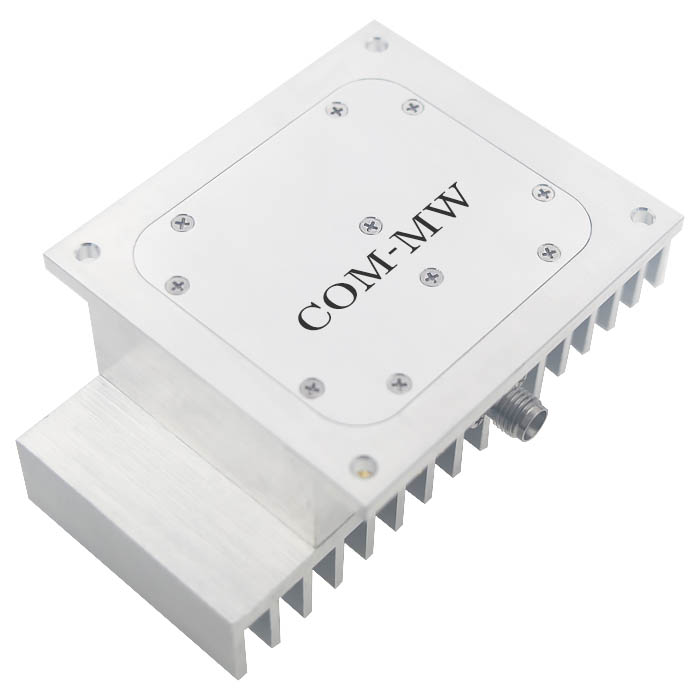

Reference picture

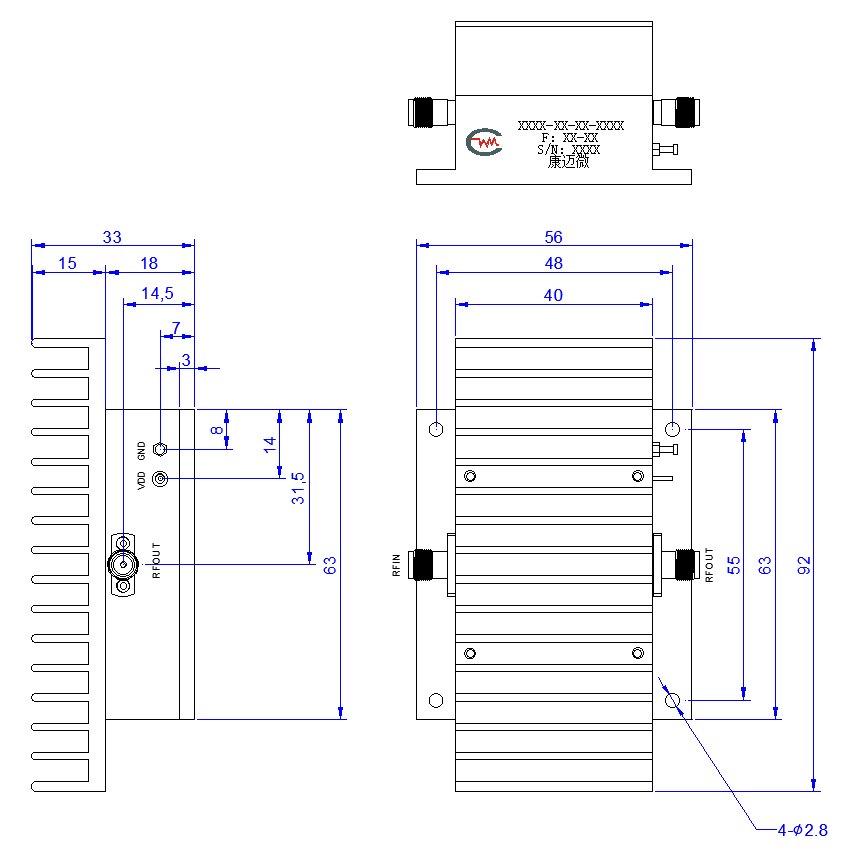

Configuration
