Power amplifier
100~6000MHz, Gain46dB, dBm, SMA
- DPA8-100-6000-3783
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 6000 | MHz |
| Gain | 46 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Input VSWR | 2.2 | |||
| Psat | 30.5 | 34 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +15V |
| Working current | 1000mA |
| Operation Temp. | -40~+60℃ Design assurance |

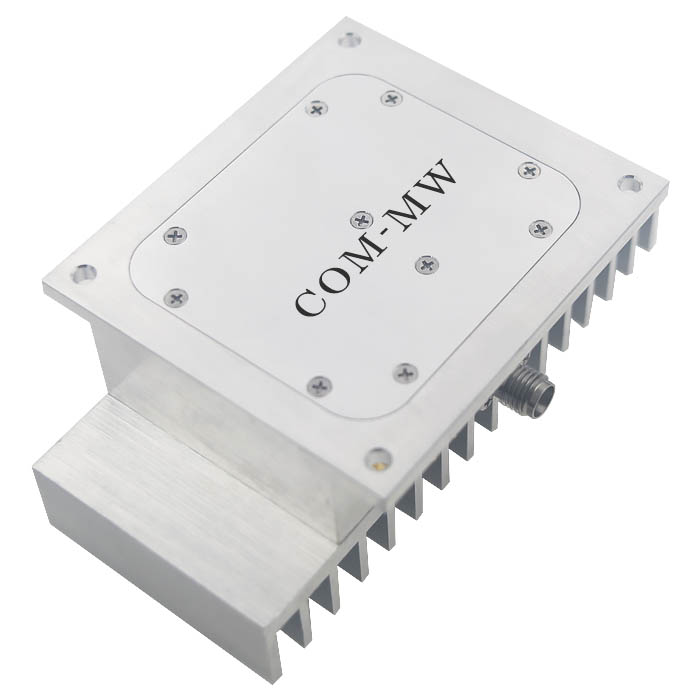

Reference picture

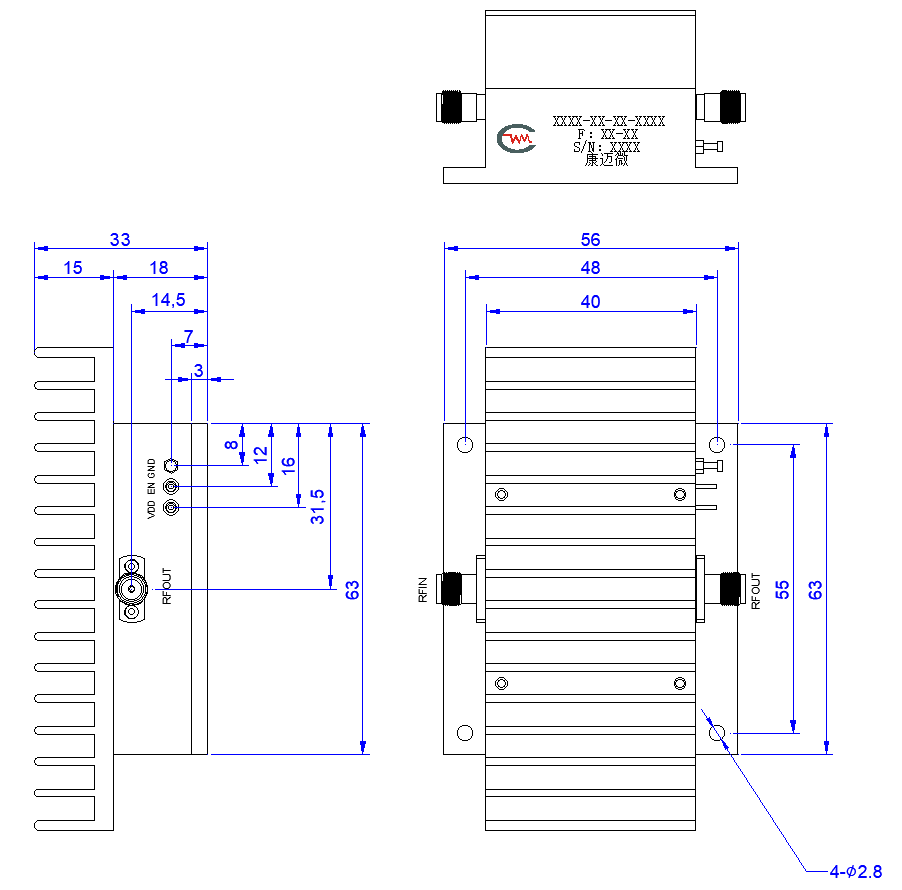

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
