Power amplifier
Adapter power supply
- DPA8-2-6G-17032
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 6 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| P-1dB | 37 | dBm | ||
| Psat | 43 | dBm |
Product Application
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -10~+40℃ Design assurance |
| Application | |
| Characteristic | Adapter power supply |
上电顺序
1、连接适配器；
2、打开电源开关；
3、打开EN开关；
Note: The sequence is reversed when turning off the power
请严格按照上电顺序控制电源，否则有烧毁风险
Port Definition
| Port identification | definition | Illustrate |
| RFin | RF input Port | SMA-K |
| RFout | RF Output Port | SMA-K，使用时，不能悬空 |
| DC | DC power input | +28V直流电源，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | |
| EN | Enable control switch |
Parts list
| 1 | Standard configuration | Equipped with a power adapter |

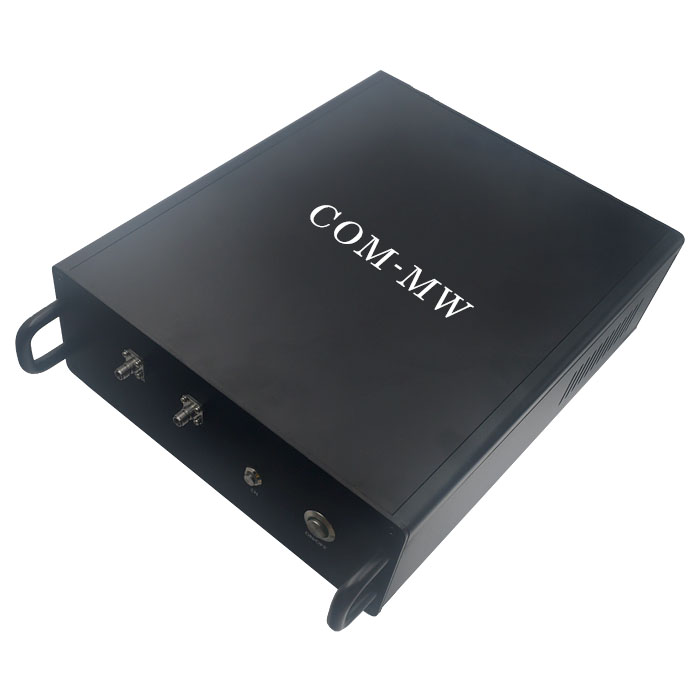

Reference picture

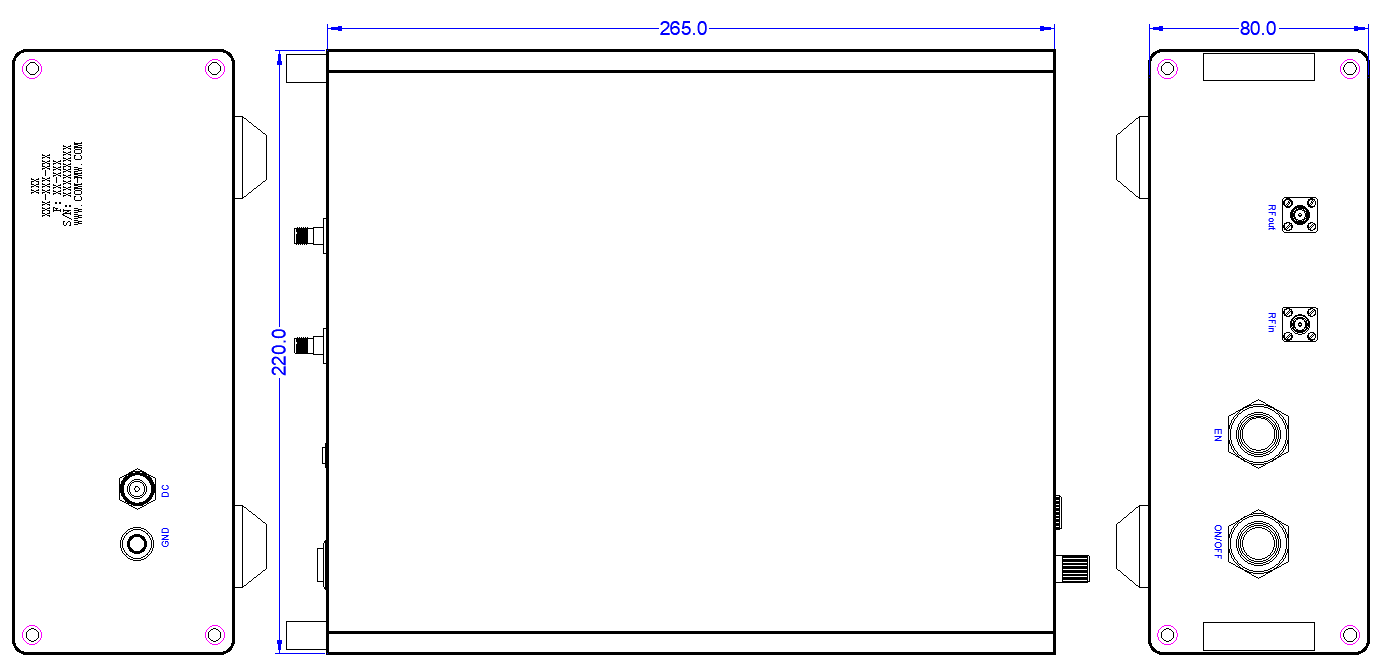

Configuration(mm)
Note
1、使用时射频输出端口不能悬空；
2、长时间使用时请注意工作温度，必要时需要增加外部散热措施；
