LNA

1~18GHz, Gain40dB, Noise figure3.3dB, P-1dB10dBm, SMA

  • DLNA8-1-18G-3024
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency1~18GHz
Gain40dB
Gain flatness±2.5dB
Noise figure3.3dB
VSWR2.3
P-1dB10dBm
Max input power10dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
Working voltage+220V
Operation Temp.-20~+60℃ Design assurance
Quality GradeIndustrial grade
Other01+2071

Instructions for use

1Power supply method 1110-220V power input, standard AC interface, 12-15V/5W output.
2Power supply method 2DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter).
3DC outputThe DC power supply voltage is determined by the input voltage of the internal module.
4Instructions for using the power switch220V and DC power supply cannot be used simultaneously.
5Shell MaterialShell aluminum material
6Surface colorAnodizing treatment (blue)

Parts list

1Standard configuration220V AC power cord
2OptionalEquipped with a power adapter
3Other/

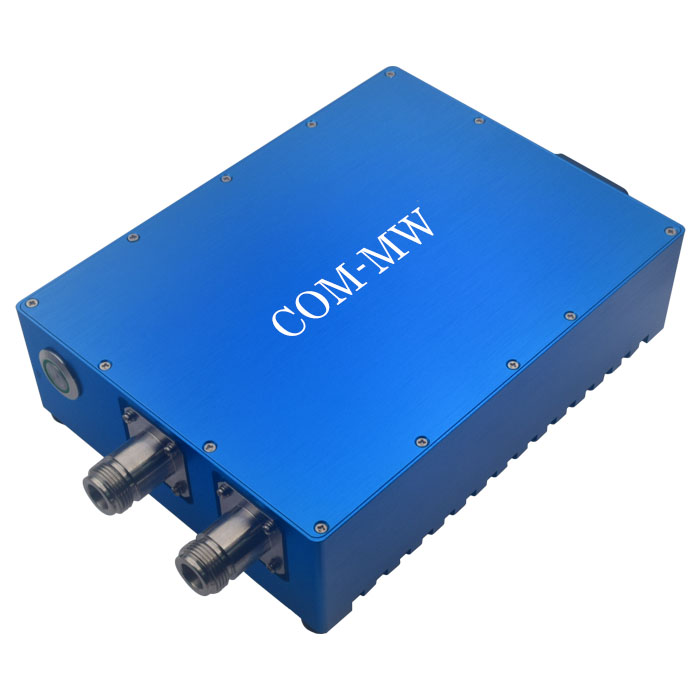

Reference picture

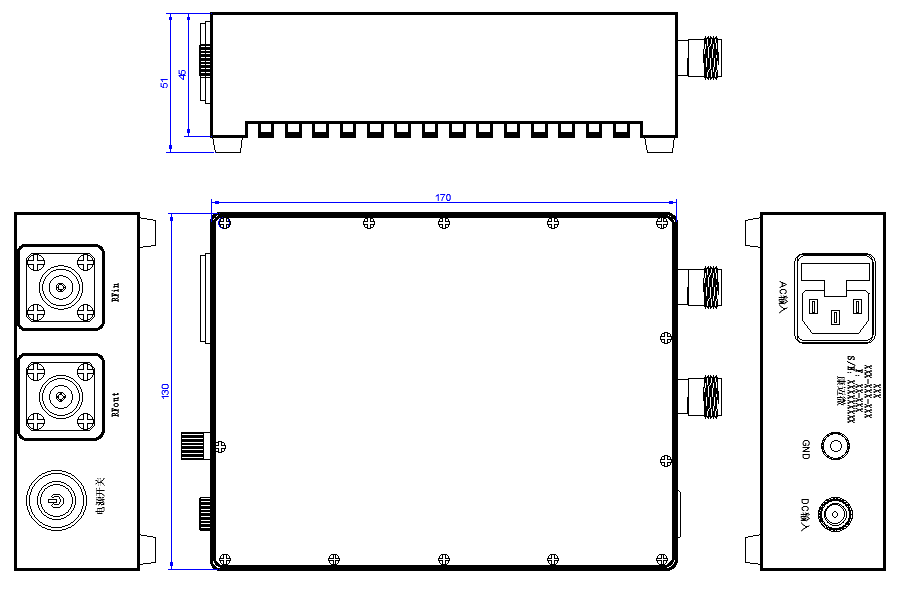

Configuration(mm)

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
