LNA
2~18GHz, Gain20,30,40dBAdjustable, Noise figure6dB, P-1dB9dBm, SMA
- DLNA7-2-18G-848
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, adjustable gain.
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 2 | ~ | 18 | GHz | |
| Gain | 20,30,40 | dB | Adjustable | ||
| Gain flatness | ±3 | dB | |||
| Ripple | 1 | dB | 1G BW | ||
| Noise figure | 6 | dB | 20~40dB gain range | ||
| VSWR | 2.5 | ||||
| P-1dB | 9 | dBm | |||
| Clutter level | -70 | dBm | |||
| Weight | 50 | g |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -40~+55℃ Design assurance |
| Other | 2W continuous wave, pulse 20W (RF input port); Power on state gain 20dB |
Typical test data
| Frequency(GHz) | S11 VSWR | S21 gain | S21 gain | S21 gain |
| 1 | 1.49 | 26.48 | 36.61 | 46.61 |
| 2.29 | 1.41 | 26.83 | 36.65 | 46.58 |
| 3.57 | 1.36 | 26.07 | 36.27 | 46.21 |
| 6.14 | 1.41 | 25.43 | 35.46 | 45.91 |
| 7.43 | 1.5 | 25.4 | 35.38 | 45.87 |
| 8.71 | 1.42 | 25.57 | 36.02 | 46.62 |
| 11.29 | 1.18 | 26.02 | 36.46 | 46.65 |
| 12.57 | 1.27 | 26.01 | 36.79 | 47.06 |
| 13.86 | 1.43 | 26.52 | 36.77 | 47.09 |
| 16.43 | 1.77 | 26.36 | 36.39 | 46.77 |
| 17.71 | 2.14 | 26.74 | 36.79 | 46.79 |
| 19 | 2.26 | 27.07 | 37.04 | 47.01 |

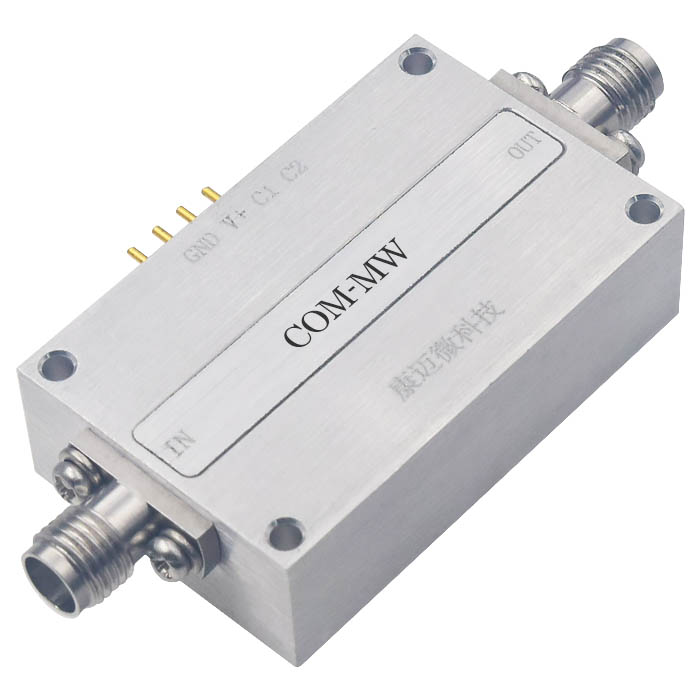

Reference picture

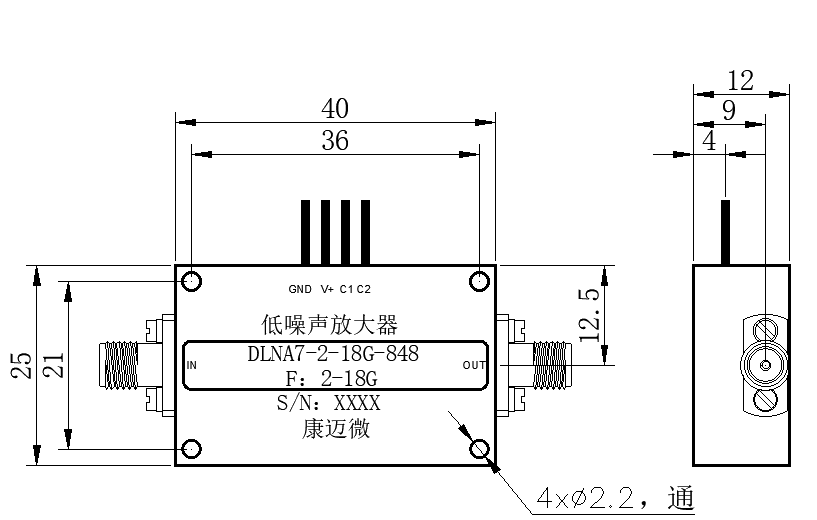

Configuration(mm)

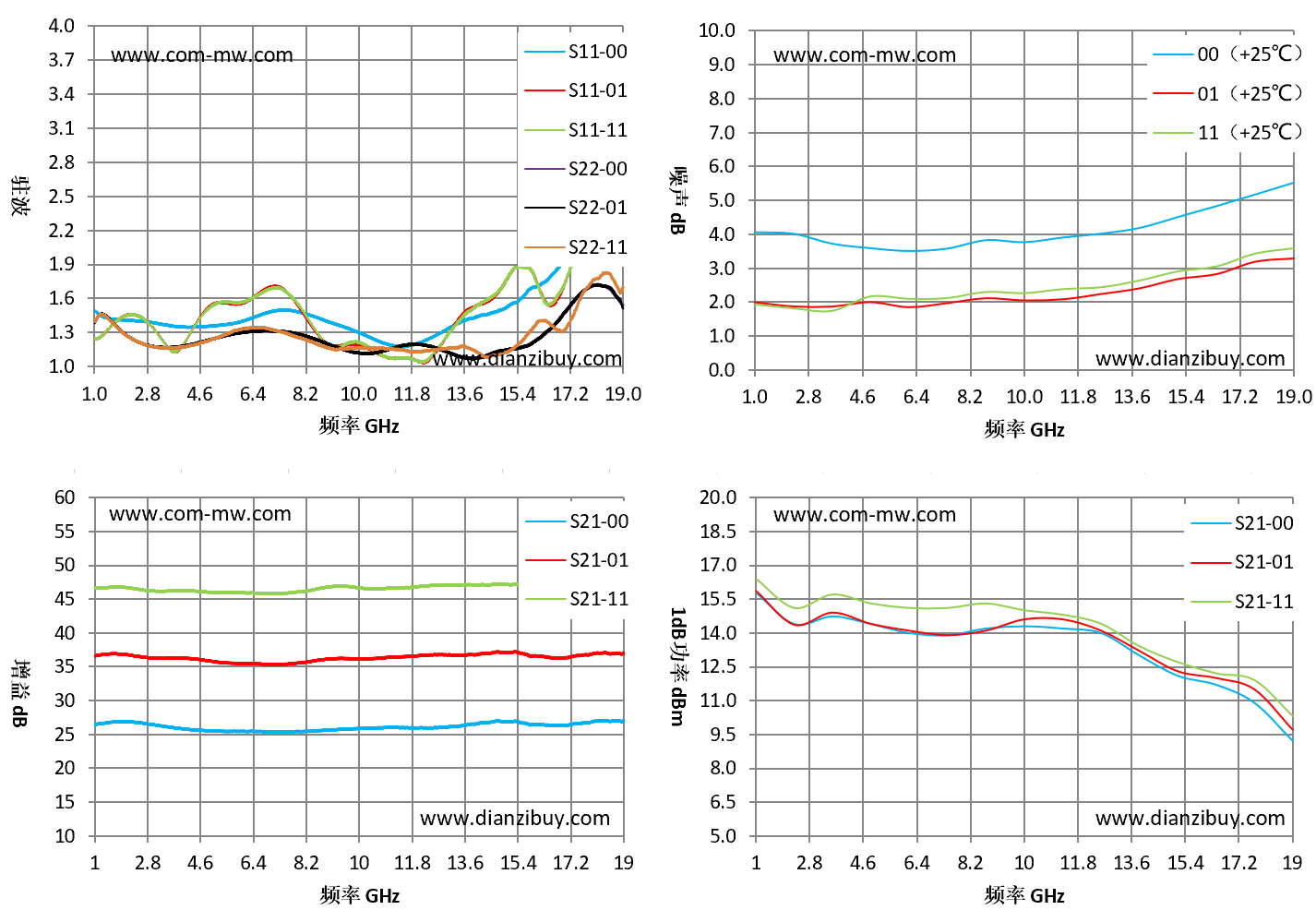

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
