LNA
1500~1600MHz, Gain35dB, Noise figure0.88dB, P-1dB15dBm, N
- DLNA8-1500-1600-2454
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low noise, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1500 | ~ | 1600 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 0.88 | dB | ||
| VSWR | 1.5 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | N -JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Power supply interface: 3.5mm DC power supply interface |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | P-1dB |
| 1500 | 1.39 | 1.4 | 36.05 | 0.53 | 17.58 |
| 1507.14 | 1.38 | 1.4 | 36.03 | 0.56 | 17.55 |
| 1514.29 | 1.37 | 1.39 | 36.04 | 0.55 | 17.53 |
| 1521.43 | 1.38 | 1.37 | 36.07 | 0.44 | 17.57 |
| 1528.57 | 1.38 | 1.37 | 36.06 | 0.49 | 17.6 |
| 1535.71 | 1.37 | 1.36 | 36.1 | 0.5 | 17.62 |
| 1542.86 | 1.38 | 1.35 | 36.1 | 0.57 | 17.63 |
| 1550 | 1.37 | 1.34 | 36.1 | 0.58 | 17.64 |
| 1557.14 | 1.38 | 1.33 | 36.11 | 0.49 | 17.68 |
| 1564.29 | 1.38 | 1.33 | 36.12 | 0.55 | 17.63 |
| 1571.43 | 1.38 | 1.33 | 36.1 | 0.52 | 17.6 |
| 1578.57 | 1.39 | 1.31 | 36.11 | 0.59 | 17.53 |
| 1585.71 | 1.38 | 1.32 | 36.13 | 0.62 | 17.45 |
| 1592.86 | 1.37 | 1.31 | 36.11 | 0.6 | 17.38 |
| 1600 | 1.38 | 1.29 | 36.06 | 0.57 | 17.33 |

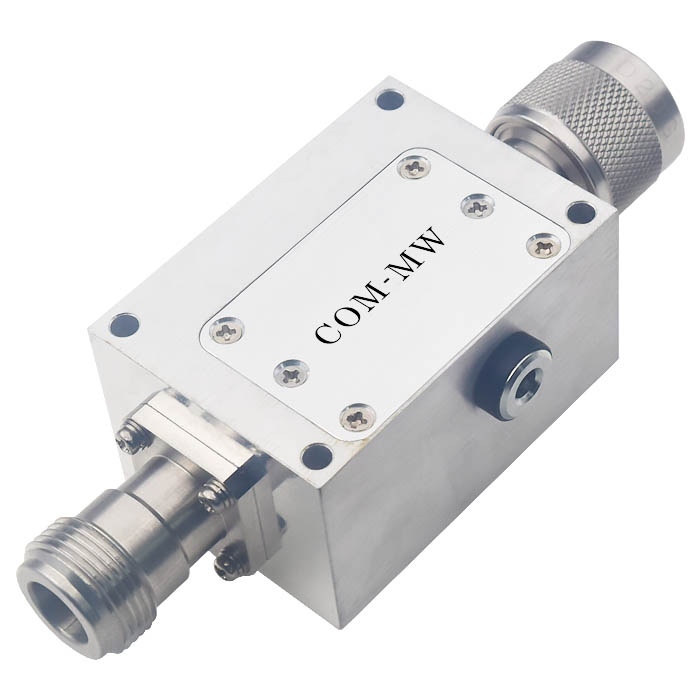

Reference picture
Configuration(mm)

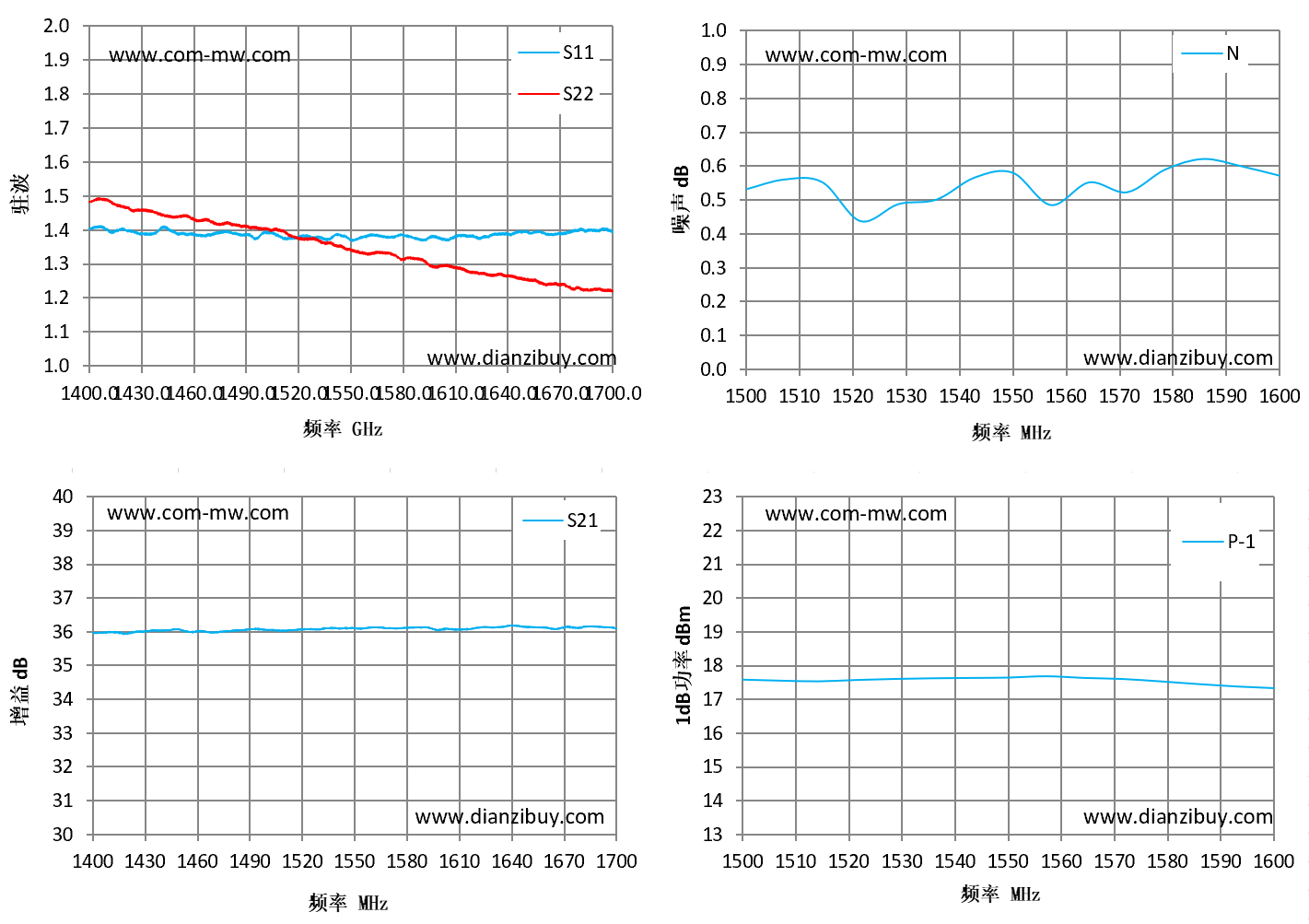

Typical test curve
