Tripod
Lifting height2m, 3/8 " Male Thread
- TXJ7-2000-1257
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
This non-metallic tripod can be bi-directional retractable, with a height adjustable range of 1.2 meters to 2 meters. The main body is made of epoxy glass fiber and PVC material to avoid electromagnetic wave reflection. The antenna can be directly installed onto the 3/8 "male thread on the top of the tripod, or customized structural components can be used to install the antenna. It is mainly used for field strength testing in shielded or dark rooms.
Main specifications
| Parameters | Min | Max | Units |
| Lifting height | 0.92 | 2 | m |
| Folding height | 0.92 | m | |
| Support rod straight diameter | 22 | mm |
Other parameters
| Connector | 3/8 " Male Thread |
| Outline size | 180*180*920mm |
| Estimated weight | 2.7Kg |
| Estimate vertical load-bearing capacity | 15Kg |
| Material | Epoxy glass fiber |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | Equipped with a metal clamp, the diameter of the clamping cylinder is 22mm, and the metal clamp is detachable |

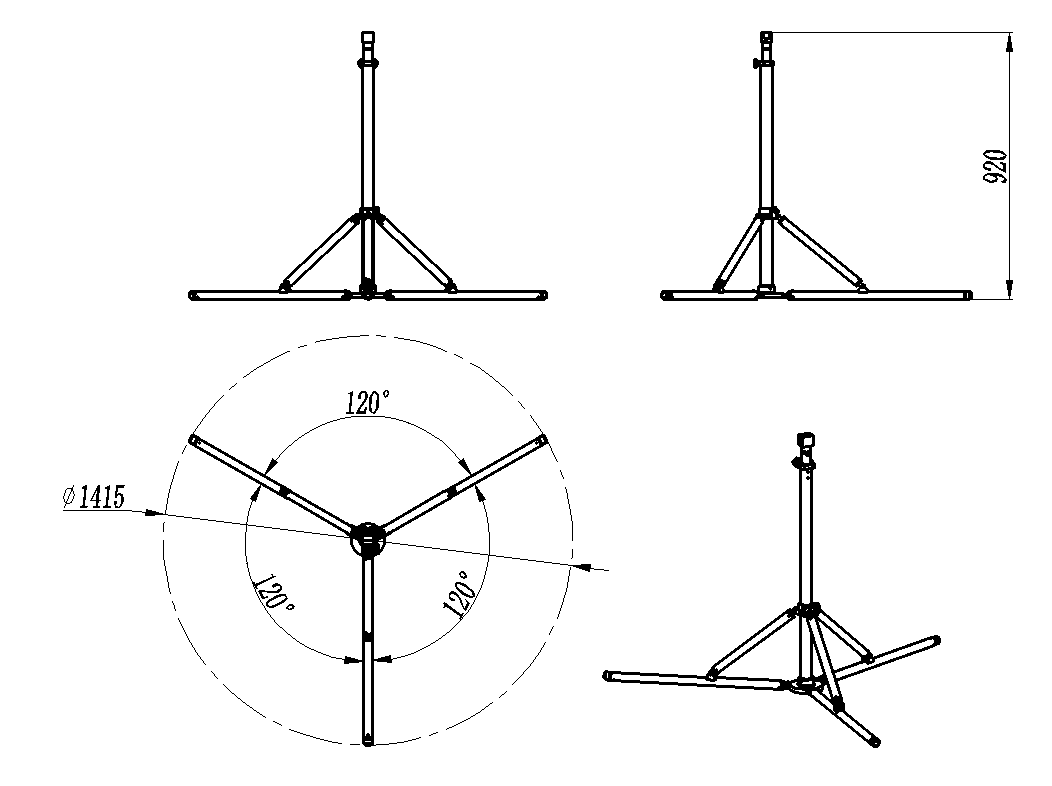

Configuration(mm)
Note
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.

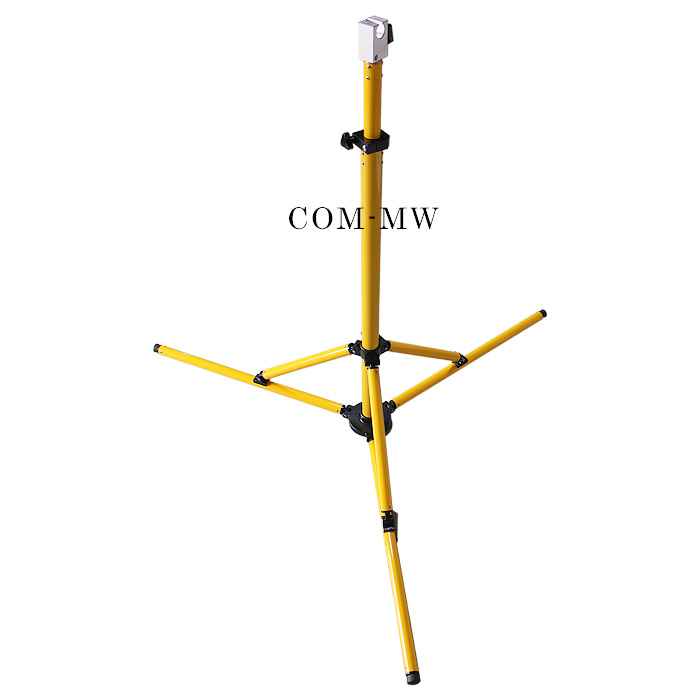

Reference picture
