Power amplifier

1.9~2.7GHz, Gain10dB, Psat30dBm, N, N

  • DPA17-1.9-2.7G-121
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

Tech specifications

ParametersMinTypicalMaxUnits
Frequency1.9~2.7GHz
Gain10dB
Gain flatness±1dB
VSWR2
P-1dB29dBm
Psat30dBm
Max input power20dBm
Spur reduction40dBc
Harmonic Rejection30dBc

Environmental

Input connectorN -J
Output portN -K
Impedance50Ω
Working voltage+12V
Working current≤1A
Operation Temp.-45~+75℃ Design assurance
Storage Temp.-55~+85℃ Design assurance
Quality GradeIndustrial grade

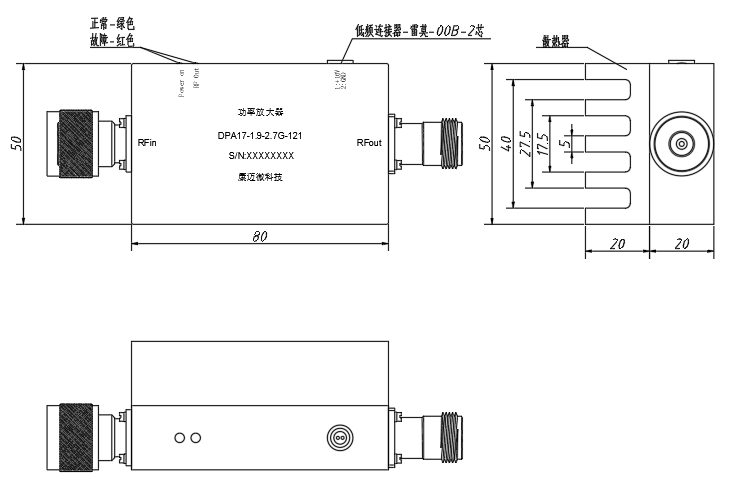

Configuration

Typical test curve
