LNA

0.009~3000MHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, SMA

Model:DLNA9-0.009-3000-1166
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS: no(Customization Needed for ROHS Compliance)
The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

3D Outline Drawing

Product features

Broadband, low loss.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.009	~	3000	MHz
Gain	40			dB
Gain flatness		3	4	dB
Noise figure		2.5	3	dB
VSWR		2	2.5
P-1dB	10			dBm

Other parameters

Connector	SMA-K detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	White
Working voltage	+12V
Working current	300mA
Reverse isolation	70dB
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency MHz	S11 VSWR	S22 VSWR	S21 Gain	S21 Noise	S21 P-1dB
0.009	1.28	2.42	43.15	/	/
10	1.28	1.63	43.44	1.63	17.80
300	1.38	1.59	44.22	0.76	17.10
580	1.28	1.66	44.33	0.88	17.00
870	1.21	1.79	44.70	0.79	16.60
1150	1.26	1.87	44.72	1.03	16.32
1440	1.41	1.90	44.57	1.24	16.10
1720	1.51	1.79	44.76	1.20	15.80
2010	1.55	1.58	44.94	1.15	15.30
2290	1.60	1.47	44.75	1.16	15.10
2580	1.69	1.36	44.30	1.33	15.00
2860	1.77	1.27	43.71	1.50	14.60
3150	1.96	1.22	43.02	1.54	14.20
3430	2.27	1.32	42.36	1.40	13.90
3720	2.80	1.38	41.75	1.24	13.30
4000	3.38	1.29	41.34	1.36	12.50

Reference picture

Configuration(mm)

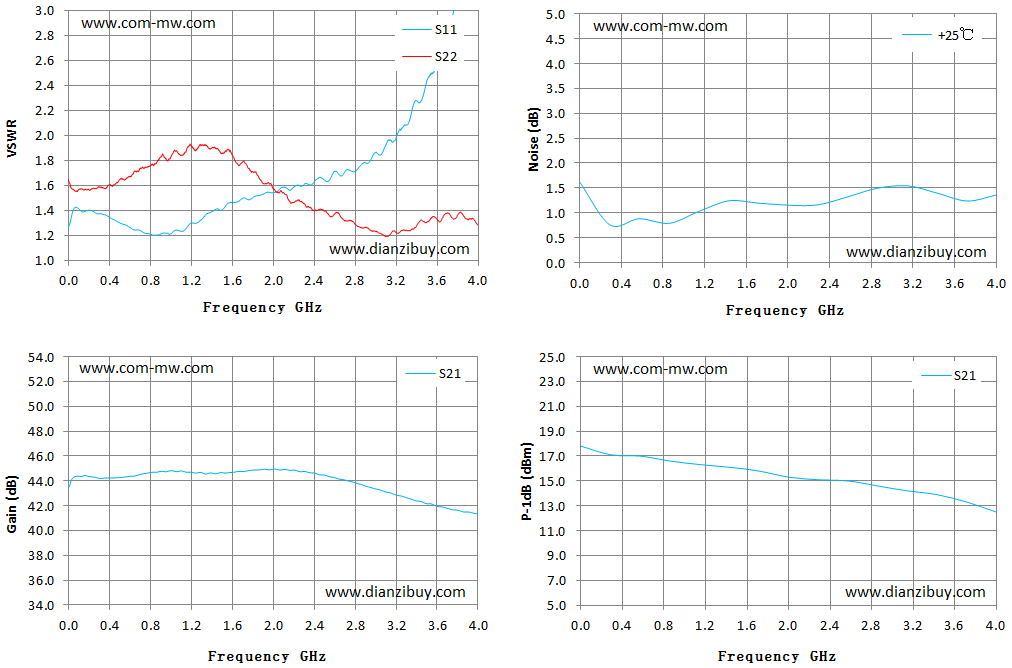

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
