LNA
3~5GHz, Gain25dB, Noise figure1dB, P-1dB13dBm, SMA
- DLNA8-3000-5000-1000
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 3 | ~ | 5 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 1 | 1.3 | dB | |
| VSWR | 2 | |||
| P-1dB | 13 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +5V |
| Working current | 60mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | S21 P-1dB |
| 2 | 3.16 | 1.4 | 25.93 | 1.16 | 15.3 |
| 2.29 | 2.32 | 1.37 | 26.11 | 0.69 | 14.7 |
| 2.57 | 1.92 | 1.48 | 26.5 | 0.76 | 14.4 |
| 2.86 | 1.67 | 1.59 | 26.9 | 0.97 | 14.3 |
| 3.14 | 1.48 | 1.66 | 27.24 | 1.01 | 14 |
| 3.43 | 1.3 | 1.67 | 27.41 | 0.84 | 13.6 |
| 3.71 | 1.15 | 1.64 | 27.56 | 0.78 | 13.9 |
| 4 | 1.05 | 1.62 | 27.84 | 0.8 | 13.7 |
| 4.29 | 1.18 | 1.63 | 27.81 | 0.86 | 13.9 |
| 4.57 | 1.36 | 1.68 | 27.69 | 0.88 | 13.8 |
| 4.86 | 1.57 | 1.74 | 27.43 | 0.99 | 13.7 |
| 5.14 | 1.77 | 1.78 | 27.1 | 1.15 | 13.6 |
| 5.43 | 2.01 | 1.77 | 26.64 | 1.16 | 13.7 |
| 5.71 | 2.21 | 1.73 | 25.89 | 1.07 | 13.6 |
| 6 | 2.39 | 1.67 | 25.03 | 0.93 | 13.8 |
Reference picture
Configuration(mm)

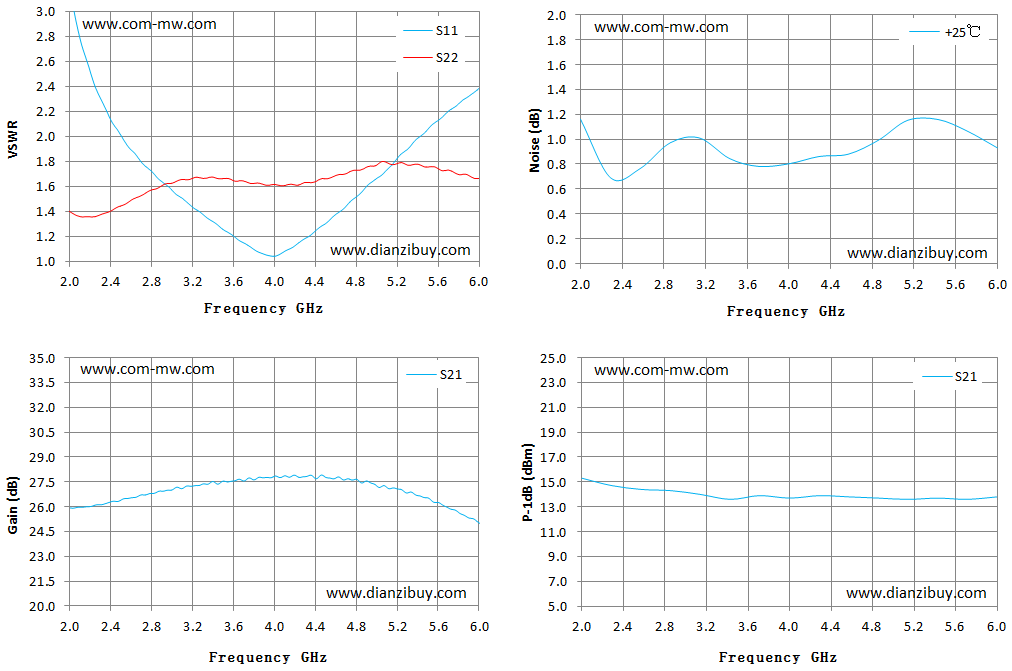

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
