LNA
1~32GHz, GaindB, Noise figure8dB, P-1dB13dBm, 2.92-K
- DLNA12-1-32G-221
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise, and adjustable gain
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 32 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 8 | dB | ||
| VSWR | 2 | |||
| P-1dB | 13 | dBm | ||
| Attenuation range | 0 | 32 | dB | |
| Attenuation step | 0.5 | dB |
Other parameters
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +6V |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Attenuation Control Truth Table
| state | T1 | T2 | T3 | T4 | T5 | T6 |
| 0dB | 0V | 0V | 0V | 0V | 0V | 0V |
| 0.5dB | +3.3V | 0V | 0V | 0V | 0V | 0V |
| 1dB | 0V | +3.3V | 0V | 0V | 0V | 0V |
| 2dB | 0V | 0V | +3.3V | 0V | 0V | 0V |
| 4dB | 0V | 0V | 0V | +3.3V | 0V | 0V |
| 8dB | 0V | 0V | 0V | 0V | +3.3V | 0V |
| 16.5dB | 0V | 0V | 0V | 0V | 0V | +3.3V |

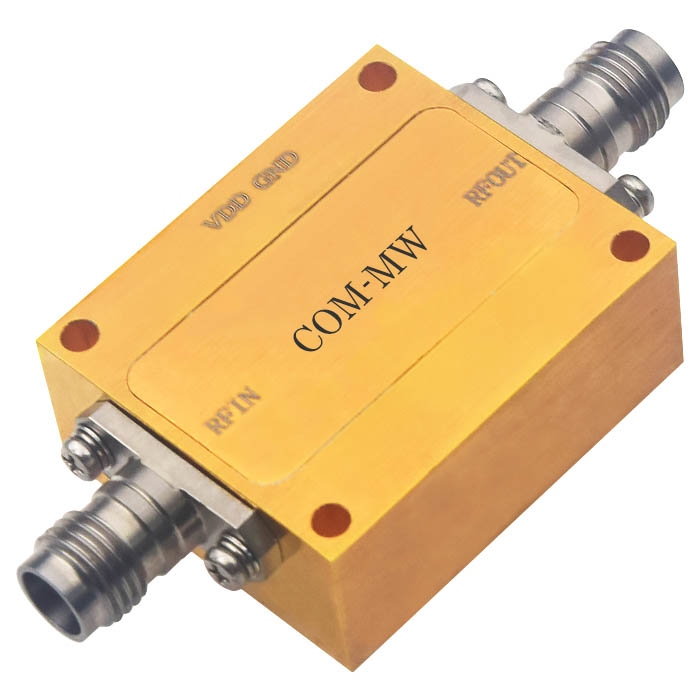

Reference picture

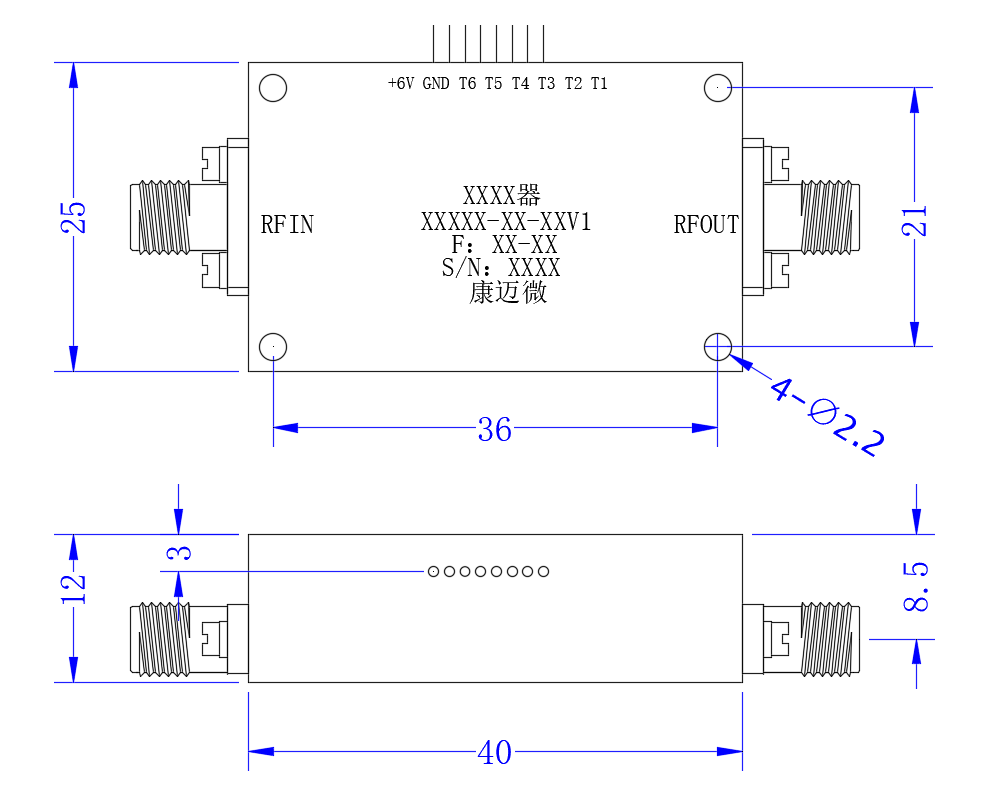

Configuration(mm)

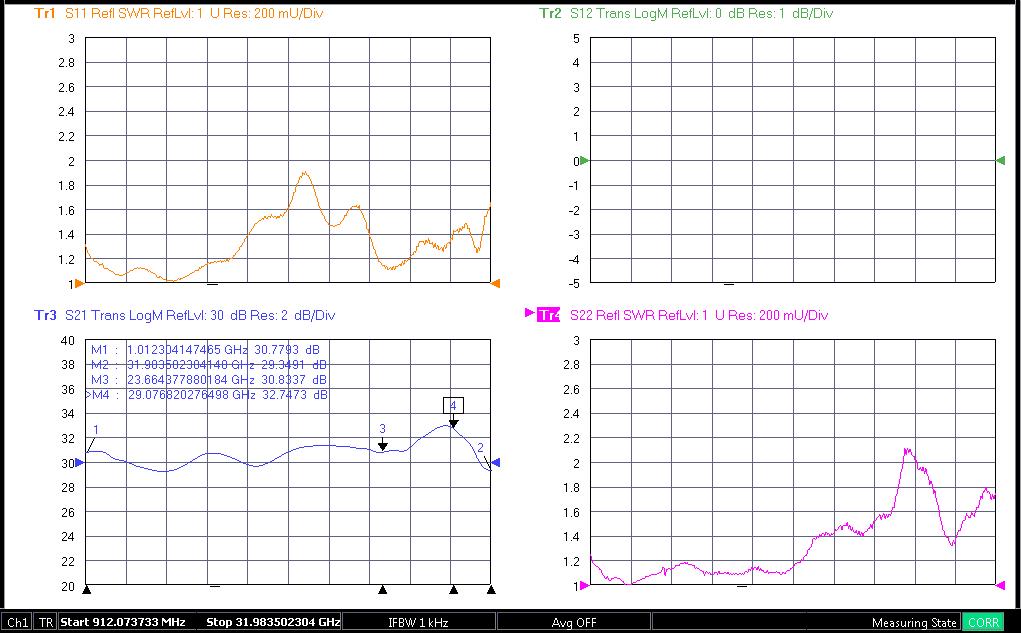

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
