Planar spiral antenna
Frequency2~18GHz, Gain-2dBi, Right-handed circular polarization, SMA-K
- ZLX7-Y2-18G-664
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
The planar spiral antenna has the characteristics of ultra bandwidth, low voltage standing wave ratio, stable performance, compact structure, and light weight. Customized right or left circularly polarized planar spiral antennas according to customer requirements.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | -2 | dBi | ||
| VSWR | 2 | |||
| AR | 4 | dB |
Other parameters
| Polarization | Right-handed circular polarization |
| Power Capacity | 1W Design assurance |
| Connector | SMA-K |
| Outline size | φ60*59mm |
| Estimated weight | 200g |
| Surface | Grey |
| Operation Temp. | -25~+45℃ Design assurance |

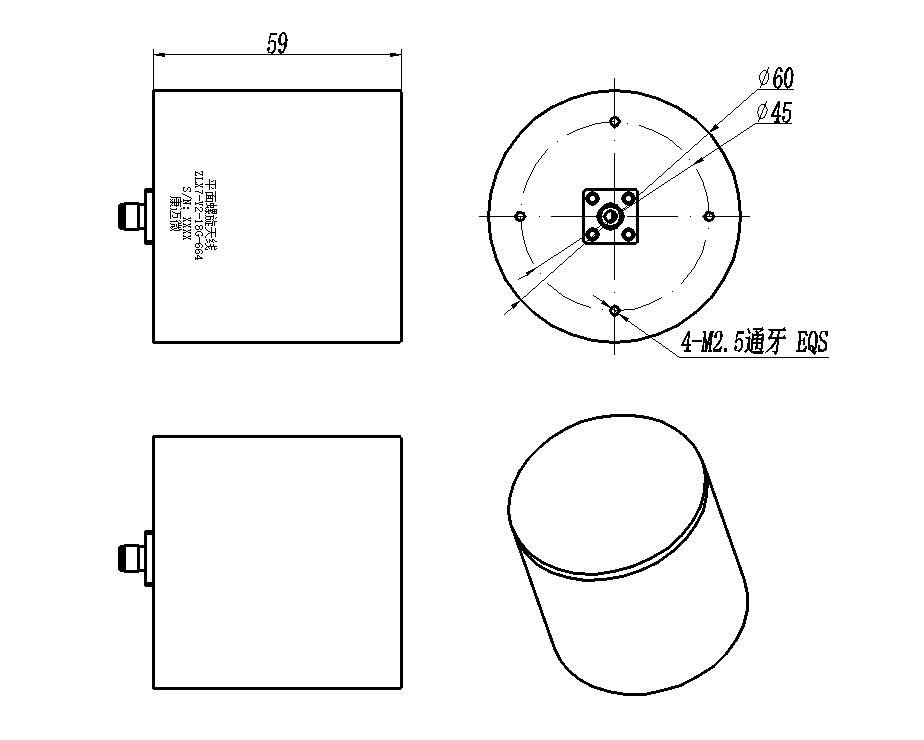

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

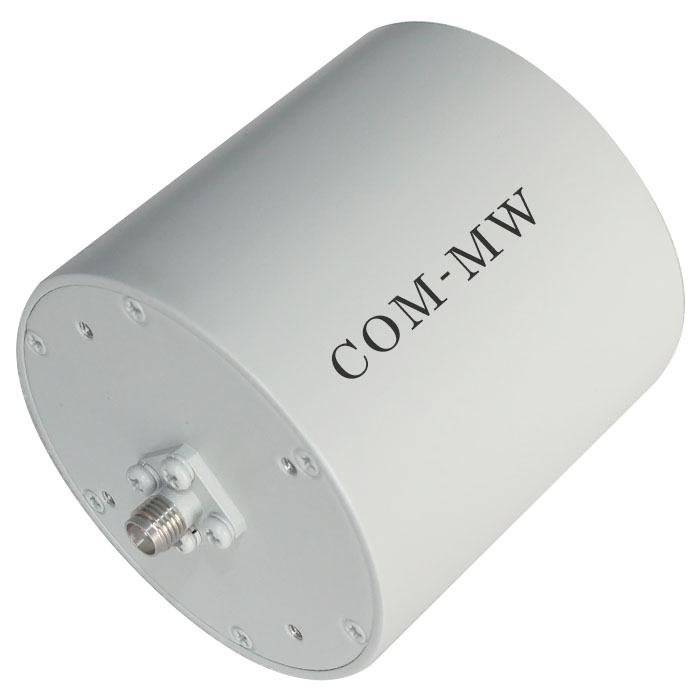

Reference picture

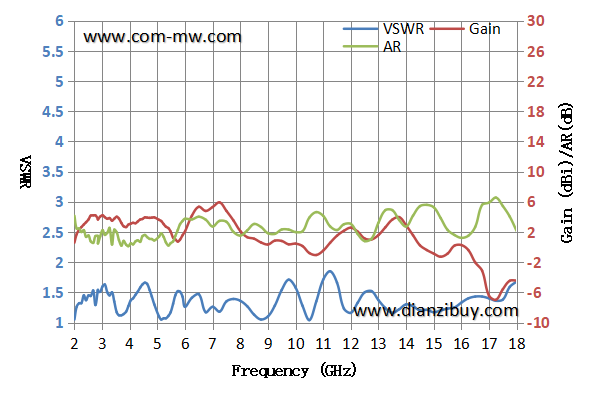

Typical test curve

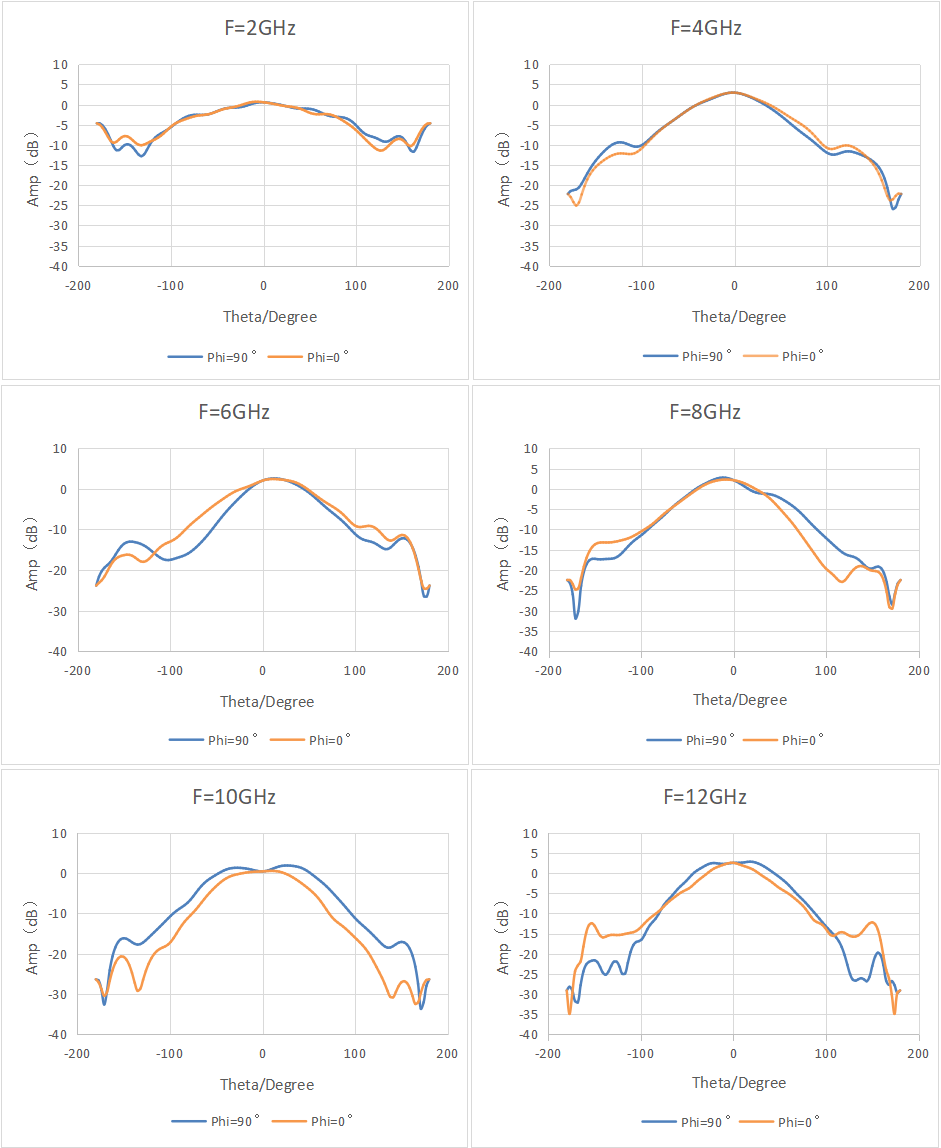

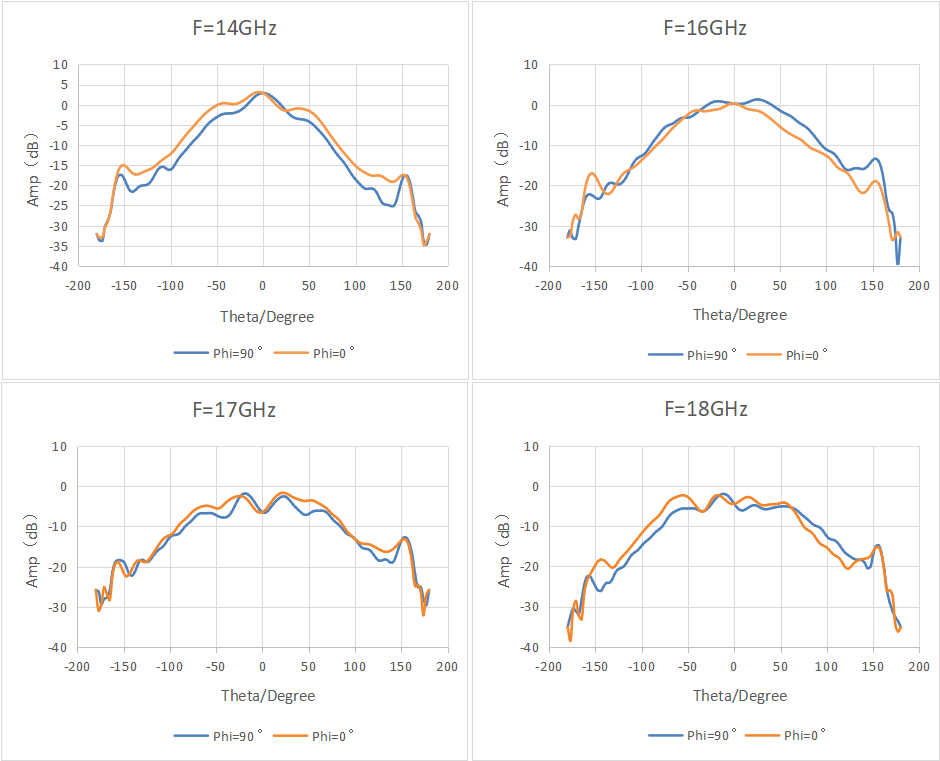

Typical antenna pattern
