Microstrip antenna
Frequency15~17GHz, Gain5dBi, Left-hand circular polarization, SMA-K
- ZWD7-Z15-17G-593
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
The Microstrip antenna has the characteristics of light weight, small size, etc. It can achieve a higher gain microstrip array antenna through multi element array.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 15 | ~ | 17 | GHz |
| Gain | 5 | dBi | ||
| VSWR | 1.8 |
Other parameters
| Polarization | Left-hand circular polarization |
| Power Capacity | 5W Design assurance |
| Connector | SMA-K |

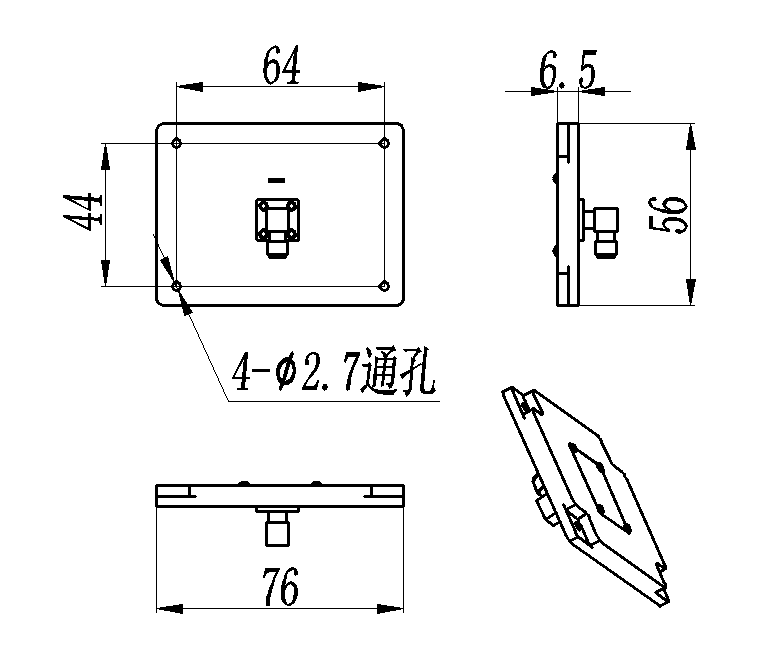

| Outline size | 76*56*6.5mm |
| Estimated weight | 80g |
| Surface | Color conductive oxidation |
| Operation Temp. | -40~+75℃ Design assurance |
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

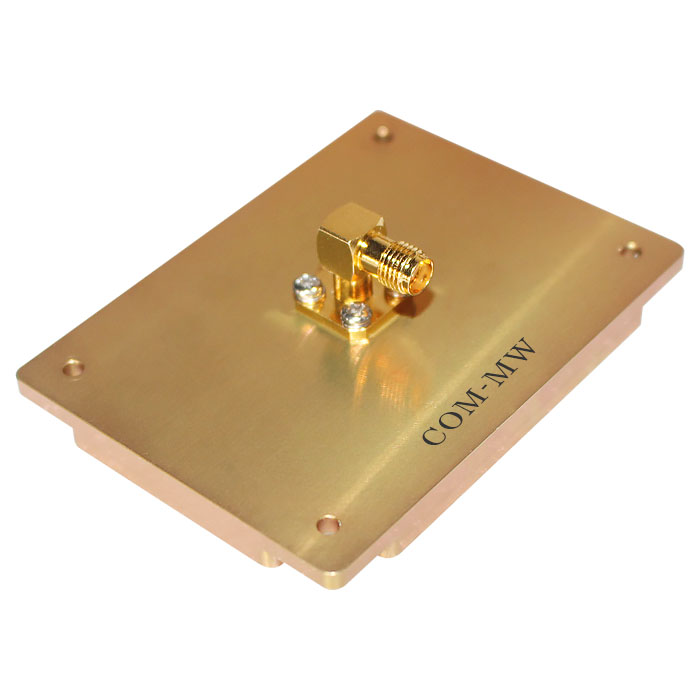

Reference picture
