LNA
0.01~67GHz, Gain45dB, Noise figure8.5dB, P-1dB13dBm, 1.85
- DLNA8-0.01-67G-9193
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 67 | GHz |
| Gain | 45 | dB | ||
| Noise figure | 8.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 13 | dBm | ||
| Psat | 17 | dBm |
Other parameters
| Connector | 1.85-F or K |
| Impedance | 50Ω |
| Working voltage | +8V |
| Working current | 600mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dBm | S21 Psat dBm |
| 0.01 | 1.13 | 1.84 | 52.01 | 15.35 | 18.71 |
| 0.1 | 1.11 | 1.54 | 54.70 | 15.79 | 19.37 |
| 0.5 | 1.13 | 1.71 | 51.34 | 14.18 | 18.50 |
| 1 | 1.16 | 1.75 | 50.66 | 14.33 | 18.52 |
| 4.5 | 1.32 | 1.64 | 52.91 | 15.33 | 19.07 |
| 8 | 1.12 | 1.25 | 52.99 | 15.67 | 19.59 |
| 11.5 | 1.21 | 1.60 | 53.23 | 16.75 | 20.37 |
| 15 | 1.26 | 1.35 | 58.70 | 16.91 | 20.47 |
| 18.5 | 1.59 | 1.33 | 57.45 | 16.57 | 19.83 |
| 22 | 1.59 | 1.69 | 53.18 | 15.55 | 19.29 |
| 25.5 | 1.31 | 1.75 | 53.76 | 15.71 | 19.01 |
| 29 | 1.10 | 1.16 | 51.93 | 15.50 | 19.07 |
| 32.5 | 1.23 | 1.49 | 53.88 | 15.64 | 18.94 |
| 36 | 1.19 | 1.33 | 55.75 | 15.10 | 19.00 |
| 39.5 | 1.58 | 1.23 | 55.86 | 13.26 | 18.80 |
| 43 | 1.86 | 1.83 | 55.08 | 13.09 | 19.30 |
| 46.5 | 1.87 | 2.91 | 49.22 | 14.93 | 18.49 |
| 50 | 1.99 | 1.16 | 55.49 | 14.78 | 18.70 |

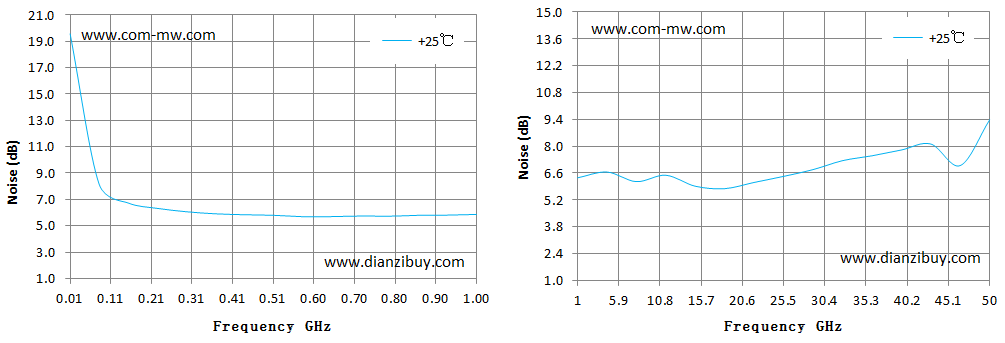

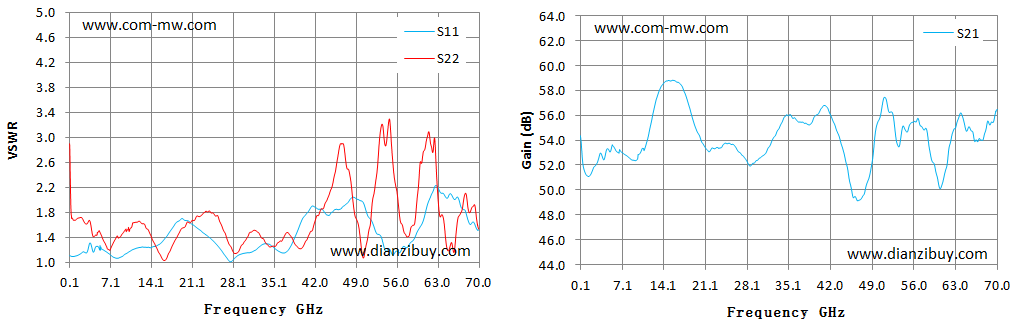

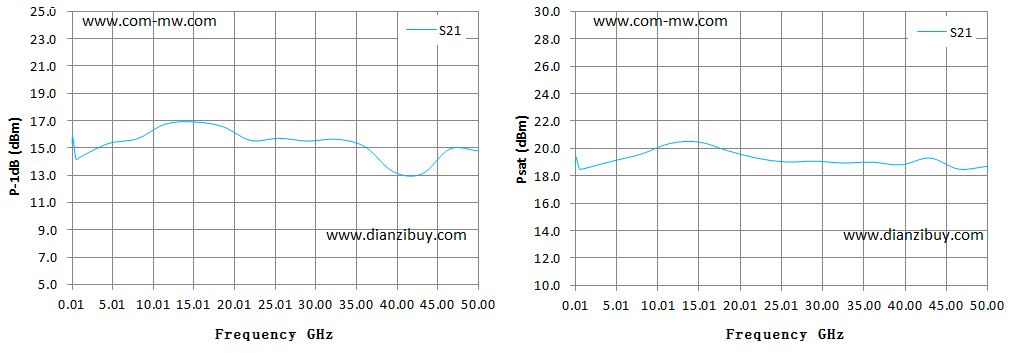

Typical test curve

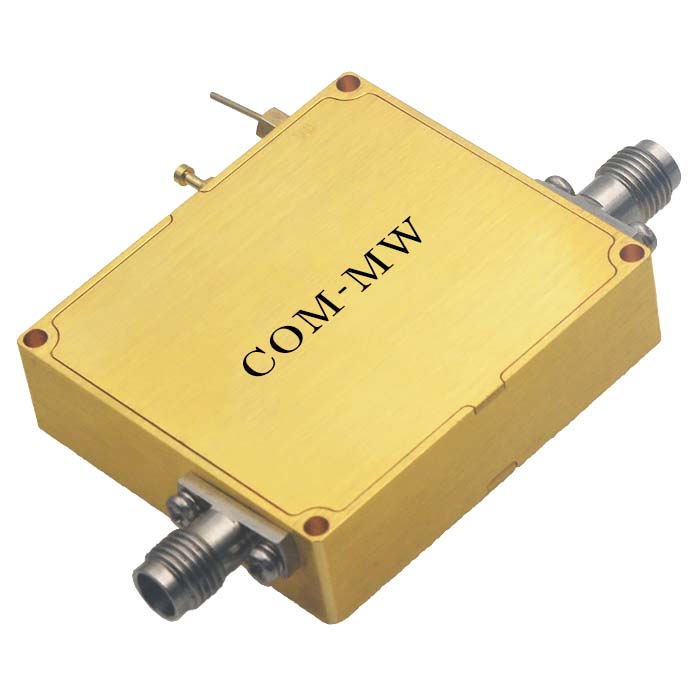

Reference picture

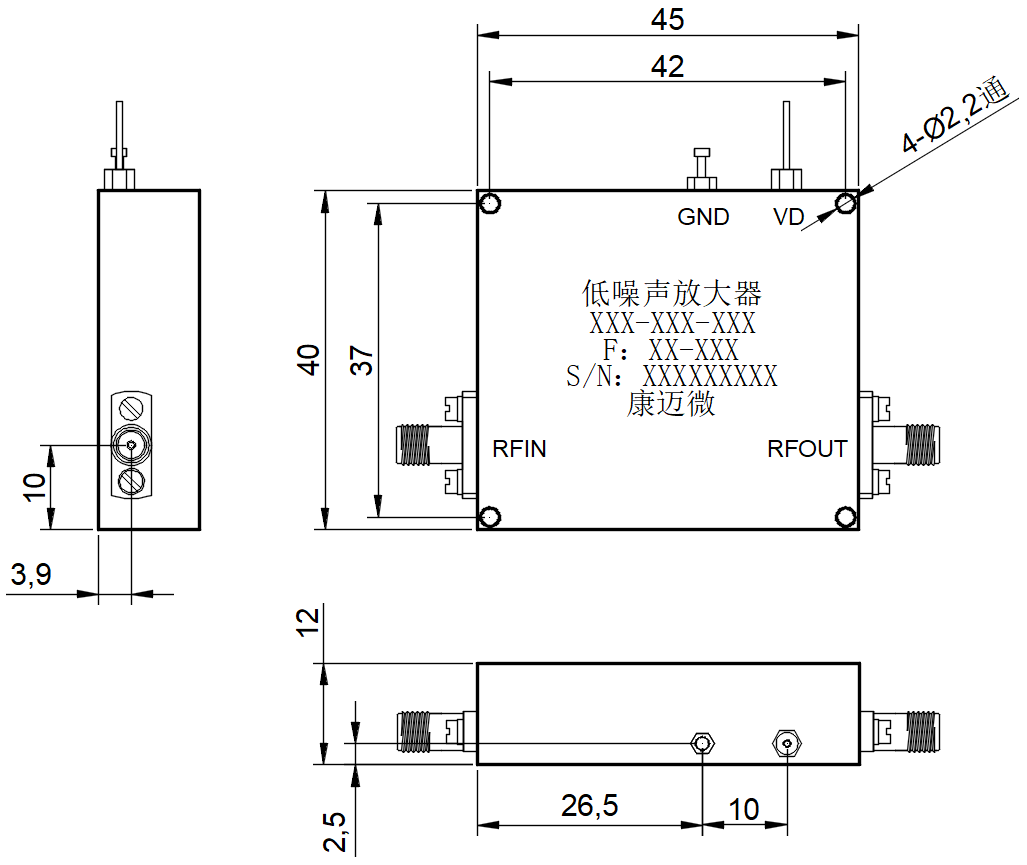

Configuration(mm)
Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
