LNA

800~3000MHz, Gain50dB, Noise figure1dB, P-1dB10dBm

  • DLNA8-0.8-3G-3444
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency800~3000MHz
Gain50dB
Gain flatness±2dB
Noise figure0.71dB
VSWR2
P-1dB10dBm
Max input power10dBm

Other parameters

ConnectorN-M or SMA-F
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance
OtherPower supply connector GX12-4; Protection level IP65

GX12-4 Interface Definition

No.definitionNote
1+12V
2+12V
3GND
4GND

Typical test data

Frequency MHzS11 VSWRS22 VSWRS12 gain dBS12 P-1S12 Psat dBmS12 Noise
4003.822.5740.15-3.982.821.1
6142.941.651.218.2911.611.03
8291.721.1160.3111.813.470.76
10431.371.3558.712.6913.680.37
12571.61.4358.7514.2815.240.58
14711.431.5160.4514.5215.580.79
16861.151.486114.4315.610.85
19001.151.486114.4315.610.9
21141.141.4761.3314.2215.010.85
23291.321.3961.4913.8314.610.83
25431.411.2761.4213.7214.581
27571.421.2360.9813.6914.521
29711.551.3960.4313.7614.580.82
31861.681.758.8513.8614.70.83
40001.761.9456.8714.1514.951.11

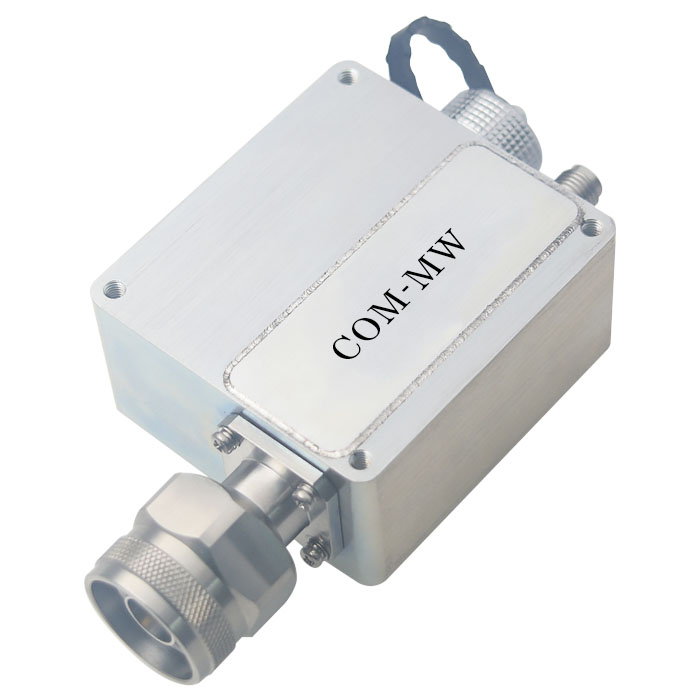

Reference picture

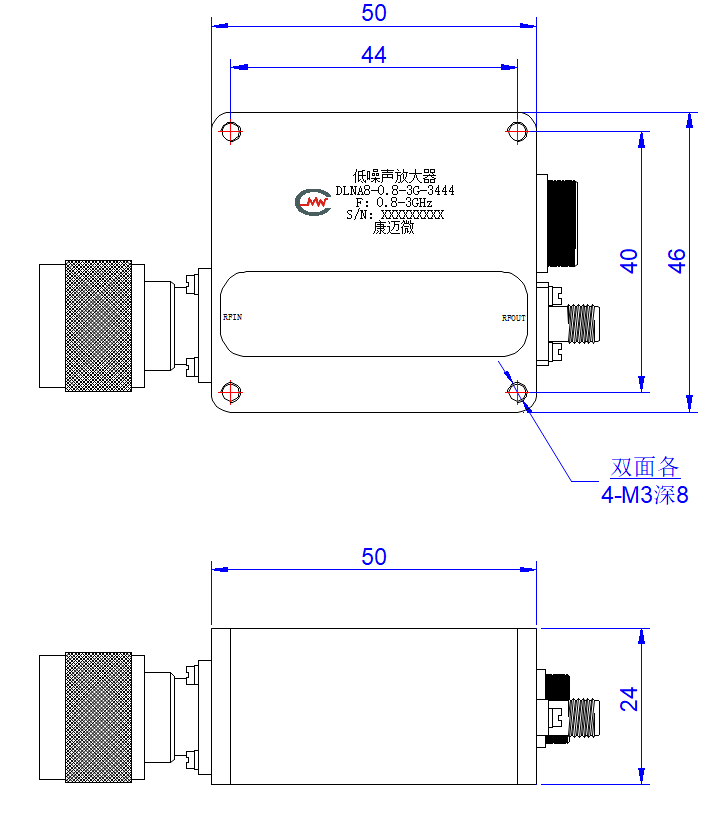

Configuration(mm)

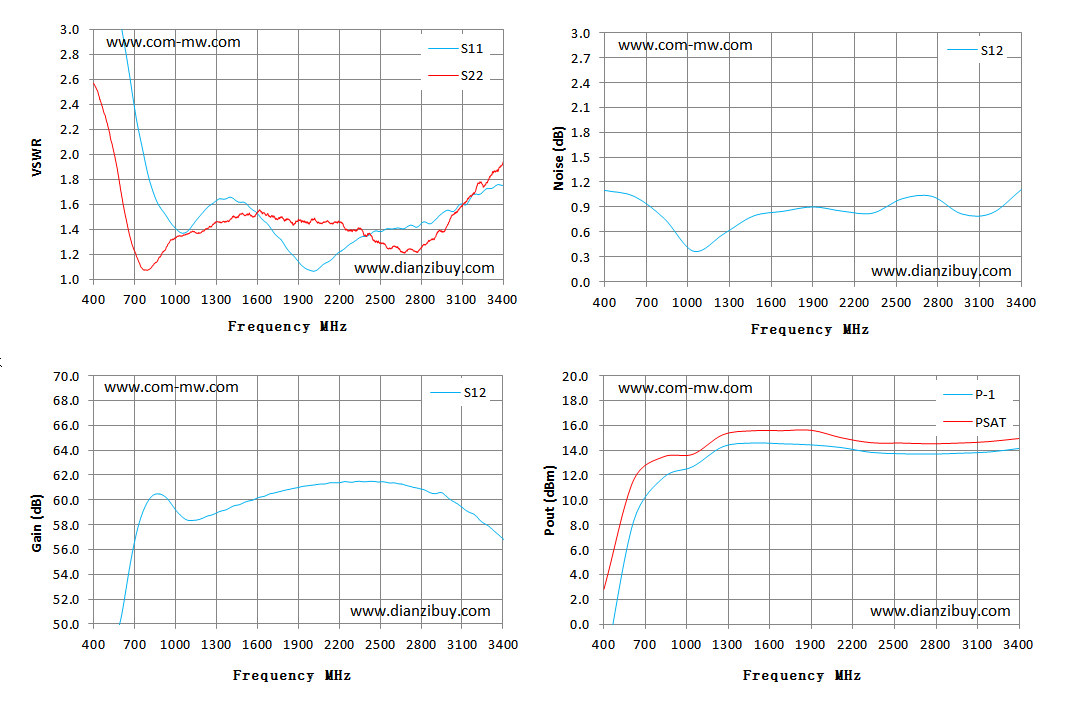

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
