Power amplifier
1~27GHz, Gain25dB, Psat22dBm, 2.92
- DPA8-1-30G-3537
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 27 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 20 | dBm | ||
| Psat | 22 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB | S21 Psat dBm |
| 1 | 2.1 | 1.48 | 29.01 | 25 | 26.3 |
| 2.93 | 2.02 | 1.21 | 30.08 | 24.1 | 25.9 |
| 4.86 | 2.25 | 1.14 | 30.13 | 24 | 25.8 |
| 6.79 | 1.78 | 1.22 | 29.42 | 23.7 | 25.5 |
| 8.71 | 1.38 | 1.33 | 28.81 | 23.8 | 25.6 |
| 10.64 | 1.54 | 1.56 | 29.62 | 23.6 | 25.2 |
| 12.57 | 1.53 | 1.46 | 30.28 | 23.3 | 24.7 |
| 14.5 | 1.15 | 1.23 | 30.71 | 22.7 | 24.3 |
| 16.43 | 1.54 | 1.32 | 30.42 | 22.7 | 24 |
| 18.36 | 1.31 | 1.77 | 29.28 | 22.7 | 23.7 |
| 20.29 | 1.37 | 1.56 | 29.94 | 22.6 | 23.7 |
| 22.21 | 1.58 | 1.66 | 31.35 | 21.1 | 23.1 |
| 24.14 | 1.58 | 1.27 | 29.66 | 20.7 | 22.3 |
| 26.07 | 1.84 | 1.62 | 27.38 | 21.3 | 23.1 |
| 28 | 2.27 | 2.17 | 26.88 | 21.8 | 23.3 |

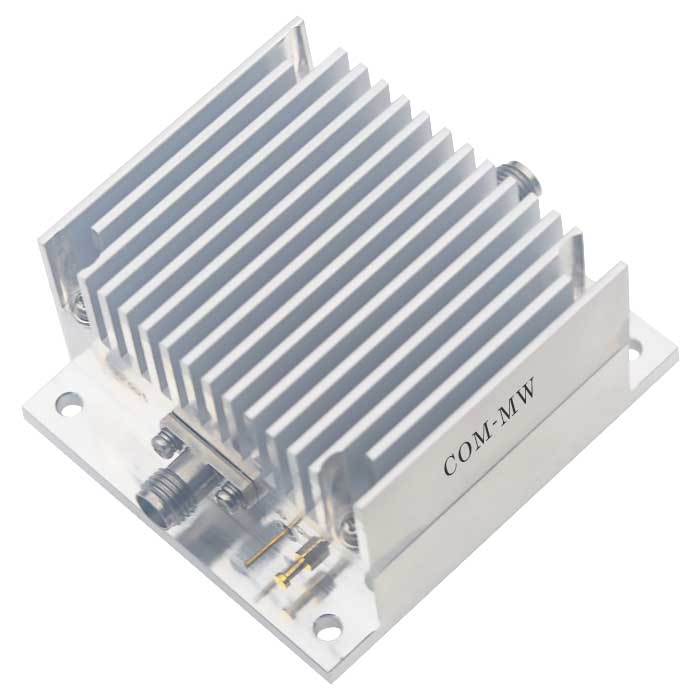

Reference picture

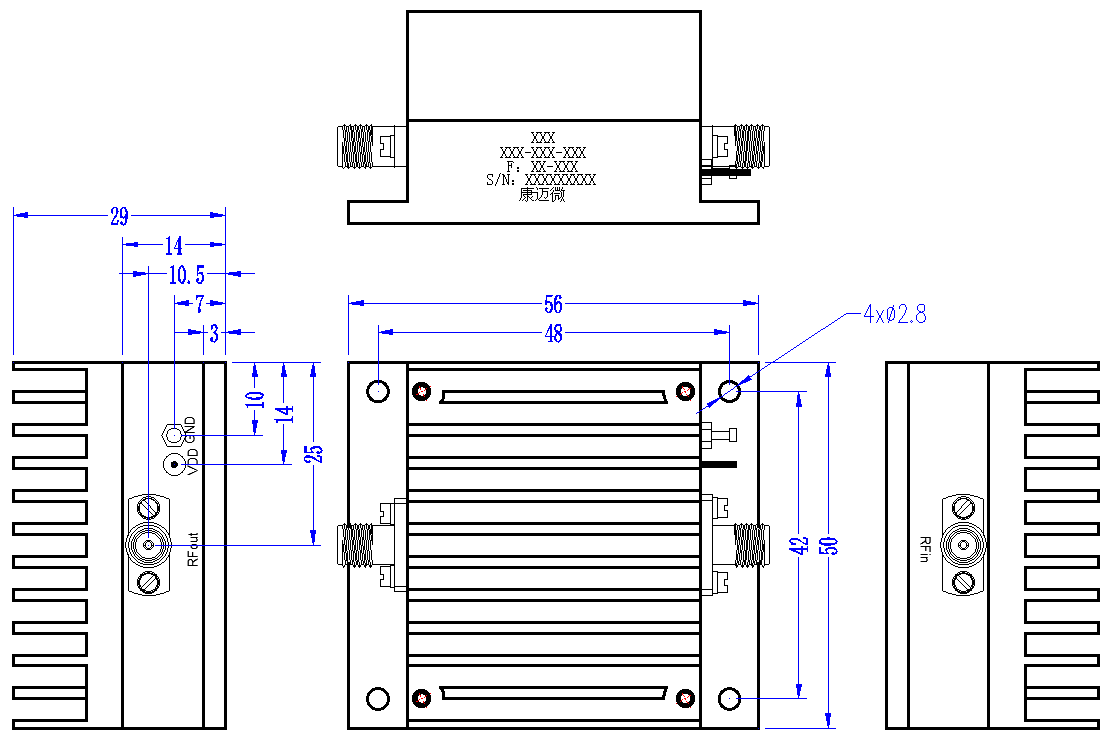

Configuration

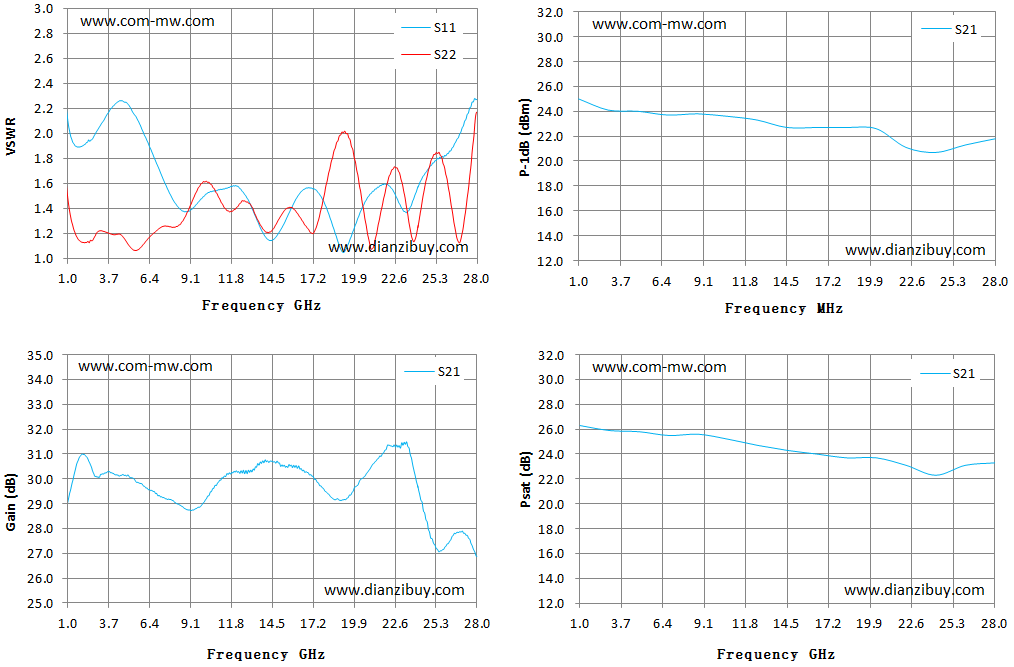

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
