Power amplifier
10~20GHz, Gain45dB, Psat22dBm, SMA
- DPA8-10-20G-9491
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 20 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 20 | dBm | ||
| Psat | 22 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 28 | dBm | ||
| Reverse isolation | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Pin Definition
| No. | definition | Note |
| 1 | VDD | +12V供电 |
| 2 | EN | NC(未使用) |
| 3 | GND | Ground |

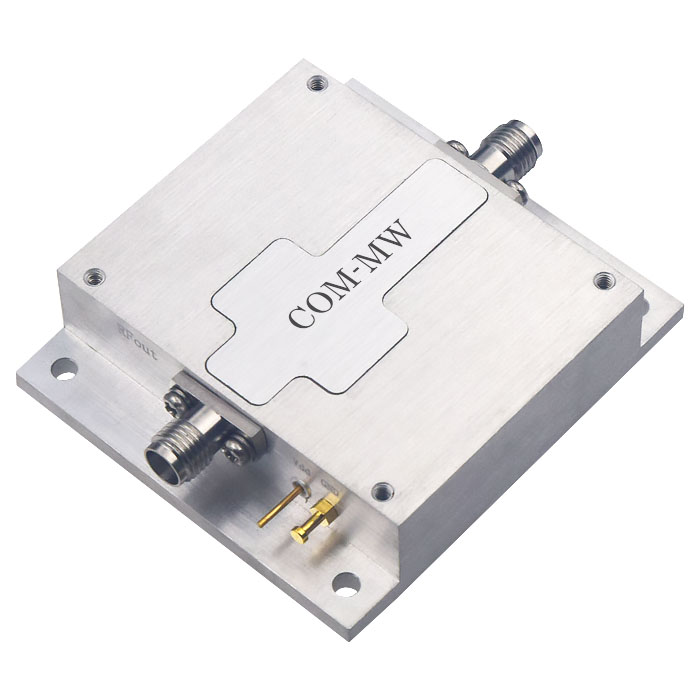

Reference picture

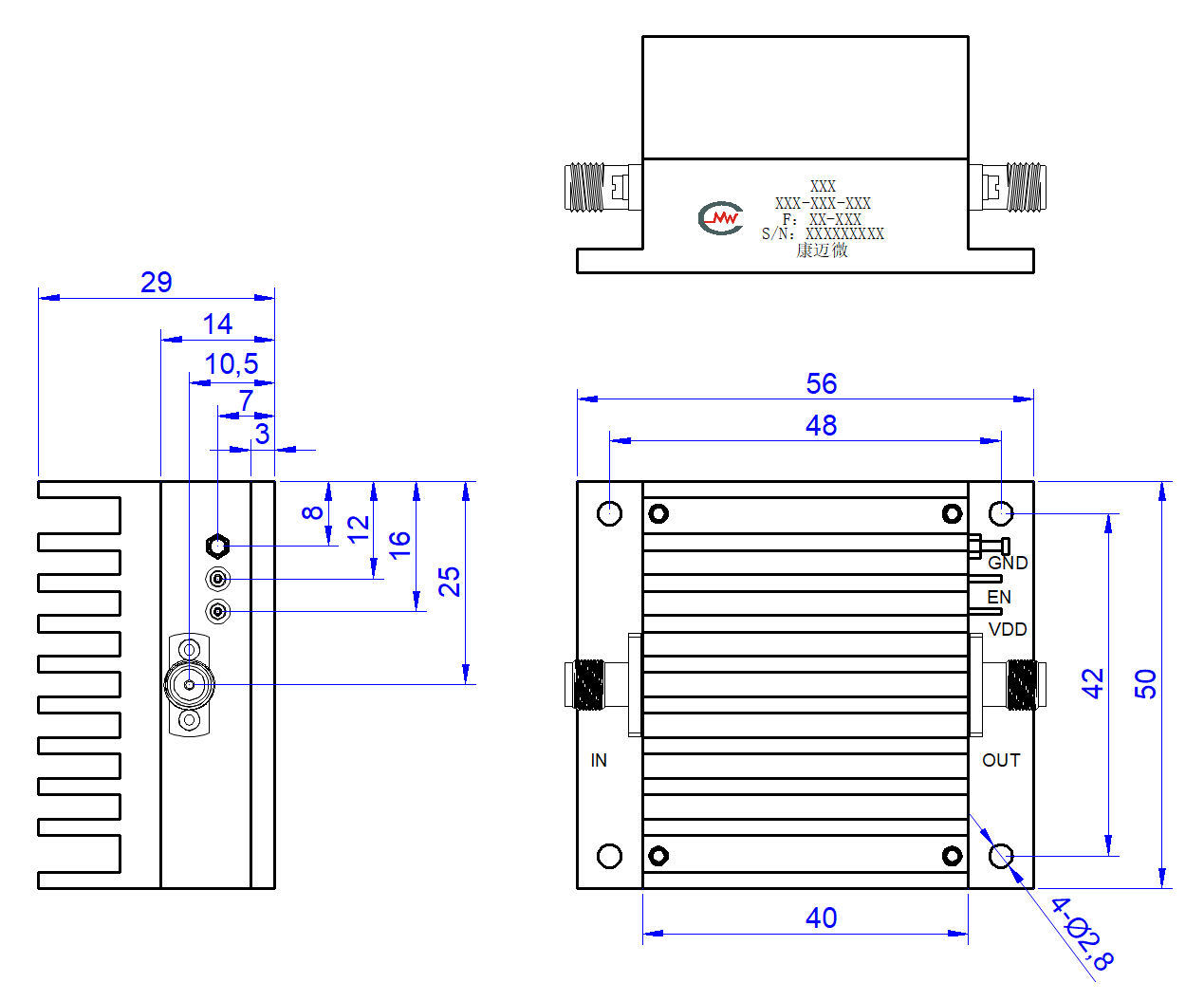

Configuration
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
