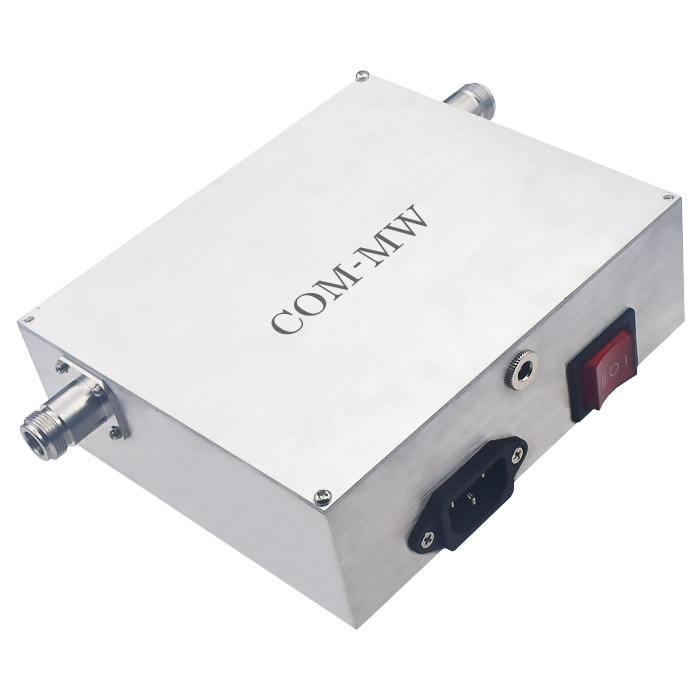

LNA

Frequency9.0~9.7GHz, Gain40dB, Noise figure3dB, P-1dB output power13dBm

  • DLNA8-9-9.7G-2757
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency9.0~9.7GHz
Gain40dB
Gain flatness±1dB
Noise figure3dB
VSWR2
P-1dB output power13dBm
滤波器抑制F0±1.3GHz>40dB

Product Application

ConnectorN -K
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Operation Temp.-20~+60℃ Design assurance
Characteristic12V供馈电盒，支持220V供电、直流供电和电池供电； 配电源适配器
输入滤波

Instructions for use

1Power supply method 1110-220V power input, standard AC interface, 12-15V/5W output.
2Power supply method 210 units, powered by No. 5 battery, with a 12-15V output.
3Power supply method 3DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter).
4Battery operating timeThe battery powered working time is approximately 6-10 hours, depending on the battery capacity and internal module power consumption.
5DC outputThe DC power supply voltage is determined by the internal template input voltage.
6Instructions for using the power switchThe power switch can only control 220V and the battery box, and there is no switch for DC power supply.
7Replacing the batteryReplace the battery and remove the screws from the battery cover.

Reference picture

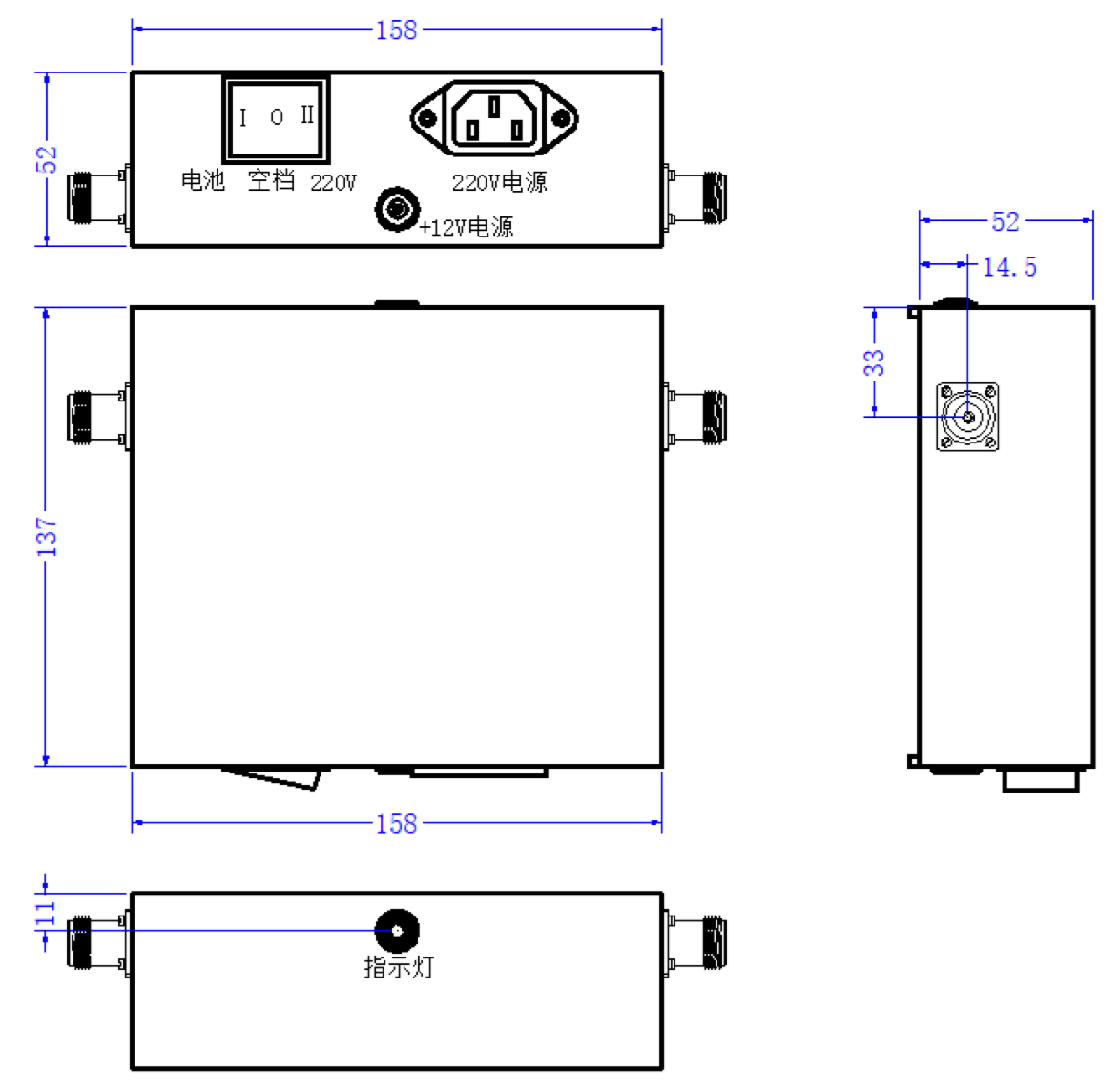

Configuration(mm)

Note

1Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2If the temperature is higher than 125℃, consult with us before ordering.
