Power amplifier

  • DPA12-80-1000-120
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

技术要求

参数 最小 典型 最大 单位
工作频率 80 ~ 1000 MHz
增益 40 dB
增益平坦度 ±3 dB
输入驻波 2
饱和功率 40 dBm

环境要求

接口形式SMA
接口材质不锈钢
阻抗50Ω
表面 本导
工作电压+28V
工作电流1200mA
工作温度-40~+70℃设计保证

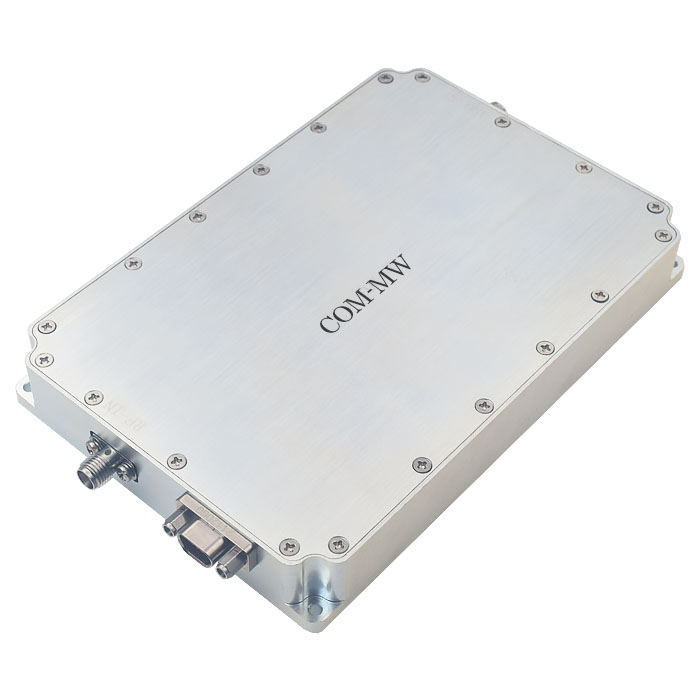

参考实物图

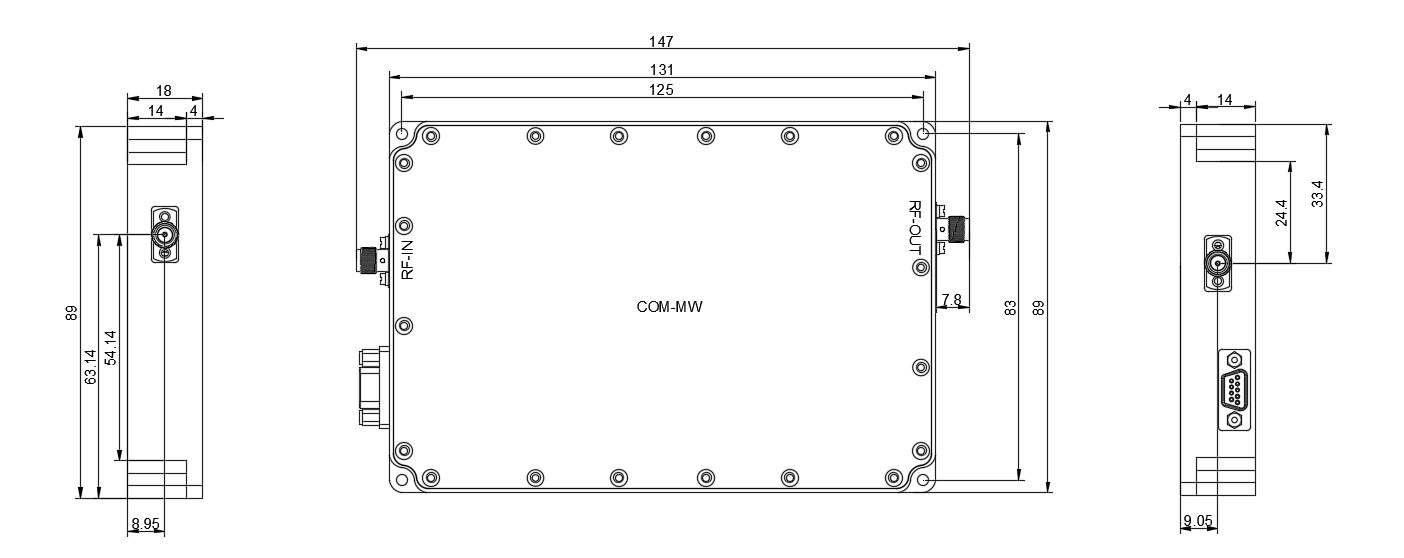

外形结构图

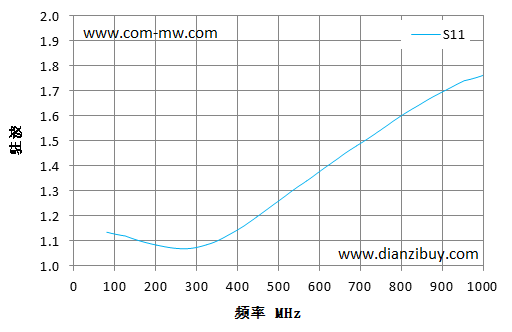

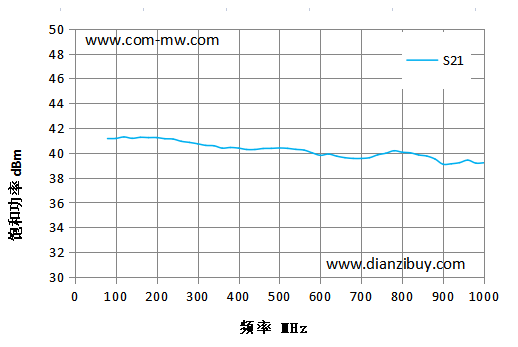

典型测试曲线图


注意事项

存储在湿度小于25%的环境,注意防尘防静电;
请注意产品的功耗,设计时考虑放大器散热问题;
产品整体温度大于125℃的情况下,请在订货前与我们协商;
清洗产品表面,请勿将产品浸泡清洗液中清洗。
