Disk cone antenna
Frequency30~500MHz, Gain-3dBi, 2.5, Vertical polarization, N-K
- ZPZ7-30-500-1184
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Disk cone antenna
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 500 | MHz |
| Gain | -3 | dBi | ||
| VSWR | 2.5 | |||
| Out-of-roundness | 3.0 | dB (Design assurance) | ||
| power | 100 | W (Design assurance) |
Other parameters
| Polarization | Vertical polarization |
| Connector | N-K |
| Connector material | Housing 304 stainless steel |
| Outline size | φ 200 * 1200mm folding state |
| Estimated weight | 3.2Kg |
| Surface | Grey |
| Work Temp. | -25~+70℃ Design assurance |
| Storage Temp. | -55~+70℃ Design assurance |
| Other | Antenna can be folded |

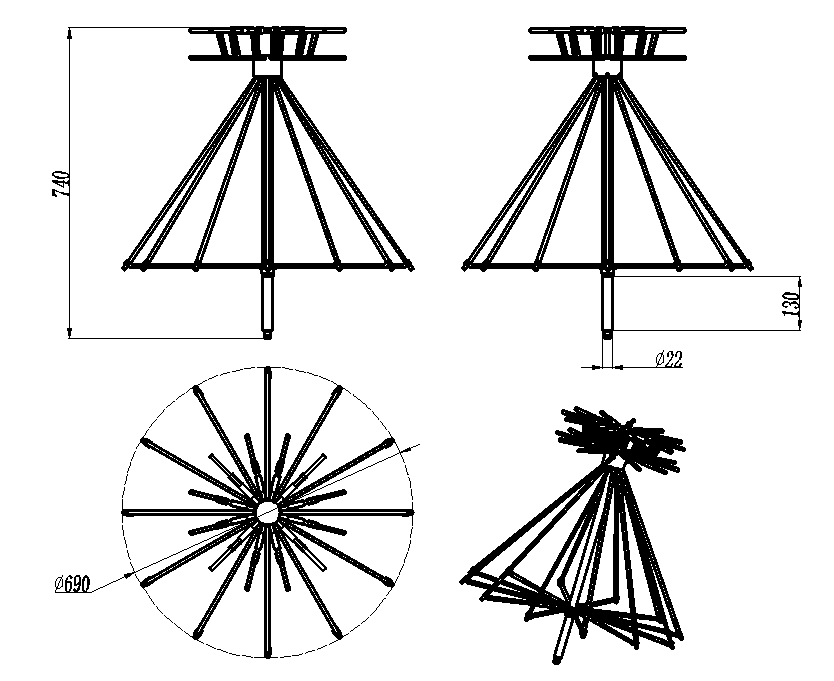

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

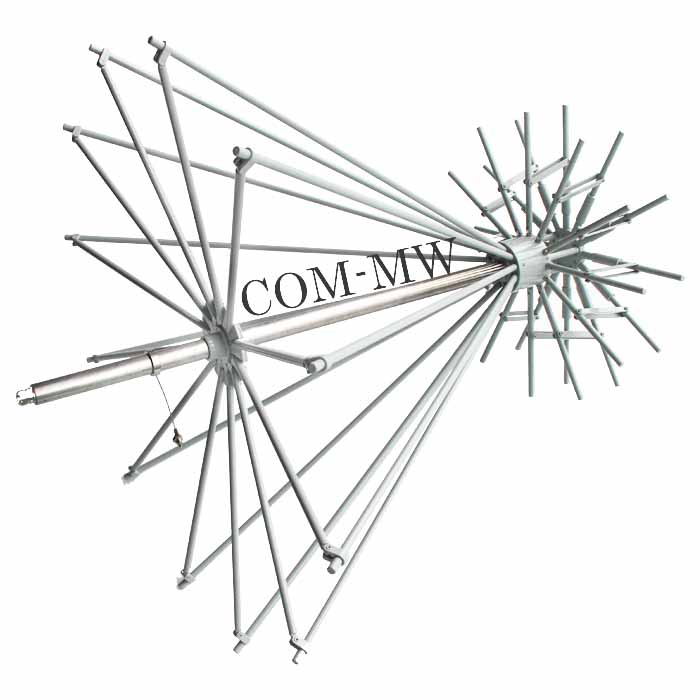

Reference picture

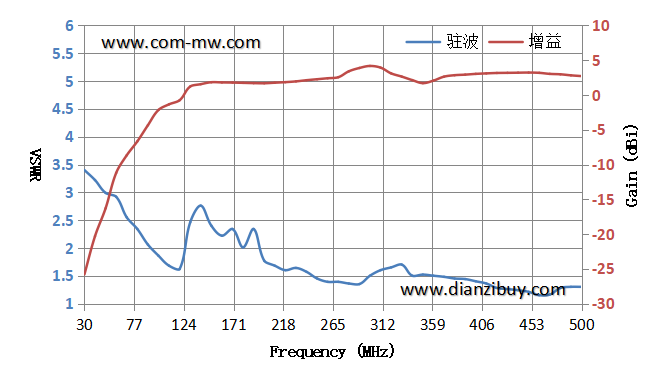

Typical test curve
