LNA
Frequency30~2000MHz, Gain30dB, Noise figuredB, P-1dB15dBm, SMA
- DLNA8-30-2000-2315
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 2000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | 4 | dB | |
| Noise figure | 2.2 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S12 Noise | P-1dB |
| 30 | 1.75 | 1.23 | 36.37 | 3.3 | 20.02 |
| 171 | 1.8 | 1.33 | 34.93 | 1.92 | 19.7 |
| 311 | 1.72 | 1.54 | 34.9 | 1.73 | 19.88 |
| 452 | 1.67 | 1.66 | 34.89 | 1.75 | 20.6 |
| 593 | 1.73 | 1.63 | 34.83 | 1.78 | 20 |
| 734 | 1.79 | 1.46 | 34.41 | 1.84 | 19.88 |
| 874 | 1.83 | 1.24 | 34.35 | 1.93 | 19.63 |
| 1015 | 1.81 | 1.07 | 34.19 | 1.95 | 19.43 |
| 1156 | 1.76 | 1.26 | 34.18 | 1.88 | 19.8 |
| 1296 | 1.72 | 1.53 | 34.24 | 1.87 | 19.85 |
| 1437 | 1.71 | 1.76 | 33.96 | 1.76 | 19.89 |
| 1578 | 1.73 | 1.88 | 33.95 | 1.67 | 19.68 |
| 1719 | 1.73 | 1.83 | 33.55 | 1.7 | 19.6 |
| 1859 | 1.72 | 1.67 | 33.26 | 1.84 | 19.58 |
| 2000 | 1.7 | 1.46 | 33.13 | 2.12 | 19.68 |

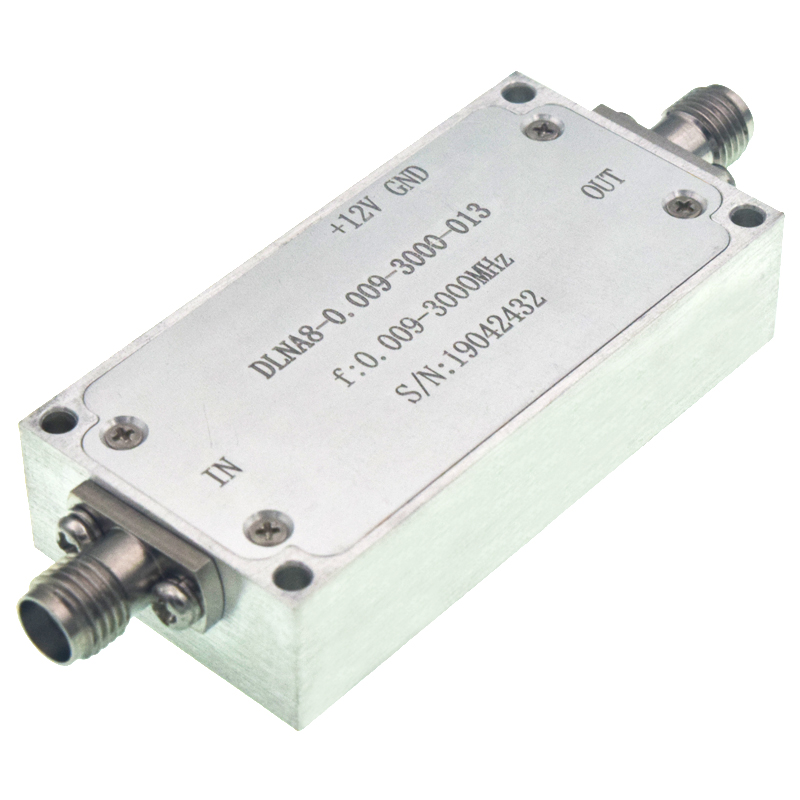

Reference picture
Configuration(mm)

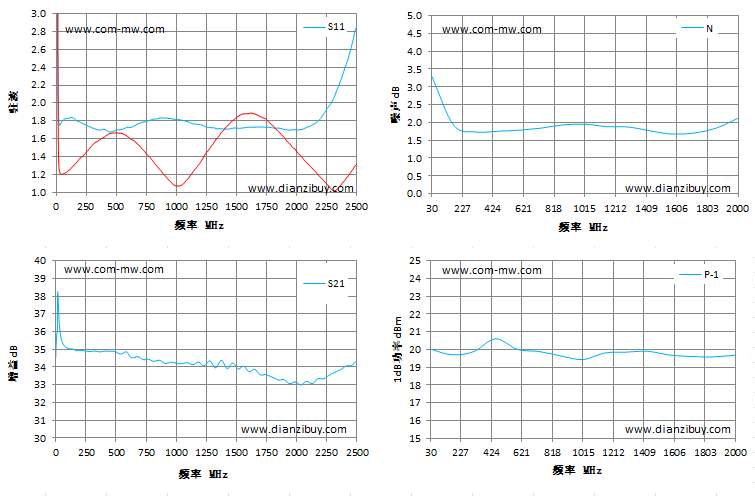

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
