Power amplifier
400~6000MHz, Gain40dB, P-1dB21dBm, SMA
- DPA8-400-6000-857
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 6000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 21 | dBm | ||
| Psat | 24 | dBm | ||
| OIP3 | 33 | dBm | ||
| Reverse isolation | 60 | dB |
Environmental
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB | S21 Psat dBm |
| 0.1 | 1.33 | 1.32 | 44.55 | 23.39 | 24.3 |
| 0.66 | 1.21 | 1.07 | 45.29 | 23.7 | 25.65 |
| 1.23 | 1.29 | 1.11 | 45.14 | 23.14 | 25.78 |
| 1.79 | 1.46 | 1.31 | 45.09 | 22.47 | 25.67 |
| 2.36 | 1.6 | 1.38 | 45.43 | 22.04 | 25.02 |
| 2.92 | 1.45 | 1.37 | 44.78 | 21.62 | 24.75 |
| 3.49 | 1.53 | 1.59 | 45.17 | 21.68 | 24.43 |
| 4.05 | 1.29 | 1.85 | 45.71 | 21.4 | 24.74 |
| 4.61 | 1.63 | 1.74 | 44.74 | 22.42 | 24.5 |
| 5.18 | 1.6 | 1.71 | 46.24 | 22.14 | 24.68 |
| 5.74 | 1.37 | 1.21 | 44.76 | 22.76 | 24.75 |
| 6.31 | 1.63 | 1.78 | 44.3 | 22.28 | 24.36 |
| 6.87 | 3.11 | 1.75 | 47.65 | 20.7 | 23.42 |
| 7.44 | 3.2 | 1.99 | 42.07 | 19.97 | 22.9 |
| 8 | 1.59 | 188.38 | 45.2 | 17.59 | 21.59 |
Reference picture
Configuration

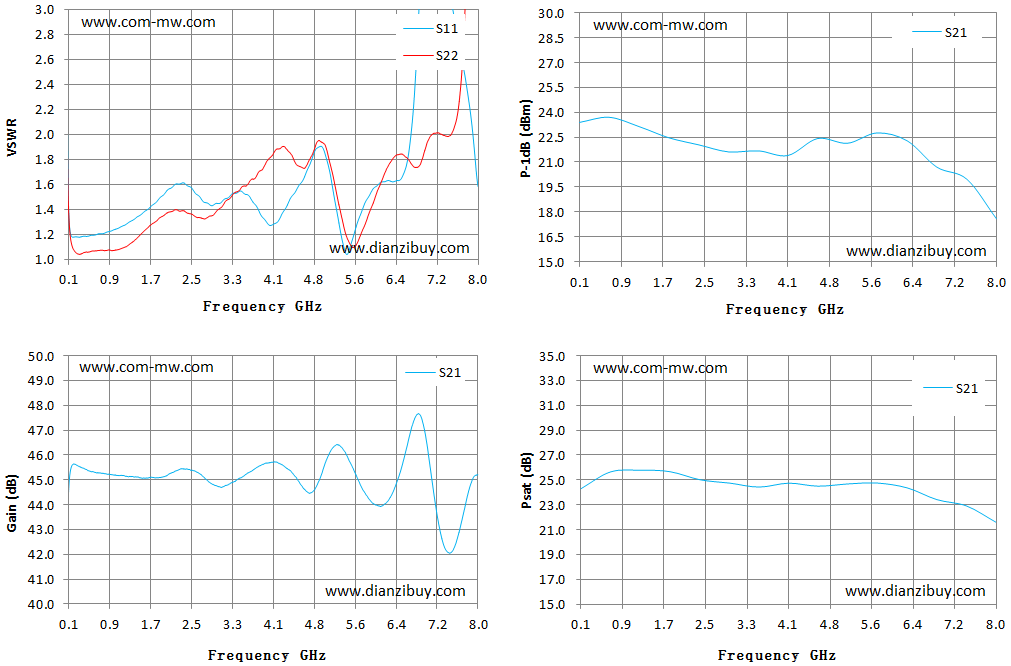

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
