Power amplifier
Frequency18~38GHz, Gain30, Pout（SAT）35dBm, Adapter power supply
- DPA8-18-38G-9567
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 38 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| Pout（SAT） | 35 | dBm | ||
| Max input power | 0 | dBm | ||
| phase noise degradation | 3 | dB |
Product Application
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -20~+40℃ Design assurance |
| Characteristic | Adapter power supply |
加电顺序
1、打开“ON/OFF”电源；
2、打开“”EN”开关。
Port Definition
| Port identification | definition | Illustrate |
| DC | DC power input | +18V@3A适配器供电，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | |
| EN | Enable control switch | After activation, the light will be on, and the internal module will enter a static working mode. |
Parts list
| 1 | Standard configuration | Equipped with a power adapter |

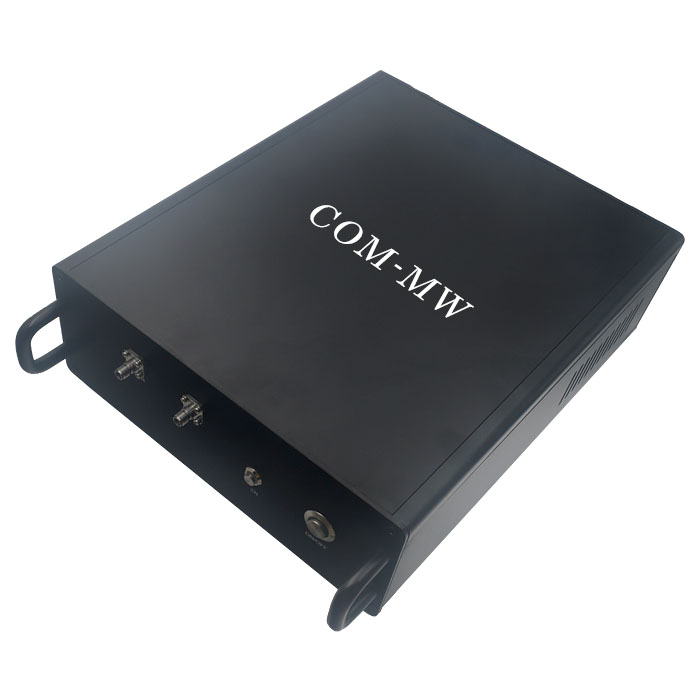

Reference picture

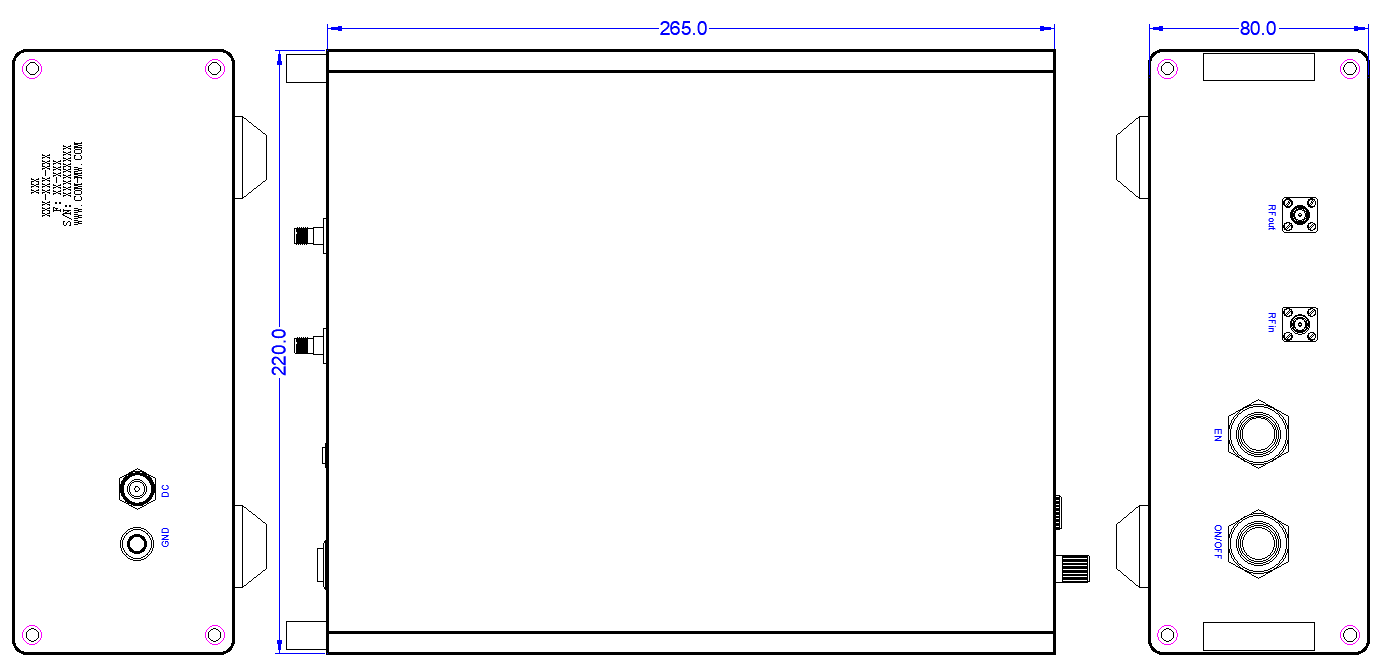

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | Please strictly follow the power-on sequence when applying power, and reverse the operation when turning off the power. |
