LNA
20~6000MHz, Gain42dB, Noise figuredB, P-1dB26dBm, SMA
- DLNA8-1-6000-9490
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 6000 | MHz |
| Gain | 42 | 45 | dB | |
| Gain flatness | ±3 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 26 | dBm | ||
| Psat | 28 | dBm | ||
| Max input power | 10 | dBm | ||
| OIP3 | 30 | dBm |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 700mA |
| Operation Temp. | -30~+60℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | P-1 dBm | Psat dBm |
| 0.02 | 3.87 | 1.90 | 48.39 | 3.50 | 28.07 | 29.39 |
| 0.59 | 1.13 | 1.70 | 48.24 | 1.03 | 28.00 | 29.09 |
| 1.16 | 1.22 | 1.76 | 47.93 | 1.18 | 28.18 | 29.17 |
| 1.73 | 1.34 | 1.80 | 47.52 | 1.12 | 28.30 | 29.22 |
| 2.30 | 1.50 | 1.73 | 47.40 | 1.41 | 28.40 | 29.17 |
| 2.87 | 1.57 | 1.65 | 47.05 | 1.30 | 28.59 | 29.18 |
| 3.44 | 1.63 | 1.59 | 46.74 | 1.23 | 28.54 | 29.18 |
| 4.01 | 1.72 | 1.53 | 46.44 | 1.53 | 28.82 | 29.31 |
| 4.58 | 1.79 | 1.42 | 45.99 | 1.64 | 28.54 | 29.16 |
| 5.15 | 1.95 | 1.34 | 45.35 | 1.65 | 28.71 | 29.22 |
| 5.72 | 2.18 | 1.25 | 44.84 | 2.08 | 28.80 | 29.26 |
| 6.29 | 2.40 | 1.16 | 43.88 | 2.33 | 28.97 | 29.34 |
| 6.86 | 2.80 | 1.14 | 42.08 | 2.39 | 29.07 | 29.41 |
| 7.43 | 3.46 | 1.15 | 39.66 | 2.99 | 28.89 | 29.32 |
| 8.00 | 4.17 | 1.12 | 37.01 | 3.66 | 28.74 | 29.29 |

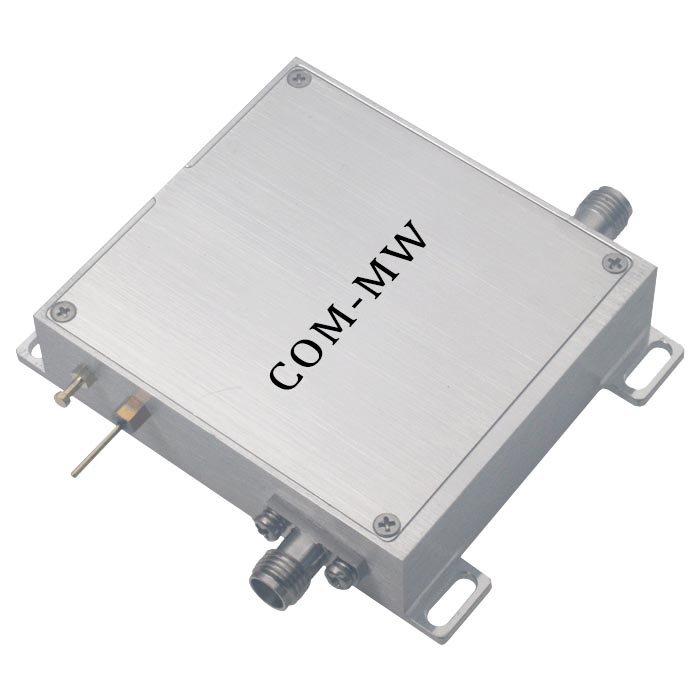

Reference picture

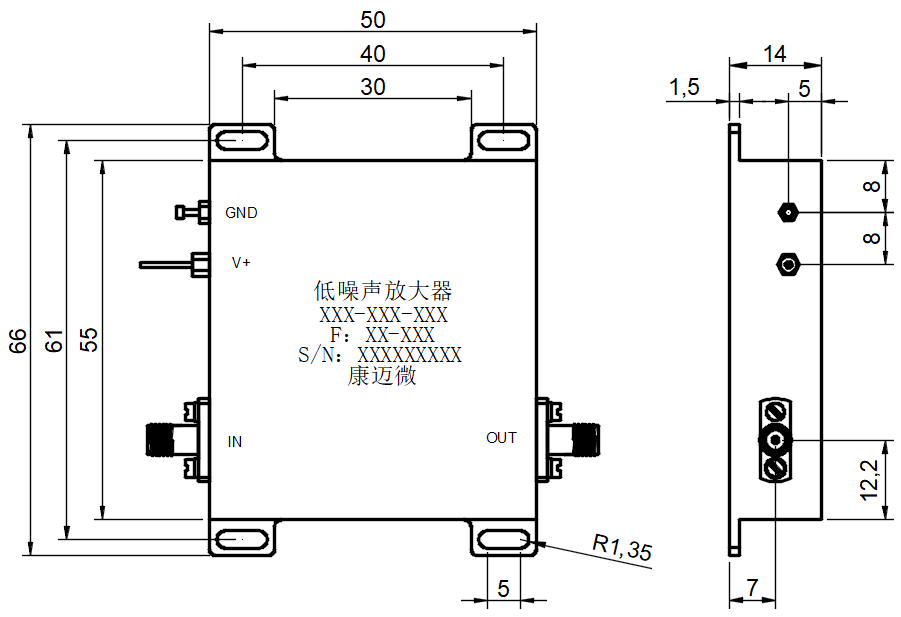

Configuration(mm)

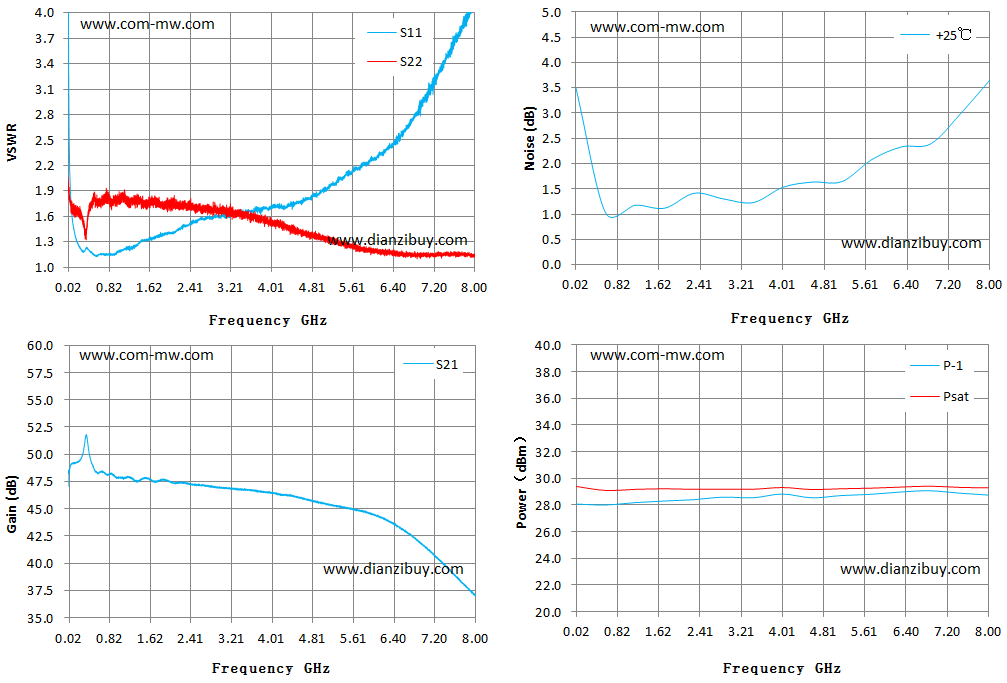

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
