LNA

50~4000MHz, Gain20dB, Noise figure2.9dB, P-1dB20dBm, N-K

  • DLNA8-50-4000-2542
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS

Main specifications

ParametersMinTypicalMaxUnits
Frequency50~4000MHz
Gain20dB
Gain flatness±2dB
Noise figure2.9dB
VSWR2.0
P-1dB20dBm
Max input power10dBm

Other parameters

ConnectorN-K
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainS21 NoiseP-1dB
501.431.8226.571.920.4
3681.251.0825.681.421.2
6861.191.2225.621.3920.51
10041.171.3625.611.3420.48
13211.231.4925.751.4220.52
16391.371.6425.851.620.5
19571.511.7825.841.4820.71
22751.591.8625.81.4220.8
25931.541.9125.81.6320.75
29111.391.8925.621.4720.73
32291.211.7925.281.5121.12
35461.081.7624.491.6919.73
38641.11.6523.821.9220.18
41821.171.5523.362.0320.33
45001.151.5723.132.0520.03

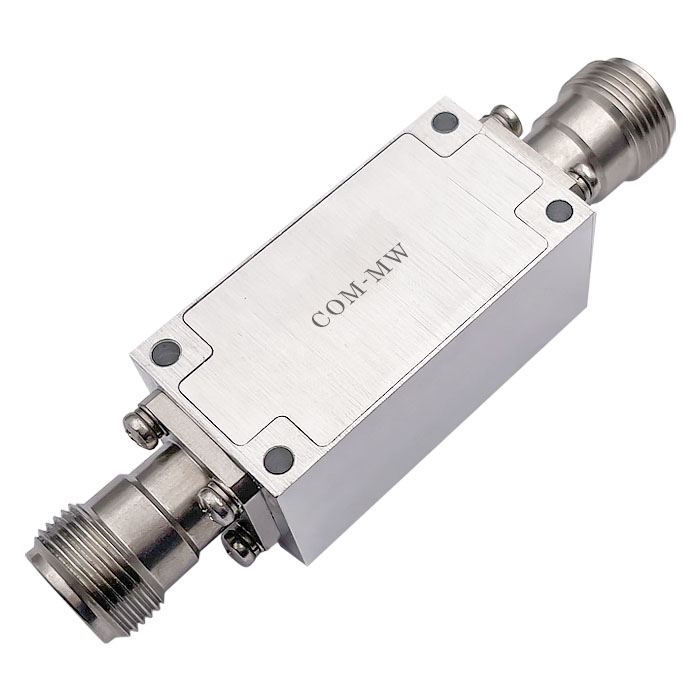

Reference picture

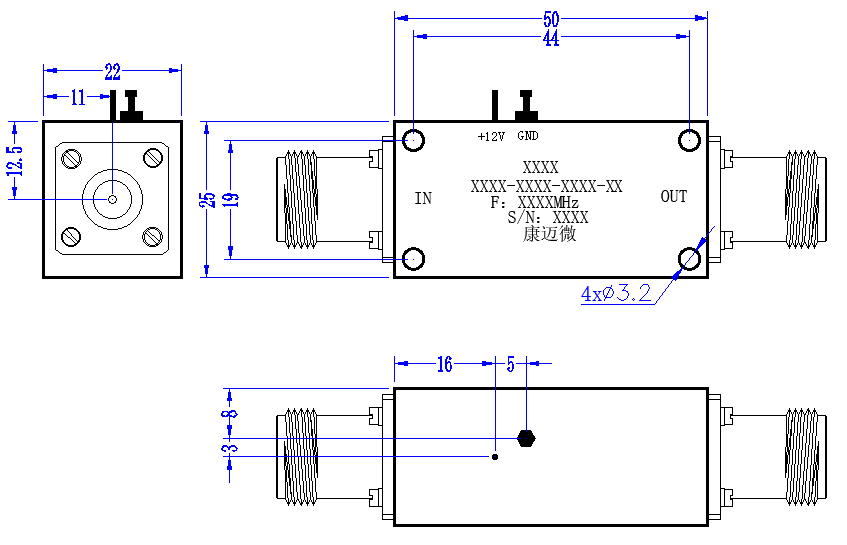

Configuration(mm)

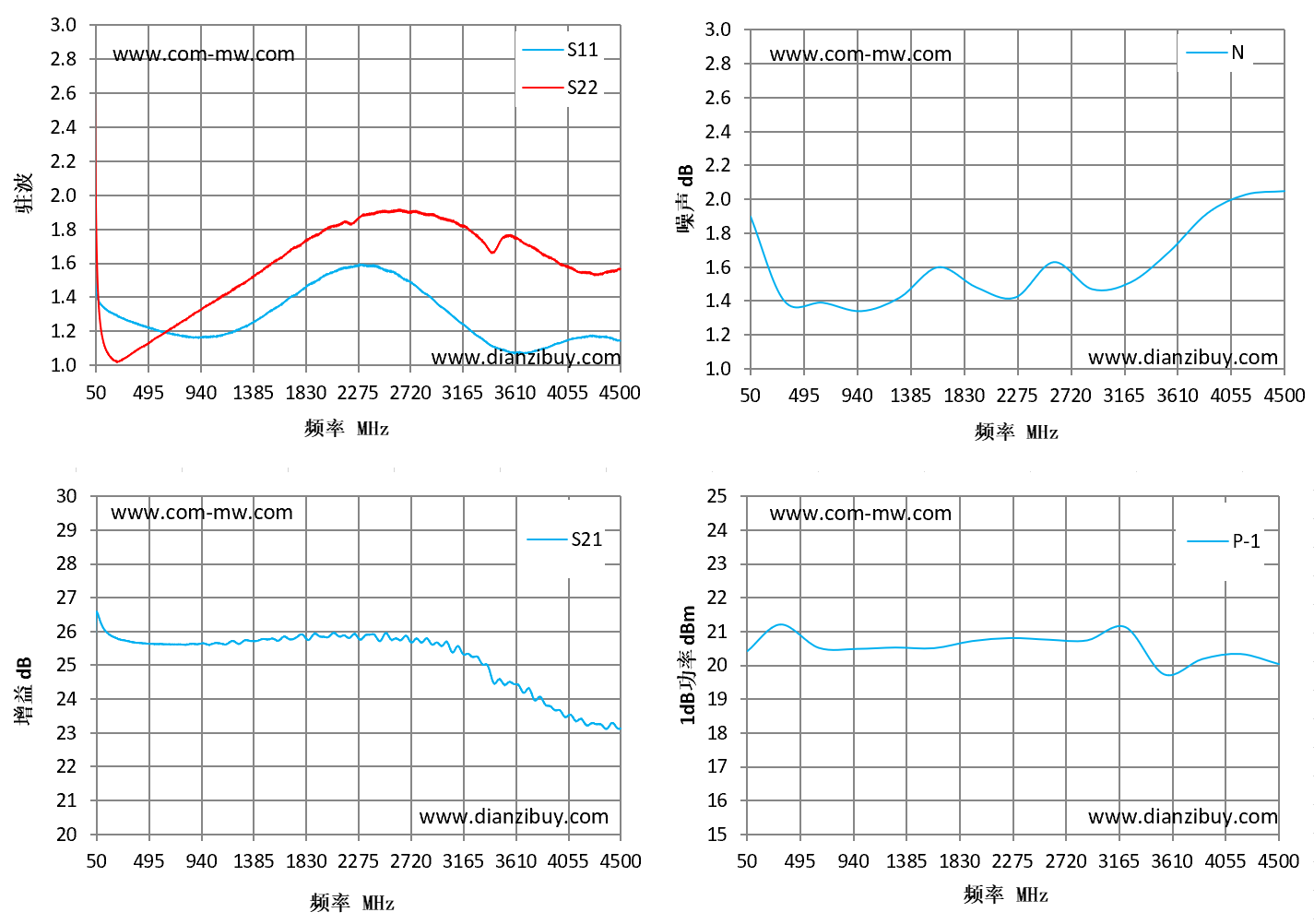

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
