LNA
18000~40000MHz, Gain50dB, Noise figure3.5dB, P-1dB10dBm, 2.92
- DLNA8-18-40G-4063
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18000 | ~ | 40000 | MHz |
| Gain | 50 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 3.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12~15V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Powered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture) |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 16 | 1.42 | 1.16 | 53.50 | 15.1 | 16.3 | 3.01 |
| 17.86 | 1.18 | 1.11 | 56.94 | 15.7 | 17.1 | 2.73 |
| 19.71 | 1.28 | 1.45 | 58.17 | 16.1 | 17.5 | 2.99 |
| 21.57 | 1.31 | 1.98 | 58.23 | 15.5 | 17.3 | 2.93 |
| 23.43 | 1.24 | 2.29 | 58.02 | 16 | 17.7 | 3.16 |
| 25.29 | 1.1 | 2.1 | 58.29 | 16.4 | 17.9 | 3.13 |
| 27.14 | 1.12 | 2.1 | 57.18 | 17 | 18.3 | 3.19 |
| 29 | 1.16 | 2.04 | 57.17 | 17.1 | 17.9 | 3.47 |
| 30.86 | 1.26 | 2.22 | 55.64 | 17.6 | 18.5 | 3.5 |
| 32.71 | 1.18 | 1.86 | 56.42 | 16.8 | 17.8 | 3.31 |
| 34.57 | 1.28 | 1.61 | 57.23 | 16.5 | 17.5 | 3.36 |
| 36.43 | 1.7 | 2.27 | 58.97 | 15.8 | 17.1 | 3.25 |
| 38.29 | 1.32 | 1.41 | 58.02 | 15.5 | 17.1 | 2.97 |
| 40.14 | 1.17 | 1.66 | 57.78 | 14.9 | 16.7 | 2.75 |
| 42 | 2.38 | 4.33 | 54.37 | 16.5 | 17.8 | 2.78 |

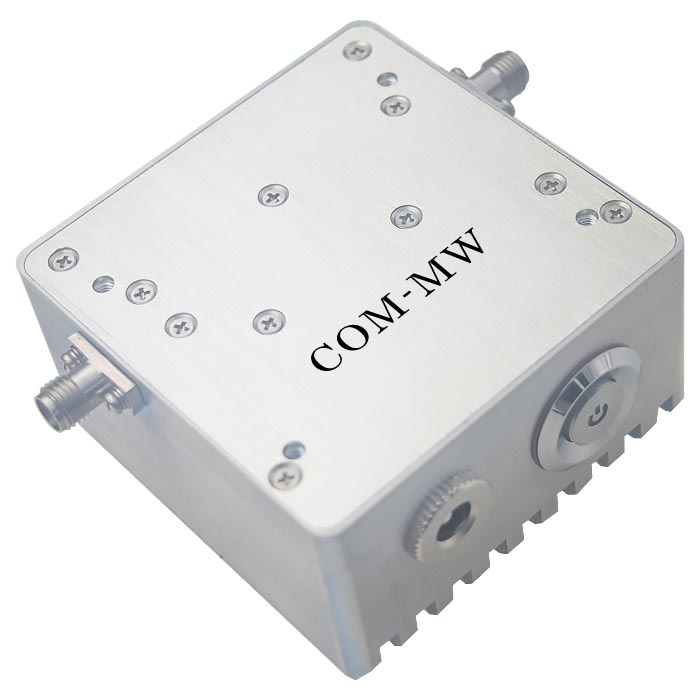

Reference picture

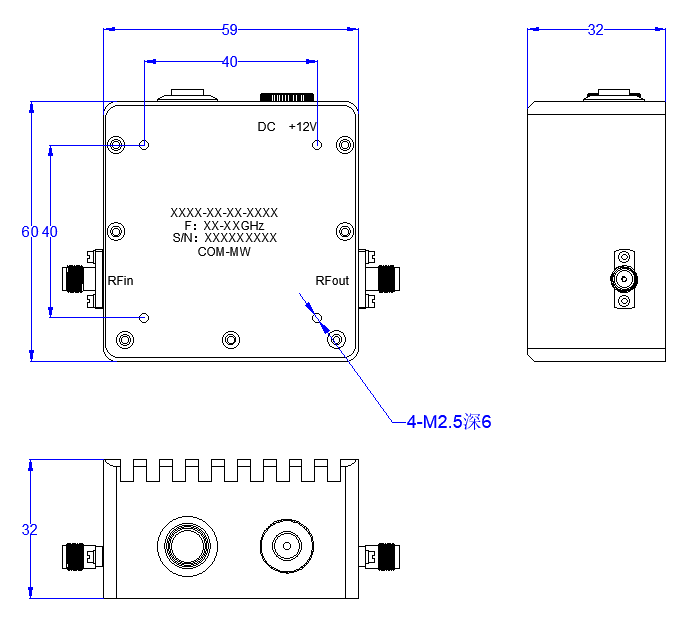

Configuration(mm)

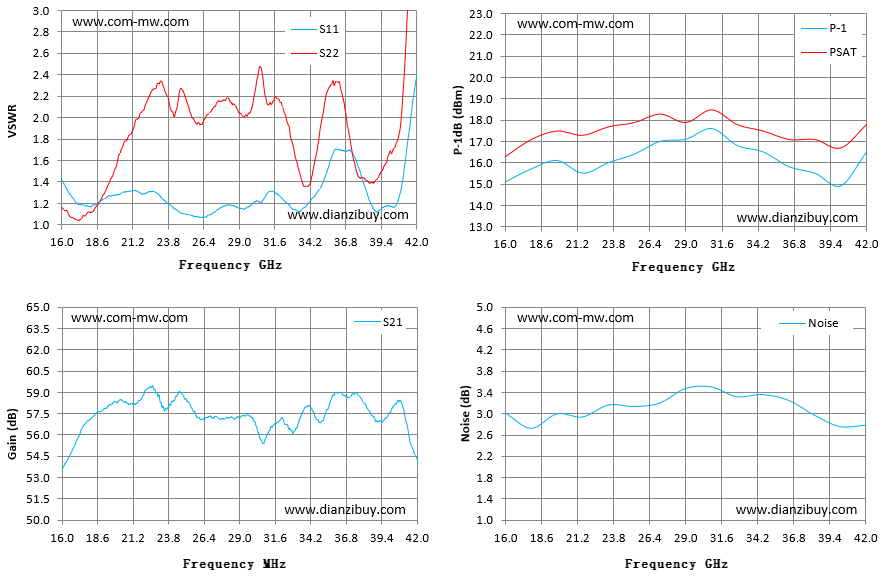

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
